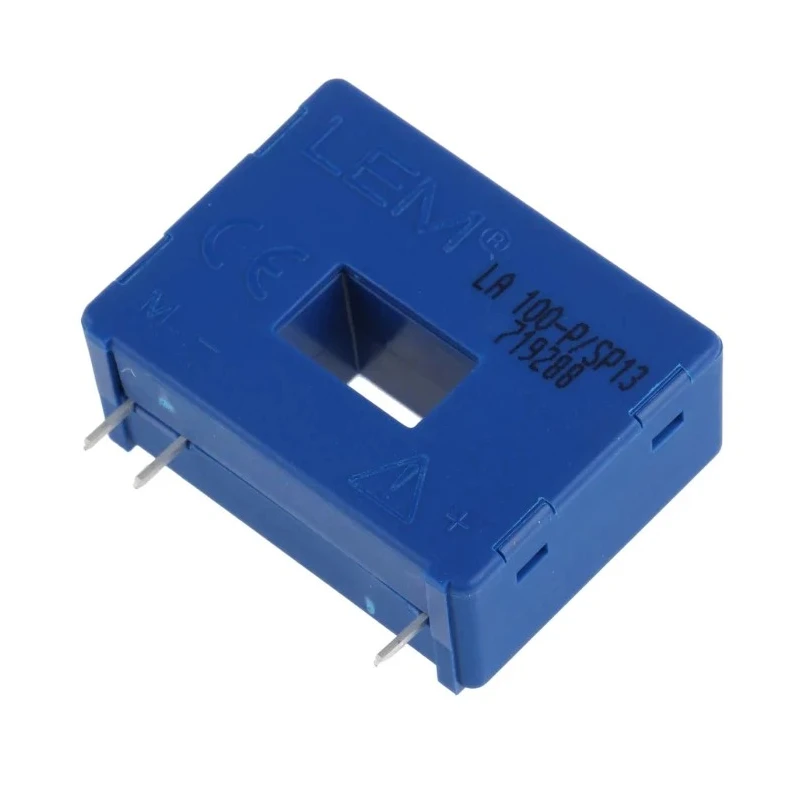

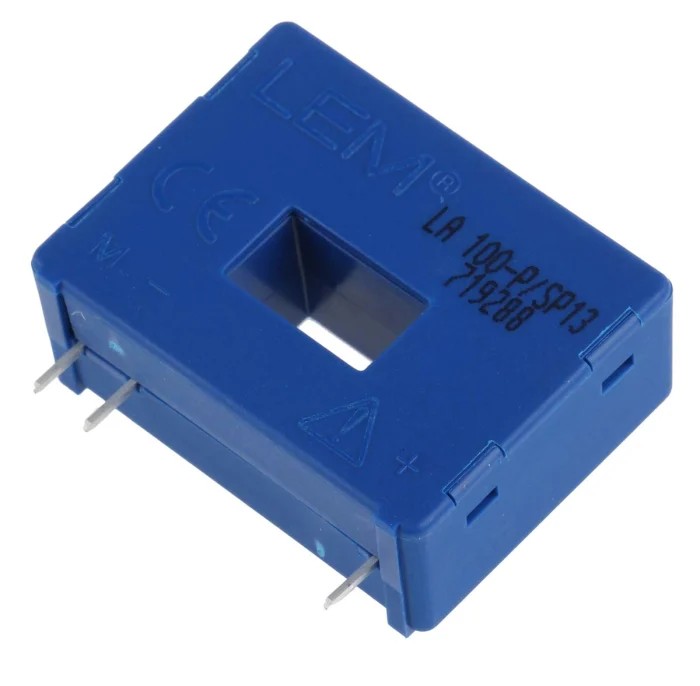

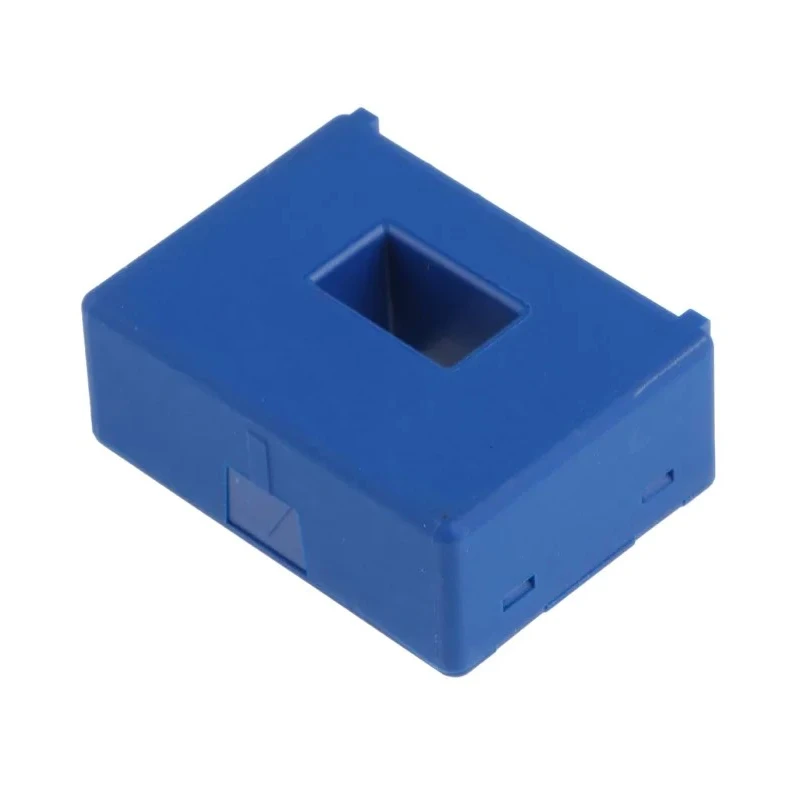

LEM LA 100-P/SP13 Series Current Transformer 160 A 1:1 Turns Ratio 12 V, 15 V 15mm Bore SP13

LEM SP13 Series Current Transformer model LA 100-P/SP13 is designed for precise and reliable current sensing up to 160 A with a 1:1 turns ratio and a 15 mm bore. It operates with supply voltages of 12 V and 15 V, making it versatile for various power monitoring applications.

This compensated closed-loop Hall effect current transducer measures continuous, alternating, pulsed, and mixed currents with excellent dynamic response and low temperature drift. Its galvanic isolation between the input and measuring circuit ensures high measurement accuracy and operator safety.

The device features a 3-pin terminal configuration and is designed for PCB mounting. Its body is constructed from plastic material complying with the UL 94-V0 flammability standard, ensuring robust electrical insulation and fire resistance.

Operating temperature ranges from -25°C to 70°C allow use in industrial, laboratory, and process control applications. With a maximum operating frequency of 200 kHz, the transformer can handle rapid current changes common in automation and control systems.

Compensated closed-loop Hall effect technology provides accurate current sensing. Good linearity and low temperature drift enable reliable long-term operation. Galvanic isolation protects measurement circuits from high voltages.

Plastic body material meets UL 94-V0 standard for flame retardancy. PCB mount type suitable for compact instrumentation layouts. Wide operating temperature ensures adaptability to harsh environments. High operating frequency enables dynamic current measurement.

3-pin terminals facilitate secure and easy installation.

This current transformer is ideal for industrial automation systems, process control, power monitoring, and electrical testing where precise current measurement and signal integrity are paramount.

LEM brand products offer trusted quality and performance in electrical components for automation and control gear industries. Explore more high-quality Current Transformers and automation components on EnvMart for advanced electrical and industrial applications.
