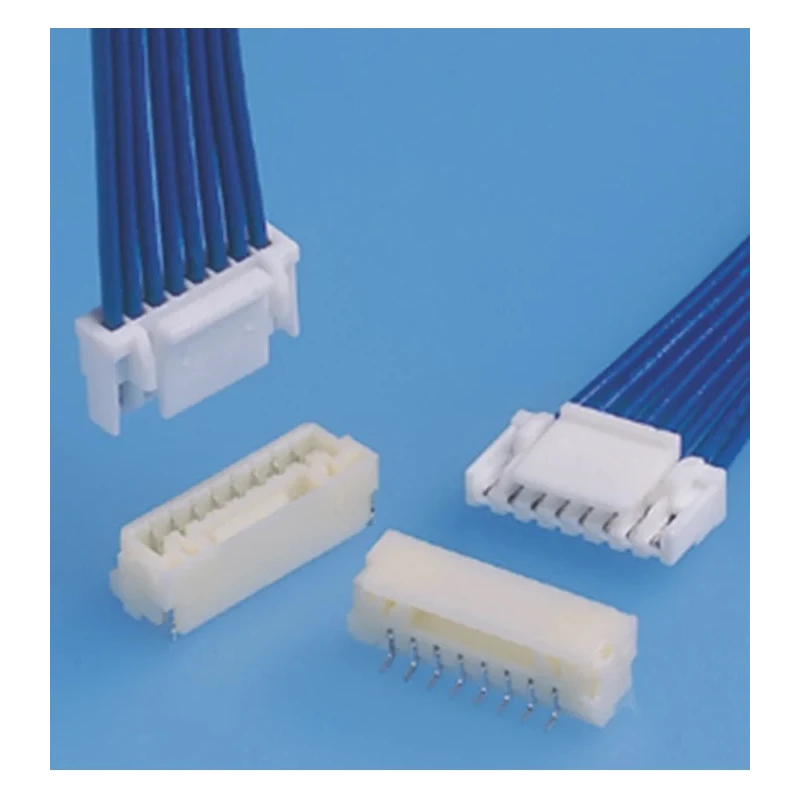

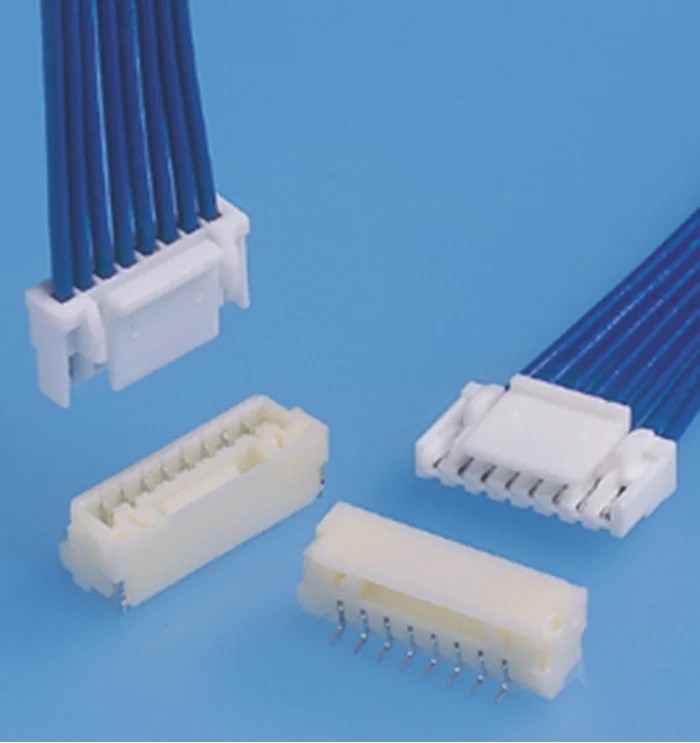

JST GH Female Connector Housing 1.25mm Pitch 11 Way 1 Row Straight GHR-11V-S

Free Delivery in India | Lowest Global Shipping Charges

JST GH Female Connector Housing 1.25mm Pitch 11 Way 1 Row Straight GHR-11V-S



Category PCB Connector Housing Brand JST Condition New

Specifications

Country of Origin	Japan
Brand	JST
Orientation	Straight
Length	15mm
Model	GHR-11V-S
Width	4.15mm
Mount Type	Cable
Housing Material	Polybutylene Terephthalate
Series	GH
Number of Rows	1
Pitch	1.25mm
For Use With	GH Connectors
Number of Contacts	11
Connector Gender	Female

Key Features

Secure locking structure ensures firm mating and connection integrity.
Contact lock structure prevents accidental disengagement and improves reliability.
Designed for easy mating operation with low insertion force.
Prevents contact deformation for durability and consistent performance.
Features a clear engagement click sound for tactile feedback during assembly.
Optimized for wire-to-board use in PCB, electronic modules, and equipment.
Single row, straight orientation maximizes compatibility and installation ease.
Constructed from polybutylene terephthalate for robust housing and electrical insulation.

Product Description

The JST GHR-11V-S GH Female Connector Housing is an advanced wire-to-board connector designed for various electronic and industrial applications requiring compact and reliable connectivity. With a pitch of 1.25 mm and an 11-way configuration, this connector housing provides a secure interface for signal and power transmission in PCB assemblies.

This connector employs a secure locking structure, ensuring firm mating and connection reliability. Its contact lock structure is engineered to prevent accidental disengagement, thereby enhancing safety and operational stability in demanding environments. The connector is designed for low insertion force, making assembly operations both efficient and ergonomic, especially in high-volume manufacturing.

The prevention of contact deformation is a notable benefit, helping to preserve connector integrity and electrical performance over extended usage cycles. For user feedback, the device delivers a clear engagement 'click' that confirms successful mating, simplifying quality checks on assembly lines. The single row, straight orientation of the housing maximizes compatibility with PCB layouts, allowing for straightforward installation and integration.

Its housing is fabricated from polybutylene terephthalate, offering robust mechanical strength and superior electrical insulation. The connector is specifically suitable for use with GH connectors and is optimized for cable-mount applications, making it ideal for both prototype and production environments.

Common use cases include industrial control hardware, laboratory instrumentation, consumer electronics, and automotive PCB integration. It is widely employed in sectors such as electronics manufacturing, automation systems, instrumentation, and sensor modules.
