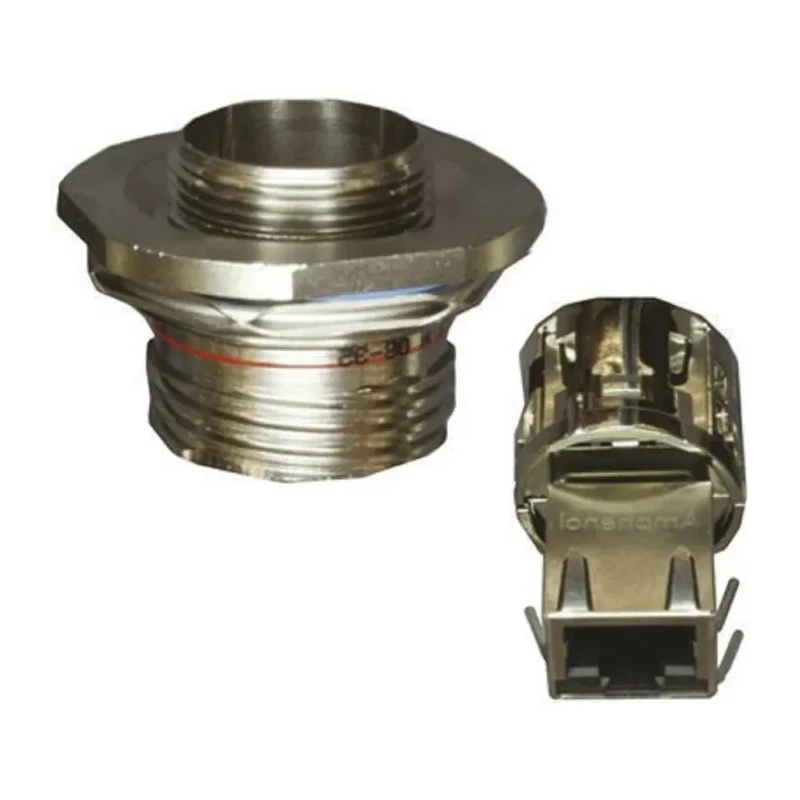

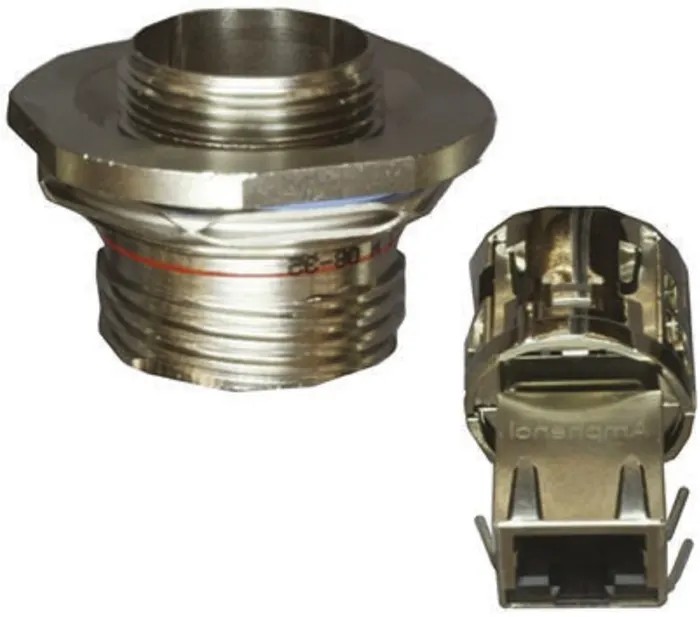

Amphenol Socapex RJFTV Series RJ45 Shielded Female Panel Connector Cat5e 1 Port 8 Way RJ45

Amphenol Socapex RJFTV71N is a RJFTV Series RJ45 Female Connector designed for panel mounting applications in industrial and harsh environmental settings. This shielded, Cat5e rated connector supports Ethernet communication standards including 10 BaseT, 100 BaseTX, and 1000 BaseT networks.

Crafted with copper alloy contacts plated in gold, it provides reliable and corrosion-resistant electrical performance. The RJFTV71N connector is rated IP68, which ensures waterproof and dustproof performance, capable of withstanding submersion in water up to 1.5 meters, delivering outstanding durability for outdoor and rugged indoor use.

Its operating temperature ranges from -40°C to 85°C, suitable for demanding applications such as railway signaling, radar stations, military communication systems, marine environments, and automotive systems. It features solder termination and accommodates cables with diameters from 6 mm to 13 mm.

The straight orientation and shielded design reduce electromagnetic interference and provide a secure connection. The RJStop system integrated into the RSJFTV connectors allows the use of standard RJ45 cordsets while maintaining protection against shocks, dust, and fluids.

Additional accessories including metallic plug caps and panel gaskets enhance environmental sealing and mechanical protection. This connector does not have hazardous area certifications or other formal approvals but meets industrial standards for durability and reliability.

Rated IP68 waterproof and dustproof. Supports Cat5e Ethernet networks with shielded connectivity. Copper alloy contacts with gold plating for reliable conductivity. Panel mount type with 1 port and 8 ways available. Operating temperature range from -40°C to 85°C.

Compatible with cables 6 mm to 13 mm diameter. Shock, vibration, and traction resistant design. RJStop system allows use of standard RJ45 cordsets in metallic plug. Suitable for railways, military, marine, and automotive applications.

Additional accessories available to enhance environmental protection.

This Amphenol Socapex RJFTV71N connector is ideal for industrial Ethernet connections where environmental and mechanical robustness are critical. It supports reliable data transmission in harsh environments such as railways, radar installations, battlefield communications, and naval systems.
