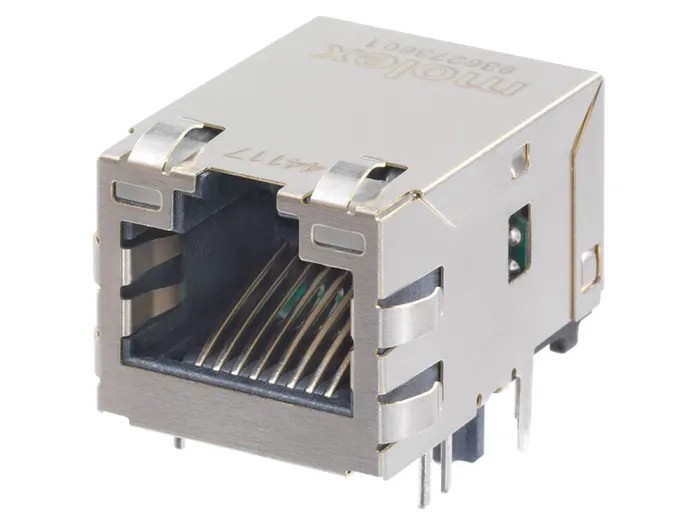

Molex 93627 Series RJ45 Connector Female Panel Mount Shielded Right Angle 2 Port 8 Way
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Right Angle |
| Length | 15.76mm |
| Model | RJ45 |
| Depth | 21.4mm |
| Connector Type | Jack |
| Number Of Ways | 8 |
| Width | 14.1mm |
| Mount Type | Panel Mount |
| Contact Material | Phosphor Bronze |
| Series | 93627 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Shield Type | Shielded |
| Contact Plating | Gold over Nickel |
| Connector Gender | Female |
| Ethernet Connector Type | RJ45 |
Key Features
- This RJ45 connector supports 2 ports with 8 ways for data transmission.
- Panel mount design provides easy installation and secure mounting.
- Shielded type offers protection against electromagnetic interference.
- Right angle orientation optimizes board layout and space efficiency.
- Constructed with phosphor bronze contacts plated with gold over nickel for durability.
- Equipped with green-green LEDs for link/activity indication.
- Operating temperature ranges from 0°C to 70°C for standard industrial conditions.
- Magnetic integrated for enhanced signal integrity.
Product Description
Molex 93627-3601 is a high-quality RJ45 female Ethernet connector from the 93627 series designed for panel mount applications. This right angle, shielded connector features 2 ports with 8 ways, making it ideal for industrial and commercial Ethernet networking environments requiring reliable data transfer and EMI shielding.
The connector employs phosphor bronze contact material with gold over nickel plating, ensuring corrosion resistance and long service life. Integrated magnetic functionality enhances signal quality, while the green-green LEDs provide clear link and activity status indication. The compact form factor with a depth of 21.4 mm, length of 15.76 mm, and width of 14.1 mm facilitates efficient PCB layout and space saving.
Designed for MXMag Gigabit Ethernet non-PoE single-port connectivity, this connector maintains durability and performance under a wide temperature range from 0°C to 70°C. The 2 kV shield connection offers robust protection against electromagnetic interference, suitable for industrial automation, telecommunications, networking equipment, and networking infrastructure applications.
This 93627 series connector supports panel mount installation, delivering easy mounting and mechanical stability for chassis or equipment panels. With female jack connector type and right angle orientation, it suits designs requiring secure, shielded Ethernet connection with reduced board footprint.
2 Ethernet ports with 8 communication ways supporting high-speed data. Shielded housing ensures EMI and RFI suppression. Gold plated phosphor bronze contact material for reliable electrical connection. Right angle orientation for optimized PCB integration.
Green-green LEDs for link/activity status indication. Operating temperature range: 0°C to 70°C. Magnetic integrated for signal integrity enhancement. Compact dimensions enable use in space-constrained equipment. Panel mount type for easy installation and mechanical stability.
Designed for MXMag Gigabit Ethernet 2 kV shield connection.
Use this connector in networking, telecommunications, industrial control systems, and any application requiring robust RJ45 Ethernet panel mount connectors. Browse more Ethernet Connectors at EnvMart for industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a right angle orientation, which optimizes board layout and space efficiency for panel mount applications.
It supports 2 ports with 8 ways for data transmission, making it suitable for high-speed Ethernet connections.
The maximum operating temperature for this connector is 70°C, while the minimum is 0°C, making it suitable for standard industrial conditions.
The contacts are made of phosphor bronze and are plated with gold over nickel, ensuring reliable electrical connections and corrosion resistance.
Yes, this model is shielded, which offers protection against electromagnetic interference (EMI) and radio frequency interference (RFI).
The depth of this connector is 21.4 mm, which helps in space-constrained installations.
It uses a panel mount type, providing easy installation and mechanical stability for chassis or equipment panels.
The integrated magnetic functionality enhances signal integrity, ensuring reliable data transmission in networking applications.
The dimensions are 15.76 mm in length, 14.1 mm in width, and 21.4 mm in depth, allowing for efficient PCB layout.
It is equipped with green-green LEDs for link and activity indication, providing clear status updates during operation.
No, this model is designed for MXMag Gigabit Ethernet non-PoE single-port connectivity.
It is suitable for networking, telecommunications, industrial control systems, and any application requiring robust RJ45 Ethernet panel mount connectors.
