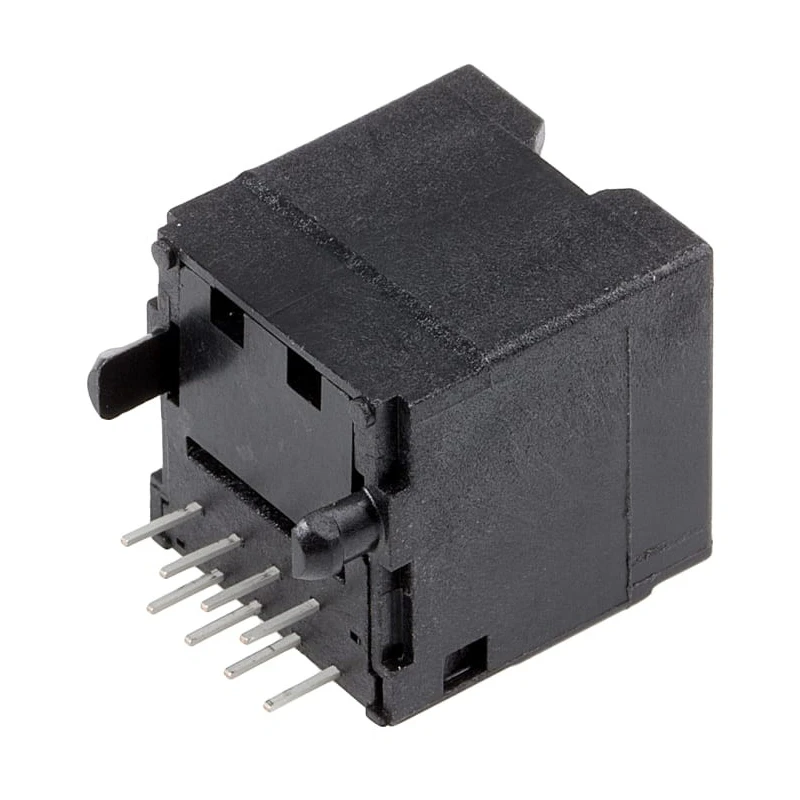

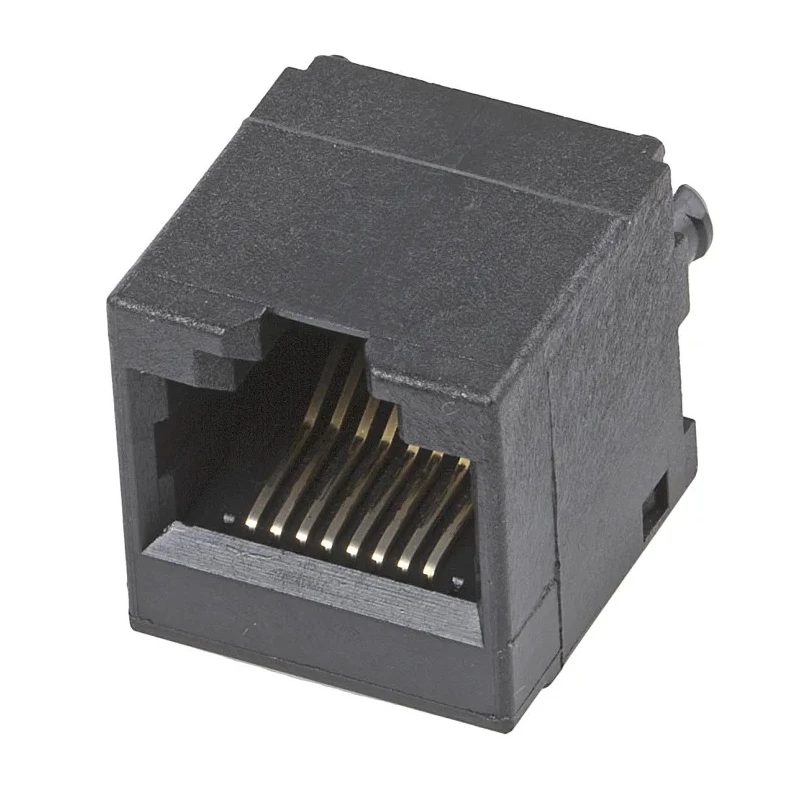

Bel-Stewart SS-65 Series RJ45 Connector Female PCB Mount Cat4 UTP Shield Vertical 1 Port 8 Way RJ45

Free Delivery in India | Lowest Global Shipping Charges

Bel-Stewart SS-65 Series RJ45 Connector Female PCB Mount Cat4 UTP Shield Vertical 1 Port 8 Way RJ45

Name: Bel-Stewart SS-65 Series RJ45 Connector Female PCB Mount Cat4 UTP Shield Vertical 1 Port 8 Way RJ45
Brand: Bel-Stewart
SKU: 162568
Price: 3.06 USD
Availability: InStock



Category Ethernet Connectors Brand Bel-Stewart Condition New

Specifications

Country of Origin	United States
Brand	Bel-Stewart
Orientation	Vertical
Length	16.51mm
Model	RJ45
Depth	16.36mm
Connector Type	Modular Jack
Number Of Ways	8
Width	15.62mm
Mount Type	PCB
Contact Material	Phosphor Bronze
Series	SS-65
Number Of Ports	1
Termination Type	Solder
Shield Type	UTP
Standards/Approvals	RoHS
Contact Plating	Gold over Nickel
Connector Gender	Female
LAN Category	Cat4
Ethernet Connector Type	RJ45

Key Features

Supports Category 4 LAN suitable for standard network communication.
Features single port modular jack connector with 8 ways.
PCB mount type ensures secure and compact installation on circuit boards.
Female connector gender with vertical orientation for efficient PCB layout.
UTP shield type provides basic protection against electromagnetic interference.
Constructed with phosphor bronze contacts plated gold over nickel for durability and performance.
Compliant with RoHS standards ensuring environmental safety.
Manufactured in the United States assuring quality and reliability.

Product Description

Bel-Stewart RJ45 SS-65 Series RJ45 Connector Female PCB Mount Cat4 UTP Shield Vertical 1 Port 8 Way provides a robust and precise Ethernet connection solution for networking and communication applications in industrial and electronic sectors.

This connector supports Category 4 LAN with a single port, offering 8 contact positions in a modular jack design suitable for PCB mounting. The vertical orientation ensures efficient use of PCB space and simplifies the repair or replacement process.

The contacts are crafted from phosphor bronze with a gold over nickel plating, enhancing conductivity and resistance to corrosion. The unshielded twisted pair (UTP) shield type provides fundamental shielding to reduce interference, making it suitable for many commercial and industrial networking environments.

Manufactured to meet RoHS compliance, this product adheres to environmental regulations limiting hazardous substance use.

Physical dimensions include a length of 16.51 mm, width of 15.62 mm, and depth of 16.36 mm, making it compact yet reliable. It features solder termination for secure attachment to printed circuit boards.

Supports Category 4 LAN suitable for standard network communication. Features single port modular jack connector with 8 ways. PCB mount type ensures secure and compact installation on circuit boards. Female connector gender with vertical orientation for efficient PCB layout.

UTP shield type provides basic protection against electromagnetic interference. Constructed with phosphor bronze contacts plated gold over nickel for durability and performance. Compliant with RoHS standards ensuring environmental safety.

Compact dimensions suitable for a variety of industrial electronics. This connector is ideal for use in electronics manufacturing, telecommunications, networking equipment, and other commercial applications requiring reliable data connections.
