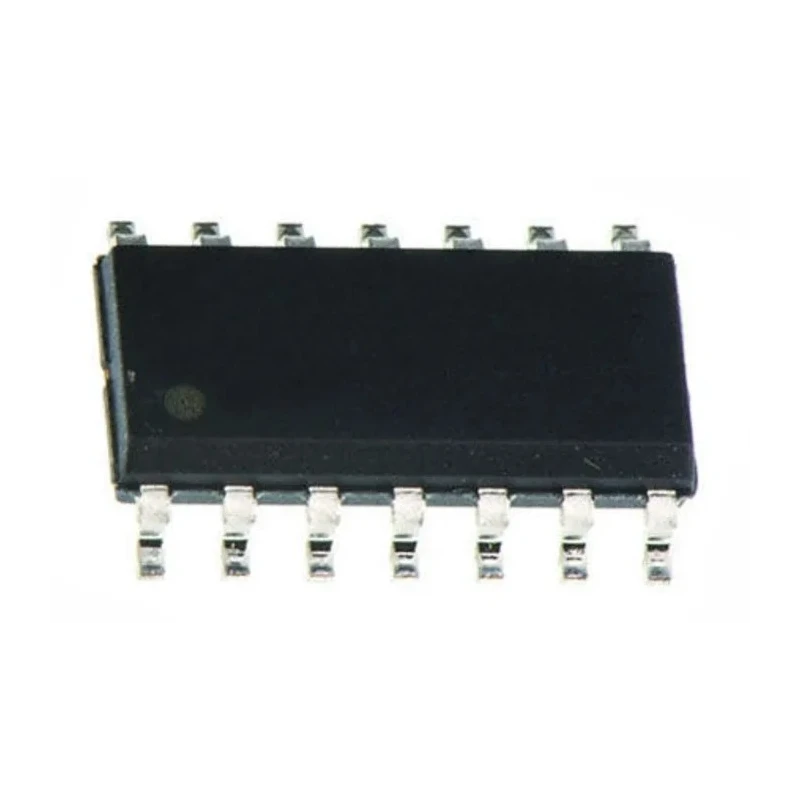

Nexperia Inverter Logic IC 6 Elements 14-Pin SO-8 CMOS 2-6 V 74HC04D,653

Nexperia 74HC04D,653 inverter is a high-speed CMOS logic inverter IC with 6 individual inverter elements in a compact 14-pin SO-8 surface mount package. Operating voltage ranges from 2 to 6 volts, suitable for logic applications demanding low power consumption and fast switching speeds.

This device features a CMOS input stage and open drain output, making it adaptable for various industrial and consumer electronic circuits requiring inverter functions. Its propagation delay time of 130 nanoseconds at standard load capacitance ensures timely signal inversion critical in digital signal processing.

Designed in the 74HC logic family, the 74HC04D,653 demonstrates enhanced speed performance while maintaining CMOS-level power efficiency. Its wide operating temperature range, from -40°C to 125°C, makes it fit for diverse environmental conditions in embedded systems, industrial automation, or communication equipment.

The package SO-8 format provides a minimal PCB footprint, enabling high-density board designs. Physical dimensions of approximately 8.75 mm length, 4 mm width, and 1.45 mm height support reliable surface mount assembly processes.

Typical applications include digital signal inversion, logic level conversions, and buffering within complex integrated circuits used in industrial, electronic manufacturing, automotive, and consumer electronics industries.

This inverter IC includes 6 independent inverters per chip. It is designed with CMOS input type and open drain output type. The device supports a maximum operating temperature of 125°C and minimum of -40°C. The propagation delay time at load capacitance (CL) is typically 130 nanoseconds.

The package dimensions are approximately 8.75 mm in length, 4 mm in width, and 1.45 mm in height. The operating voltage range allows compatibility with various digital circuits. This surface-mount device (SMD) package is ideal for space-efficient PCB layouts.

It belongs to the 74HC logic family known for low power consumption and high-speed CMOS technology. Explore more semiconductor and logic ICs from Nexperia and enhance your electronic circuit designs with reliable, industry-standard components available at EnvMart.
