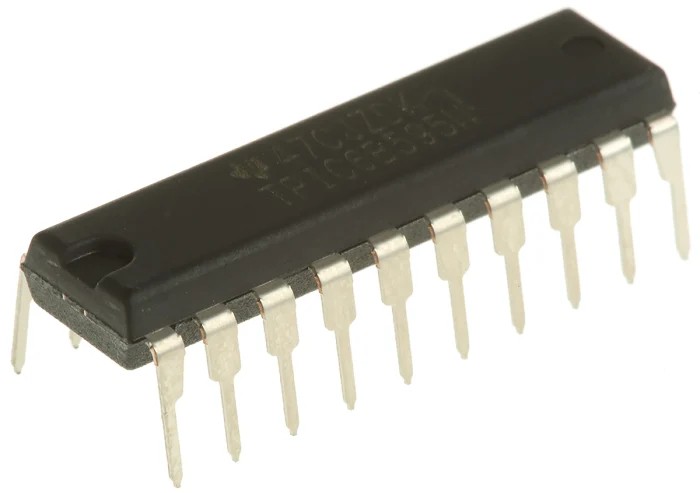

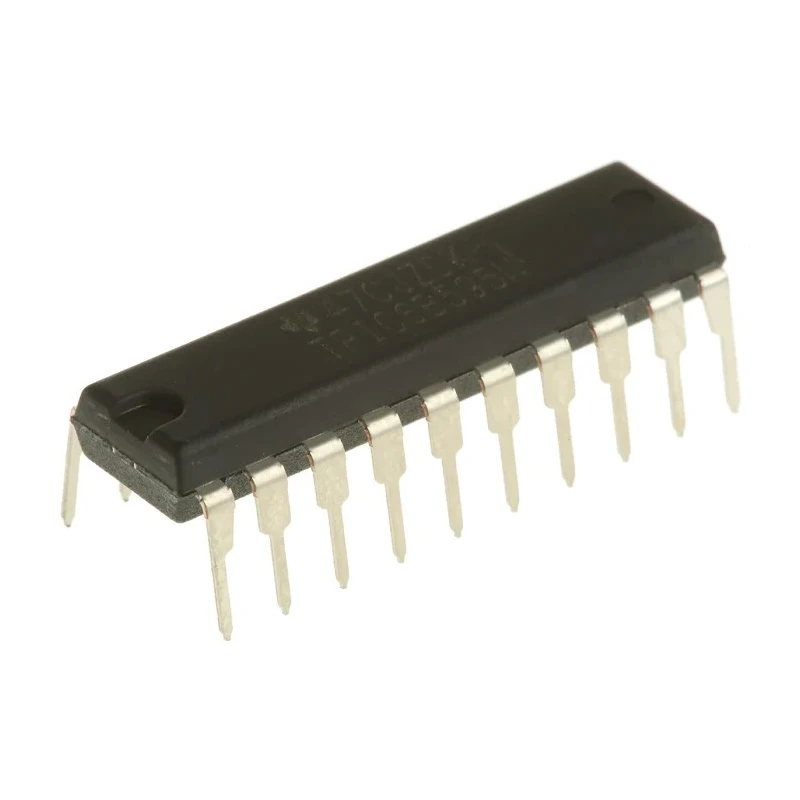

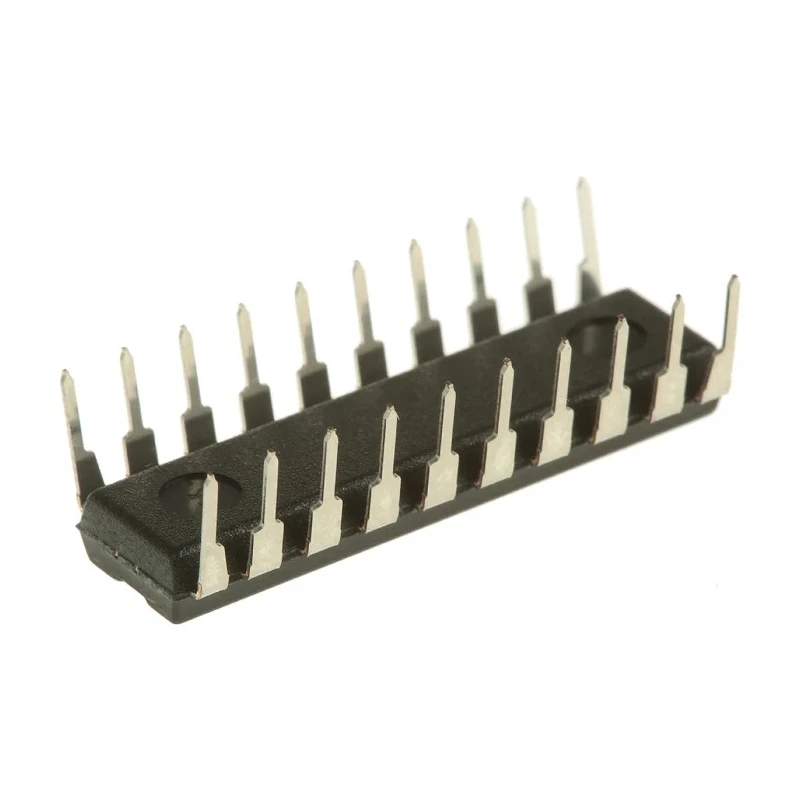

Texas Instruments 8 Through Hole Binary Shift Register DMOS 20 PDIP TPIC6B595N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 26.92mm |
| Model | TPIC6B595N |
| Mount Type | Through Hole |
| Series | TPIC6B595 |
| Maximum Operating Temperature | 125°C |
| Number Of Stages | 8 |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 20 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | DMOS |
| Logic Function | Shift Register |
| Minimum Supply Voltage | 4.5V |
| Direction Type | Uni-Directional |
| Counter Type | Binary |
Key Features
- Operates over a supply voltage range of 4.5 to 5.5 volts.
- Maximum operating temperature of 125°C and minimum of -40°C.
- Utilizes DMOS logic family for efficient power logic functionality.
- Features a 20-pin PDIP through-hole package for reliable mounting.
- Unidirectional binary shift register with 8 stages.
- Designed for power logic applications in electronic circuits.
- Single element count and binary counter type.
- Compact dimensions of 26.92 mm length and 4.57 mm height.
Product Description
Texas Instruments TPIC6B595N is an 8-stage binary shift register using DMOS technology, housed in a 20-pin PDIP package ideal for through-hole mounting. It features a unidirectional binary counter function with robust operating specifications that include a minimum voltage of 4.5 V, a maximum of 5.5 V, and operational temperatures ranging from -40°C to 125°C. This shift register is part of the TPIC6B595 series and is designed to serve power logic needs in industrial and electronic circuit applications.
With a length of 26.92 mm and height of 4.57 mm, the device provides compact integration for PCB designs. Its 20-pin PDIP form factor enables easy assembly for testing, prototyping, and production environments where through-hole mounting is preferred for durability and mechanical stability.
The DMOS logic family enhances the power efficiency and switching speed necessary for industrial automation circuits, programmable logic controllers, and embedded systems. Despite not being rated for automotive standards, it serves extensive applications in industrial semiconductor usage, instrumentation, and other electronics requiring reliable data shift and storage capabilities.
The shift register supports binary counting over eight stages with a single element construction. It provides unidirectional data flow, making it suitable for controlled sequential logic circuits. The device is manufactured under stringent quality standards ensuring longevity and consistent performance up to 125°C operating temperature.
Its PDIP package ensures compatibility with a wide range of standard PCB layouts and breadboarding. Operating voltage flexibility between 4.5 and 5.5 V supports compatibility with standard 5 V logic systems. The device does not have any approvals or certifications for automotive use or safety standards but is robust for general industrial electronics.
Texas Instruments continues to lead with innovative semiconductor products designed for industrial, laboratory, and electronic component applications, offering engineers reliable and efficient logic ICs. Explore the wide range of Shift Registers and counter ICs at EnvMart for your next design or replacement project.
