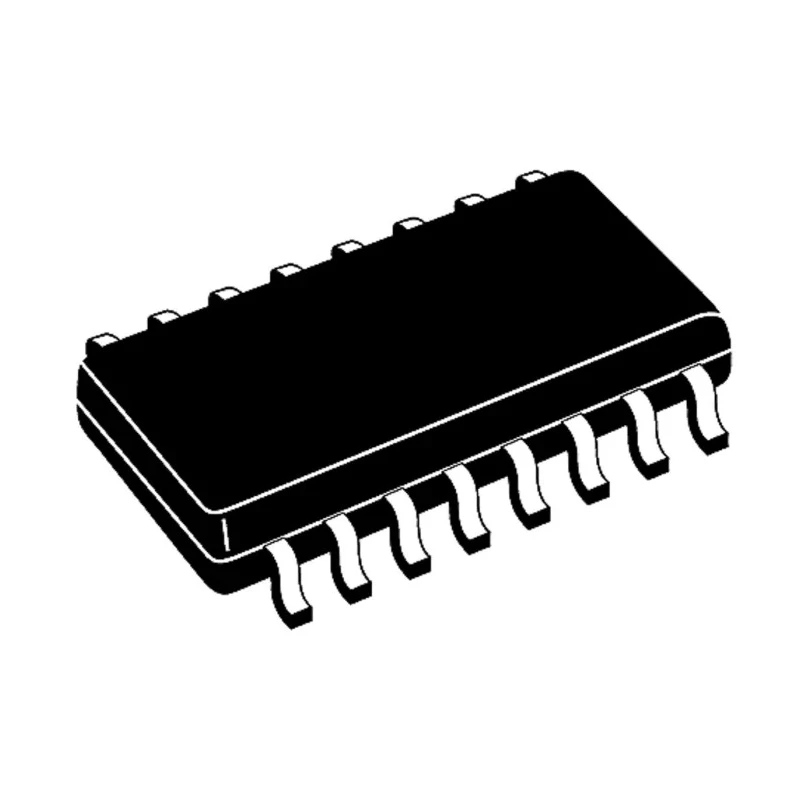

Nexperia 74HC597D,653 16-Pin Surface Mount Shift Register SO Logic IC 2V-6V 125°C 74HC597
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.75mm |
| Length | 10mm |
| Model | 74HC597D,653 |
| Width | 4mm |
| Mount Type | Surface |
| Series | 74HC597 |
| Maximum Operating Temperature | 125°C |
| Package Type | SO |
| Trigger Type | Positive Edge |
| Pin Count | 16 |
| Number of Elements | 1 |
| Maximum Supply Voltage | 6V |
| Logic Family | 74HC |
| Minimum Supply Voltage | 2V |
Key Features
- Supports operating voltage range from 2V to 6V.
- Maximum operating temperature of 125°C ensures reliability in harsh environments.
- Positive edge trigger logic with 8-bit serial-in/serial or parallel-out functionality.
- Surface mount device with compact dimensions of 10mm length, 4mm width, and 1.75mm height.
- Includes asynchronous reset and separate clocks for shift and storage registers.
- Ideal for I/O expansion in electronic control units and LED driving applications.
- High frequency operation with cascadable design enabling multiple devices chaining.
- Non-automotive standard device suitable for general industrial electronics and embedded systems.
Product Description
Nexperia 74HC597D,653 is a surface mount 16-pin shift register in an SO package that belongs to the 74HC597 series of logic ICs. It operates within a voltage range of 2V to 6V and withstands a maximum temperature of 125°C, providing robust performance in industrial and commercial environments.
This 8-bit serial-in/serial or parallel-out shift register features separate clocks for the shift register and storage register, allowing precise data control and asynchronous reset using the MR input. The device shifts data on the low-to-high transition of the SHCP input and transfers data to the storage register on the low-to-high transition of the STCP input. Both functionalities make it highly suitable for use in complex control units and LED driver circuits.
The compact SO package with dimensions 10mm length, 4mm width, and 1.75mm height makes it ideal for applications requiring surface mounting and space saving on PCBs. The device includes a serial output (Q7S) to enable cascading multiple chips in sequence for larger shift register arrays.
Supports operating voltage range from 2V to 6V. Positive edge triggered inputs for reliable timing. Separate clocks for shift and storage registers for flexible operation. Asynchronous reset capability using the MR pin. Casacable design suitable for extending register length across multiple ICs.
Compatible with high frequency digital applications requiring fast switching. Compact SO package with low profile dimensions. Ideal for industrial electronic components, embedded systems, and LED driving applications.
This Shift Register is widely used in electronic control units, display drivers, and other industrial applications requiring reliable and versatile data storage and shifting operations. The device is RoHS compliant and suitable for a broad range of semiconductor applications in industrial and consumer electronics.
Explore more from Nexperia and find compatible parts for your projects here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates within a voltage range of 2V to 6V.
The maximum operating temperature for the 74HC597D is 125°C.
It uses positive edge trigger logic for its operation.
This shift register has dimensions of 10mm in length, 4mm in width, and 1.75mm in height.
The device features a total of 16 pins.
It comes in a surface mount SO package.
Yes, it has a cascadable design that allows multiple devices to be chained together.
The asynchronous reset can be activated using the MR input, allowing for precise control over data operations.
It is ideal for I/O expansion in electronic control units and LED driving applications.
This shift register belongs to the 74HC logic family.
It supports 8-bit serial-in/serial or parallel-out data transfer functionality.
The separate clocks for the shift and storage registers allow for flexible operation and precise data control.
