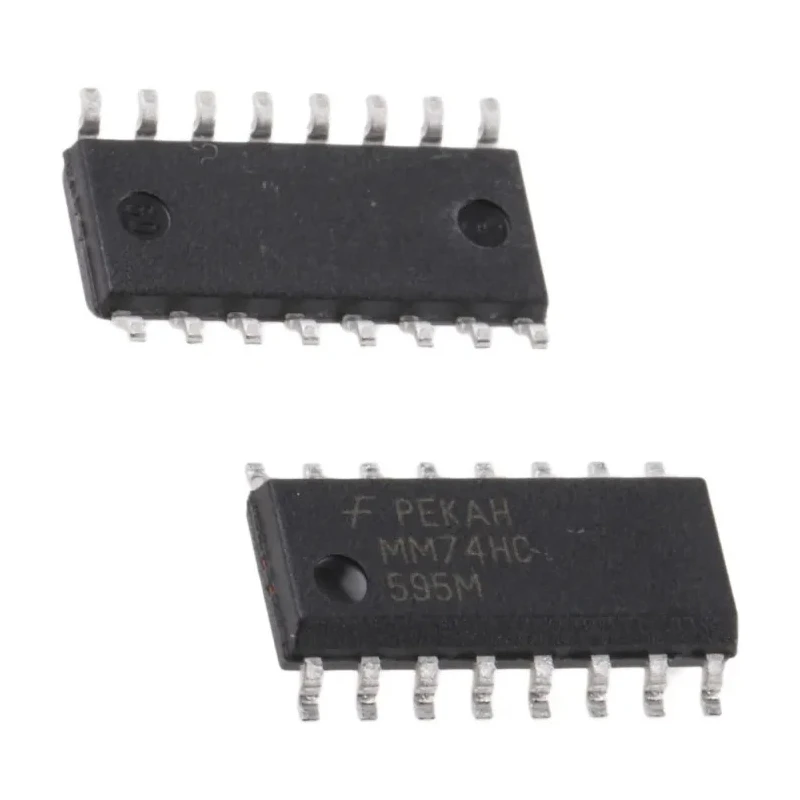

onsemi Surface Mount Shift Register 74HC, SOIC Package, 16-Pin, Operating Voltage 2 to 6 V MM74HC595MX

onsemi MM74HC595MX is a high-speed CMOS surface mount shift register designed for sequential logic applications in electronic circuits. Packaged in a 16-pin SOIC footprint with a compact 10mm length, 4mm width, and 1.75mm height, it offers integration ease into printed circuit boards with surface mount technology.

Operating within a voltage range of 2 to 6 V, it supports positive edge triggering to shift data efficiently. The logic family 74HC ensures compatibility with CMOS input and output signals, making this device suitable for modern digital electronic designs.

This shift register is engineered for reliable operation up to 85°C, providing stable performance under typical industrial and commercial temperature ranges. It features a single element count for straightforward deployment in counters, registers, and other sequential logic functions.

The SOIC package aids in automated soldering and assembly, improving production efficiency. Its compact size and surface mount configuration make it ideal for space-constrained applications such as consumer electronics, industrial controllers, and communication devices.

This high-speed CMOS logic shift register supports positive edge triggering. Designed for surface mount applications with a compact 10mm length and 4mm width footprint. Operates reliably up to 85°C maximum temperature for robust performance.

Compatible with input and output CMOS signal levels ensuring easy integration. Ideal for electronic circuits requiring sequential logic and data storage. Package supports efficient PCB layout and soldering in automated assembly processes.

The product belongs to the 74HC logic family offering high-speed operation.

Common use cases include digital data handling, timing applications, and interfacing with microcontrollers in industrial, commercial, and consumer electronics sectors. This device is an essential component for designers seeking robust and compact Shift Register functionality.

Explore more semiconductor and logic ICs at EnvMart to meet your electronic component needs efficiently.
