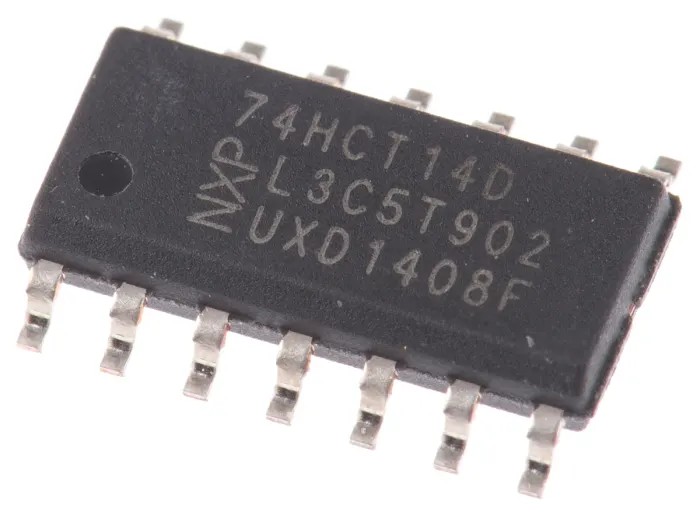

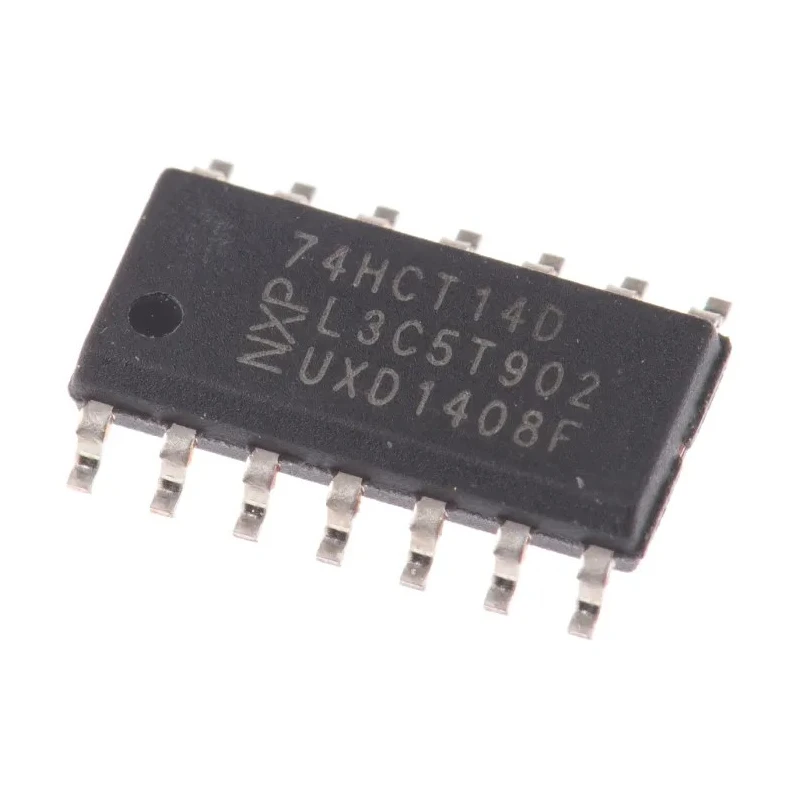

Nexperia Schmitt Trigger Input Inverter 6 Elements, 14-Pin SOIC 74HCT14D,652

Nexperia 74HCT14D,652 is a Schmitt Trigger input inverter IC, designed with six inverter elements housed in a 14-Pin SOIC surface mount package. It operates with a supply voltage range of 4.5V to 5.5V, making it suitable for high-speed CMOS logic circuits requiring noise immunity and stable signal switching.

This inverter IC accepts TTL-level inputs while providing CMOS-compatible output levels, ensuring compatibility across various digital logic families. The Schmitt Trigger input enhances signal integrity by providing hysteresis, which improves noise rejection and prevents false triggering in industrial and electronic applications.

The device supports a wide operating temperature range from -40°C to 125°C, suitable for robust industrial environments. It handles maximum high-level output current of -4mA and low-level output current of 4mA, ensuring effective driving capability for connected loads.

The compact 14-pin SOIC package measures 8.75mm in length, 4mm in width, and 1.45mm in height, allowing for dense PCB layouts in embedded systems, consumer electronics, and automation controls.

Common industrial applications include signal processing, noise filtering, logic level conversion, and use in automated electronic control systems, laboratories, instrumentation, and embedded system designs.

Features Schmitt Trigger input for noise immunity and signal stability. Contains six inverter elements per chip, enabling multiple logic operations. Surface mount 14-pin SOIC package suitable for compact PCB designs. Wide operating temperature range from -40°C to 125°C for industrial applications.

Compatible with TTL input and CMOS output logic levels. Maximum supply voltage rating of 5.5V ensures reliable performance. Low-level output current of 4mA and high-level output current of -4mA. Compact dimensions: length 8.75mm, width 4mm, height 1.45mm facilitating space-efficient integration.

Explore broad selections of Inverter ICs and semiconductors for electronic design and manufacturing automation in EnvMart for reliable and high-performance components.
