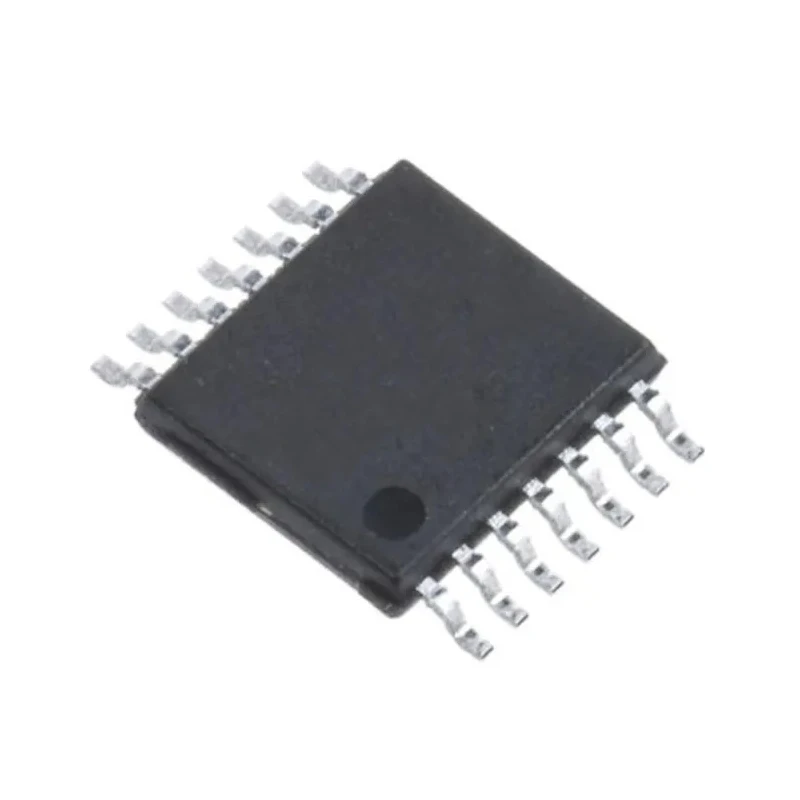

onsemi Schmitt Trigger Input Inverter 1 Element 14-Pin TSSOP MC74HCT14ADTR2G

The onsemi MC74HCT14ADTR2G is a Schmitt trigger input inverter, designed using high-performance silicon-gate CMOS technology. This logic IC integrates one inverter element in a compact 14-pin TSSOP surface mount package.

Operating over a voltage range of 4.5 to 5.5 V, the MC74HCT14ADTR2G features CMOS inputs and TTL outputs with a Schmitt trigger to enhance signal integrity in noisy environments. The device offers low input current of approximately 1.0 mA and an output drive capability able to handle 10 LSTTL loads, making it suitable for interfacing TTL or NMOS outputs to high-speed CMOS inputs.

This inverter IC has a maximum propagation delay of 48 ns at capacitive load conditions, supporting fast switching applications. The device is designed to operate across a broad thermal range from -55°C to 125°C, ensuring performance stability under harsh conditions.

The MC74HCT14ADTR2G's compact 14-pin TSSOP package with dimensions of 5.1 mm length, 4.5 mm width, and 1.05 mm height supports space-saving circuit layouts. Its chip complexity includes 72 FETs or 18 equivalent logic gates, delivering reliable logic functionality for industrial, automotive, and commercial electronics.

This inverter IC is compliant with the AEC-Q100 automotive standard, making it suitable for automotive electronics requiring stringent quality and reliability. The device’s robust design and high noise immunity allow it to effectively square up slow input rise and fall times with hysteresis voltage.

High-performance silicon-gate CMOS technology for reliable inverter operation. Schmitt trigger input enhances noise immunity in digital signals. TTL compatible output levels allow interfacing with standard logic families.

Operating supply voltage range from 4.5 V to 5.5 V for versatile applications. Wide temperature range supports industrial and automotive environments. Compact 14-pin TSSOP surface mount package for PCB space optimization.

Low input current minimizes power consumption in system designs. Automotive standard AEC-Q100 certification ensures high reliability. Capable of driving up to 10 LSTTL loads for broad compatibility.

This product is ideal for applications in industrial automation, automotive electronics, consumer devices, and communication equipment where signal conditioning and logic inversion with noise immunity are critical. Explore more semiconductor logic ICs and inverters at EnvMart for your electronic design needs.
