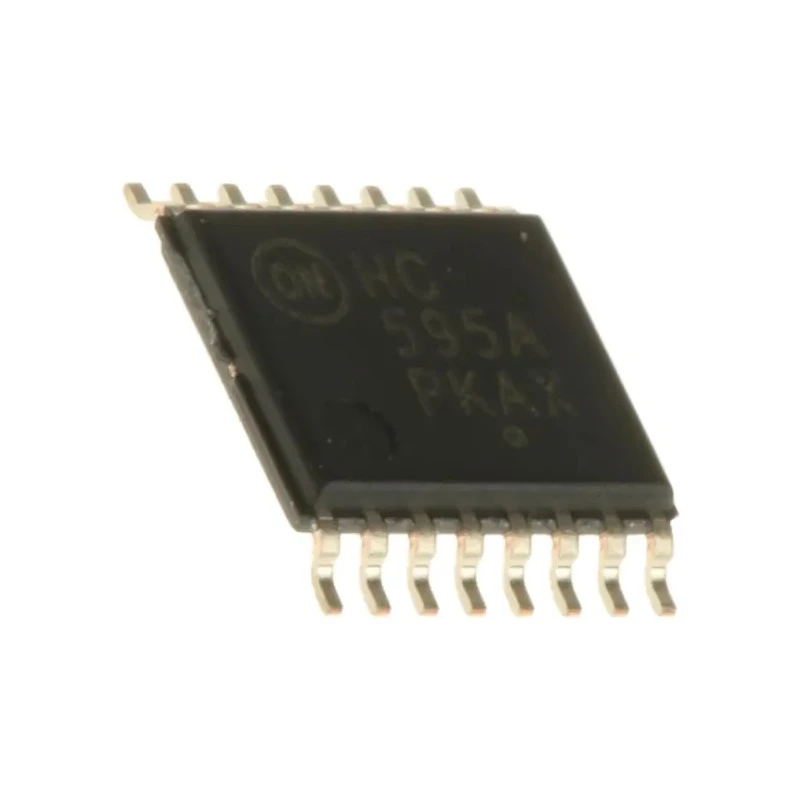

onsemi High-Speed CMOS Logic Shift Register 16-Pin TSSOP Package MC74HC595ADTG

The onsemi MC74HC595ADTG is a high-speed CMOS logic shift register tailored for industrial and automotive semiconductor applications. It features a 16-pin Thin Shrink Small Outline Package (TSSOP) optimized for surface mounting on printed circuit boards.

Operating within a supply voltage range of 2 to 6 volts, this device ensures efficient and reliable logic signal handling with positive edge triggering, making it ideal for sequential logic circuits, counters, and data storage elements.

This model complies with the stringent automotive standard AEC-Q100, assuring performance and durability under elevated temperature conditions, with an operating threshold up to 125°C. The compact TSSOP package minimizes board footprint while providing a robust connection with a 16-pin configuration.

Being part of the MC74HC595A family, it guarantees compatibility for both input and output CMOS logic levels, simplifying integration in diverse electronic designs ranging from industrial control systems to automotive electronics and consumer devices.

Operates at supply voltages between 2 and 6 V. Positive edge-triggered circuitry for precise timing control. Automotive standard AEC-Q100 compliant device. Compact TSSOP surface mount package with dimensions: 5.1mm x 4.5mm x 1.2mm.

Single element shift register with 16 pins. High temperature tolerance up to 125°C for harsh environments. Compatible with CMOS input and output levels.

This Shift Register is suitable for a wide range of industrial, automotive, and electronic manufacturing applications where compact high-speed logic components are required. It is ideal for integration into printed circuit boards used in industrial automation, embedded computing, and advanced electronic controls.
