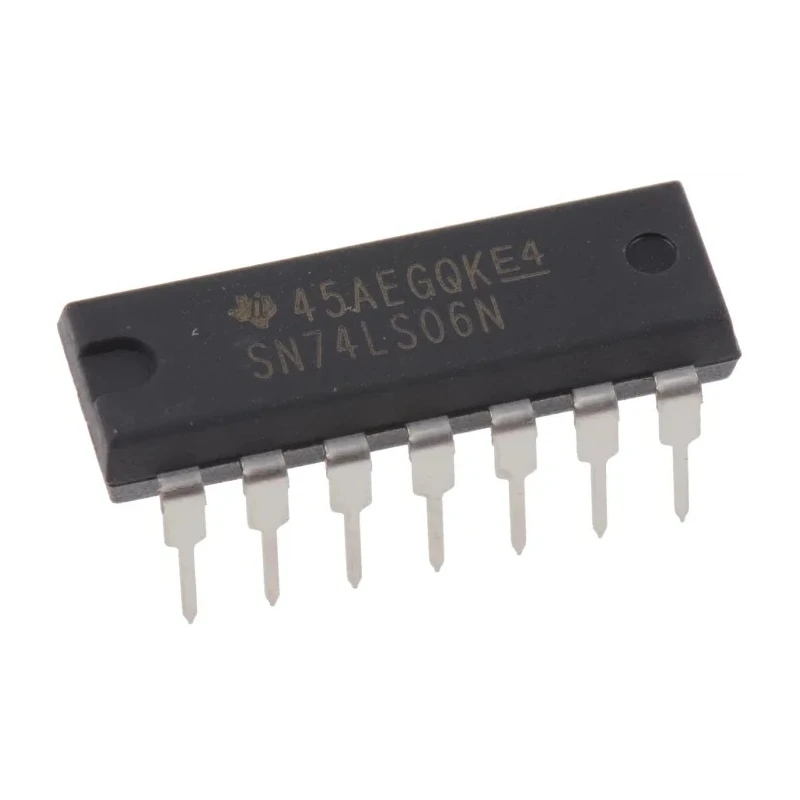

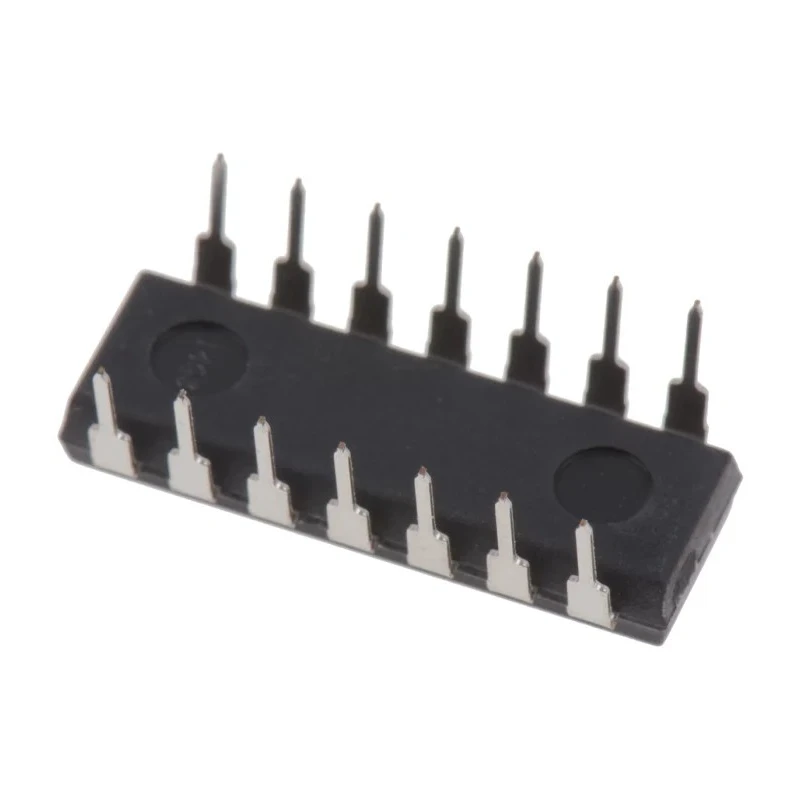

Texas Instruments Inverter 6 Elements, TTL Input, Open Collector Output, 14-Pin PDIP SN74LS06N

Texas Instruments SN74LS06N is a high-quality inverter IC from the 74LS family of Low Power Schottky Logic devices. This model features 6 inverter elements that perform the inverting buffer logic function. It accepts TTL input levels and provides open collector outputs, enabling flexible circuit designs including wired-AND configurations.

The device comes in a standard through-hole 14-pin PDIP package, making it suitable for prototyping and easy replacement in existing designs.

Operating over a temperature range of 0°C to 70°C, the SN74LS06N is reliable for various industrial and electronic applications. Its maximum propagation delay time is 20 nanoseconds at a load capacitance of 20pF, ensuring swift signal processing.

The supply voltage ranges from 4.75V minimum to 5.25V maximum, supporting industry standard logic voltages. The low power consumption LS logic family technology reduces heat dissipation and improves efficiency.

Physical dimensions are compact with a length of 19.3mm, width of 6.35mm, and height of 4.57mm, enabling dense PCB layouts. This inverter IC is widely used in semiconductor logic circuits for signal inverting purposes in digital electronics, instrumentation, and control systems.

Features six independent inverter elements integrated in one chip. Designed with TTL input for compatibility with standard digital logic levels. Open collector output type allows wired-AND connections and flexible interfacing.

Uses 14-pin PDIP package ideal for through-hole mounting. Operates over a temperature range of 0°C to 70°C, suitable for industrial applications. Maximum propagation delay time of 20 nanoseconds ensures fast switching. Low power consumption with LS (Low Power Schottky) logic family technology.

Supports supply voltage from 4.75V to 5.25V ensuring stable operation. Compact dimensions with 19.3mm length, 6.35mm width, and 4.57mm height. Package contains the SN74LS06 inverter IC designed for logic inverting buffer applications.

This product is suitable for industrial automation, electronic circuit design, digital logic projects, and educational laboratories. Explore more semiconductor and logic IC solutions on EnvMart for comprehensive industrial and electronic component needs.
