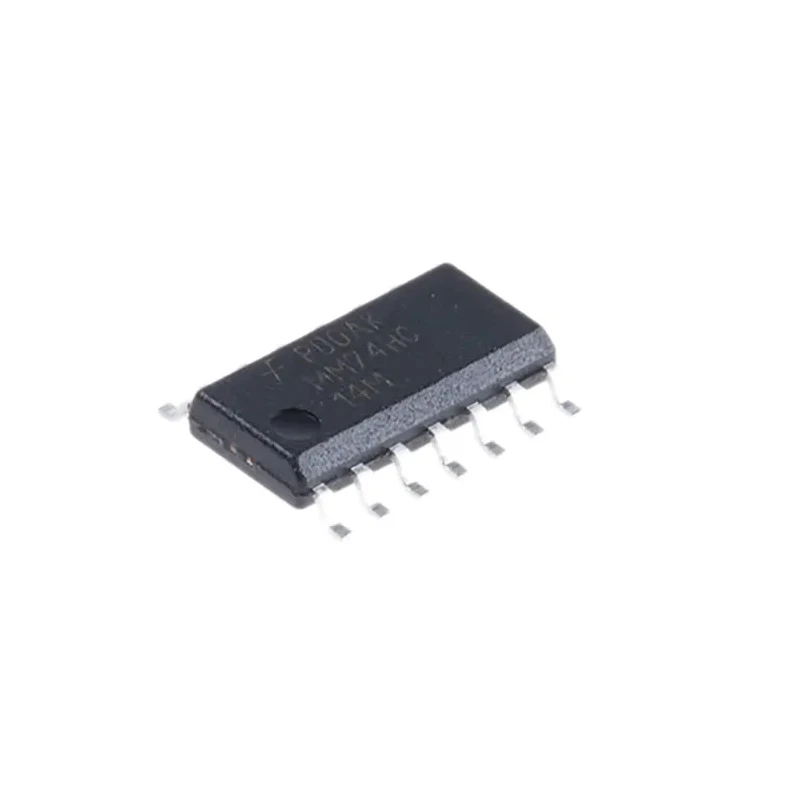

onsemi Schmitt Trigger Input CMOS Inverter 6 Elements, 14-Pin SOIC Package MM74HC14MX

onsemi MM74HC14MX is a CMOS inverter integrated circuit featuring Schmitt trigger inputs optimized for precise, high-speed logic operations requiring noise immunity and signal conditioning.

This device contains six independent inverting elements integrated into a compact 14-pin SOIC surface mount package, enabling efficient board layout and space-saving implementations.

The IC supports operating voltage between 2 V and 6 V, providing flexibility for low power and standard logic levels. Its maximum propagation delay time is specified at 188 nanoseconds, making it suitable for timing-critical applications.

Output stage can drive both high and low logic states with a maximum current of ±5.2 mA. The device covers a wide temperature range from −55 to 125 degrees Celsius, supporting usage in harsh or industrial environments without performance degradation.

With compatibility for CMOS logic input and output, it integrates seamlessly into existing high-speed logic systems and digital circuits. The package dimensions of 8.75 mm length, 4 mm width, and 1.5 mm height further facilitate automated PCB assembly processes and precise mechanical integration.

Features six inverting Schmitt trigger elements per chip. Operates with a supply voltage range from 2 V to 6 V. Maximum propagation delay time is 188 ns at load capacitance. Maximum output current is ±5.2 mA for high and low levels.

Surface-mount SOIC package with 14 pins and compact dimensions. Wide operating temperature range of −55°C to 125°C. Compatible with CMOS logic families for input and output. Low power consumption characteristic of HC logic IC family.

Robust design without automotive standard compliance but suitable for general industrial use. This IC is ideal for industrial, electronics manufacturing, laboratory instrumentation, and prototyping applications where clean signal transitions and noise immunity are vital.

Available for procurement as single piece units, this device supports efficient inventory management and streamlined production processes. Explore a wide range of semiconductor components including inverters, logic ICs, and other integrated circuits to complement your design and manufacturing needs on EnvMart.
