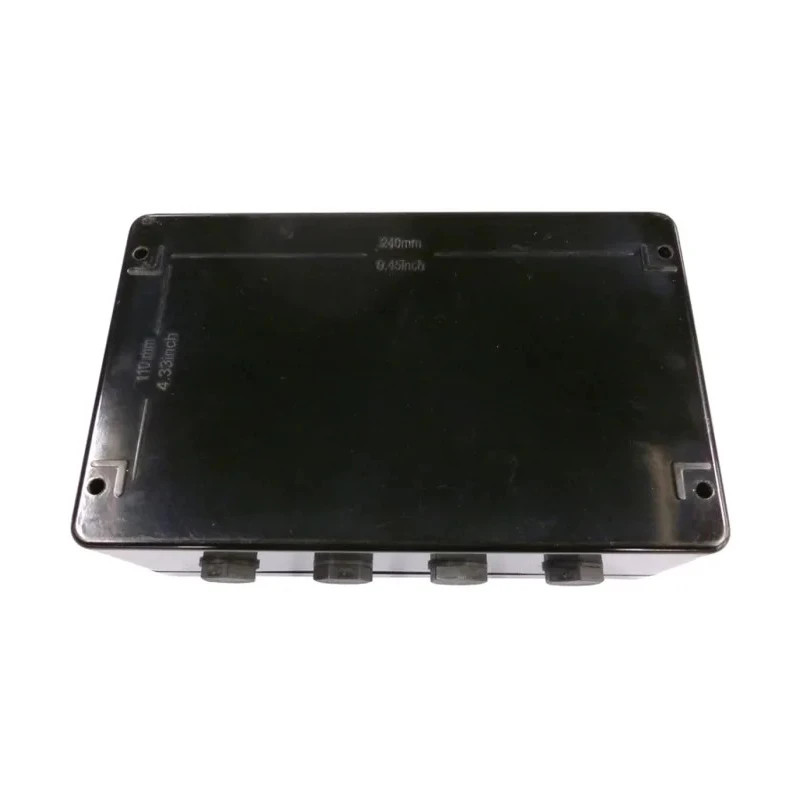

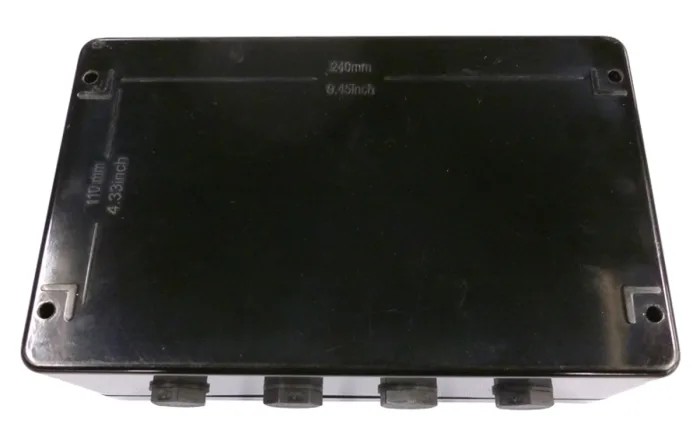

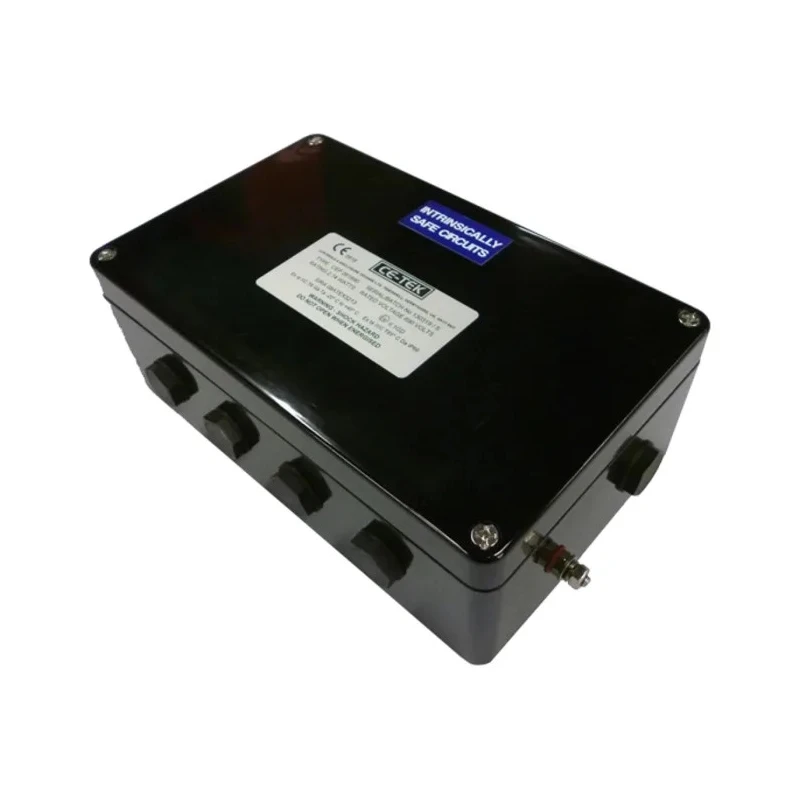

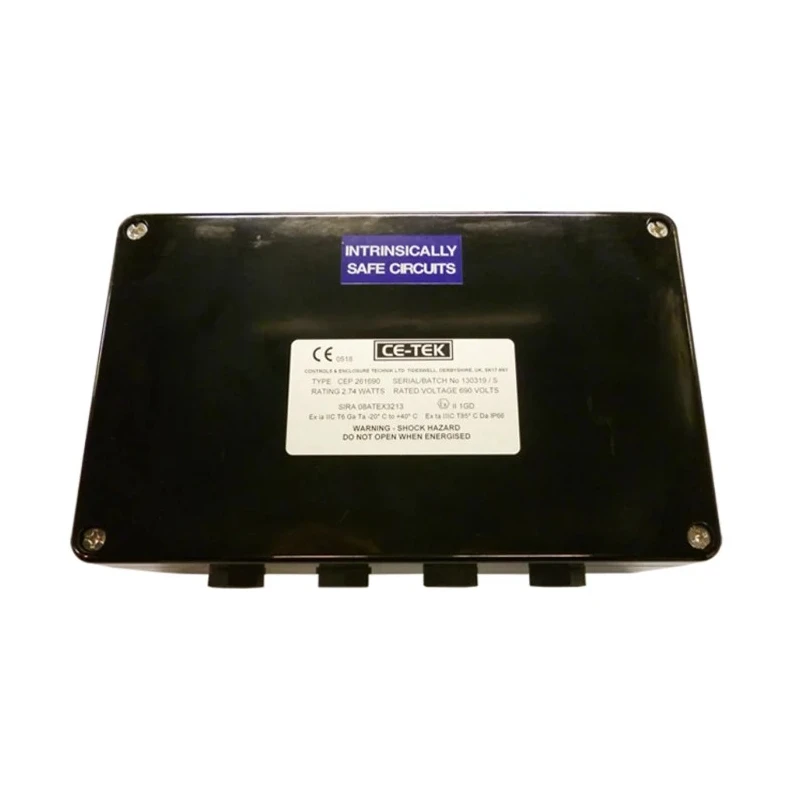

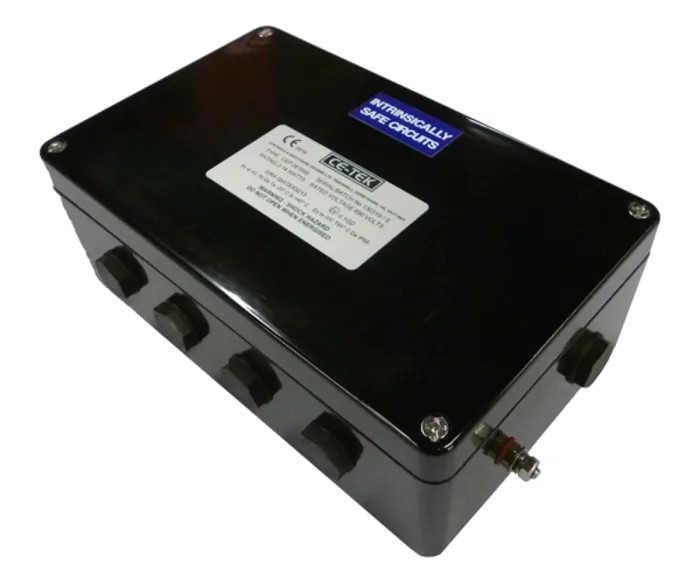

CE-TEK CEP Series Black Glass Reinforced Polyester Junction Box, IP66, 26 Terminals, ATEX, 160mm x 90mm x 260mm CEP261690PAI

CE-TEK CEP261690PAI is a high-quality junction box made from black glass reinforced polyester (GRP) designed for hazardous area electrical installations. The product features ATEX certification for EX ia intrinsic safety, complying with EN 60079:2007 standards, ensuring safe use in explosive atmospheres.

The junction box provides IP66 ingress protection, safeguarding internal connections from dust ingress and powerful water jets, making it suitable for harsh industrial environments.

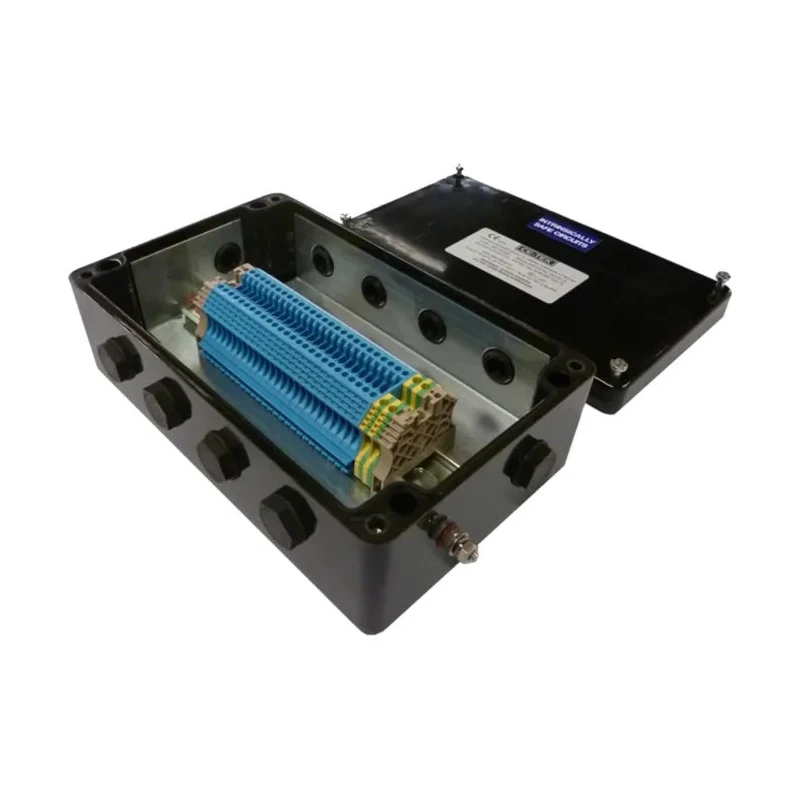

This model includes 26 blue intrinsically safe terminal connectors mounted on a TS35 DIN rail, facilitating organized wiring installations. Cable entry is provided by ten factory-machined M20 threaded holes with certified blanking plugs supplied for unused entries. Earthing is integrated via punched earth continuity plates and internal and external M6 earth studs to ensure grounding compliance.

Certified for temperature classes T6 (85°C) and T5 (100°C), this junction box is designed to maintain safety and performance in demanding conditions. Its dimensions are 160mm length, 90mm width, and 260mm height, offering spacious internal accommodation while remaining compact for site use.

Constructed from black anti-static graphite-loaded glass reinforced polyester. Machined for 10 x M20 cable gland entries with EX rated blanking plugs. Equipped with 26 intrinsic safe terminal blocks on DIN rail. Includes internal and external M6 earth studs for grounding.

Certified ATEX EX ia and EX ib hazardous area compliance. IP66 rated ingress protection. Temperature rating T6 (85°C) and T5 (100°C). Suitable for Automation, Industrial Manufacturing, and Hazardous Area installations. Dimensions: Length 160mm, Width 90mm, Height 260mm.

This CE-TEK CEP Series Junction Box supports safe and effective wiring management in hazardous zones, meeting rigorous industrial requirements for electrical enclosure safety and durability. It is ideal for industrial automation, process control, and factory electrical distribution systems.
