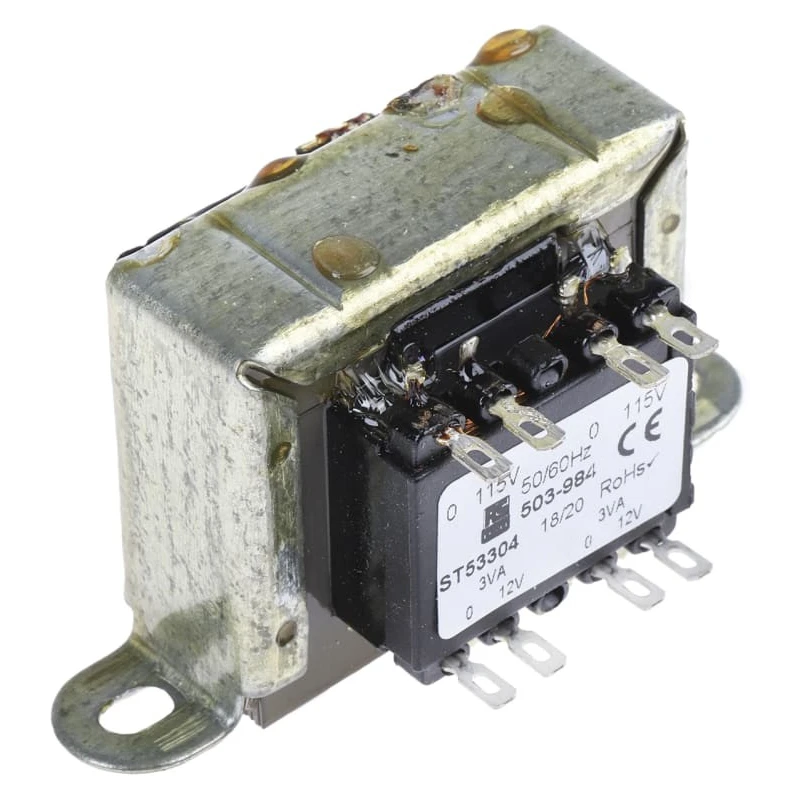

RS PRO 2 Output 6 VA Chassis Mount Transformer, 12 V AC Secondary, 2 x 115 V AC Primary, 503-984

The RS PRO 2 Output 6 VA Chassis Mount Transformer, model 503-984, is a robust and dependable transformer designed for fixed installation in electronic control panels, HVAC systems, and industrial or laboratory applications where safe voltage conversion is critical. With the capacity to step down or isolate voltage, this transformer features a 6 VA power rating, making it suitable for low-power loads such as instrumentation, relays, and circuit control.

This transformer is engineered for high versatility. Its primary winding supports dual 115 V AC inputs and can be connected in parallel for 115 V operation or in series for 230 V AC input compatibility, enabling flexible use worldwide. The device offers two independent secondary outputs at 12 V AC, which can be used individually or interconnected to achieve a variety of output voltages or higher currents, depending on system demands.

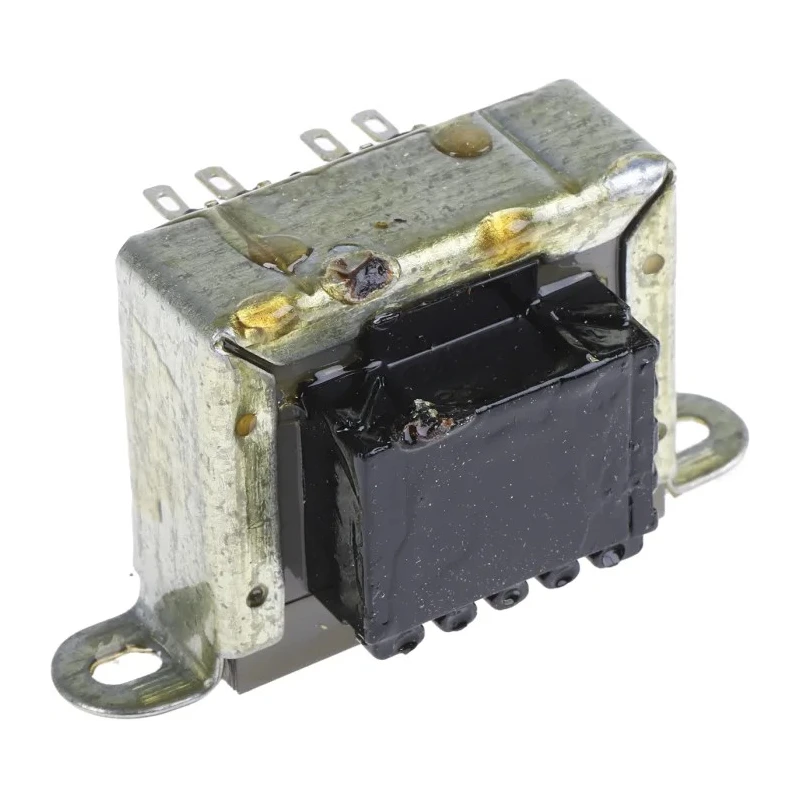

Reliability is enhanced through a fully shrouded double section bobbin and full varnish impregnation, which provides mechanical strength, effective insulation, and increased resistance to environmental stress. The transformer is equipped with two-hole fixing wrap-over clamps for straightforward chassis mounting and secure, vibration-resistant installation. Solder tag terminations ensure secure and lasting electrical connections during assembly and integration.

Engineered to meet rigorous safety and performance certifications, the 503-984 transformer complies with ASNZS 61558..6, ASNZS 61558.1, CE, IEC/BS/EN 615586, and RoHS requirements, making it suitable for professional and industrial environments where product approvals and conformity are mandatory. Operating efficiently within a wide temperature range of -30°C to 130°C and at frequencies of 50 Hz or 60 Hz, this transformer ensures reliable performance in variable climates and challenging industrial conditions.

Applications for this chassis mount transformer include electromagnetic devices, electrical and electronic control systems, relays, pumps, speed changers, and heating elements, among others found in laboratory, manufacturing, automation, and building services sectors. The transformer has a compact footprint (45 mm x 40 mm x 37 mm) and a low weight of 210 g, facilitating its use in space-constrained panels or multi-device assemblies.

This product comes with 100% electrical and flash testing after assembly, offering buyers assurance of quality and operational safety. RS PRO's transformer range is widely used by OEMs, integrators, and panel builders across industries owing to its reliability, ease of installation, and adherence to international standards.
