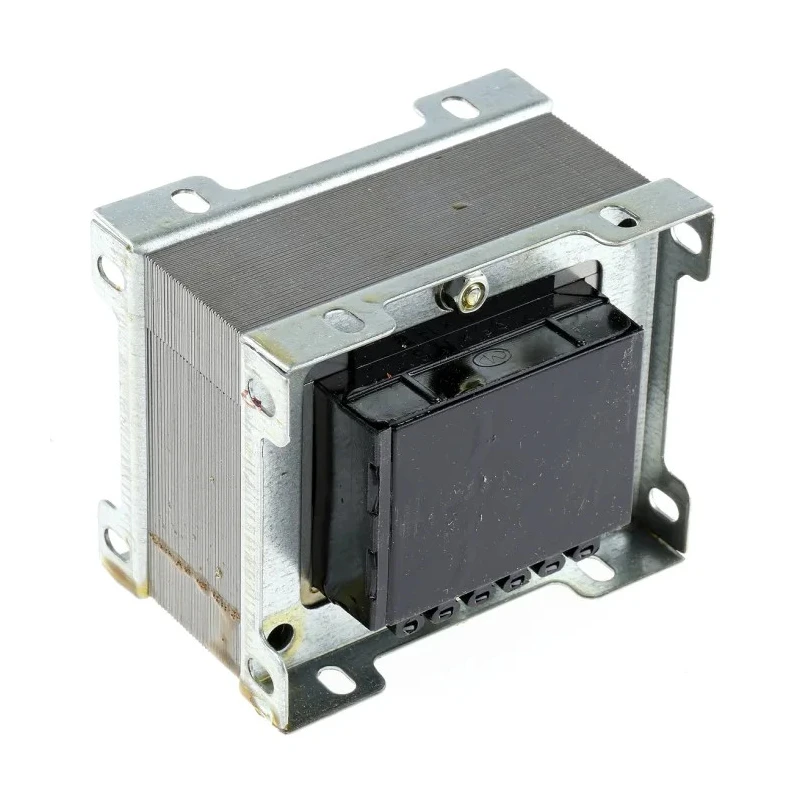

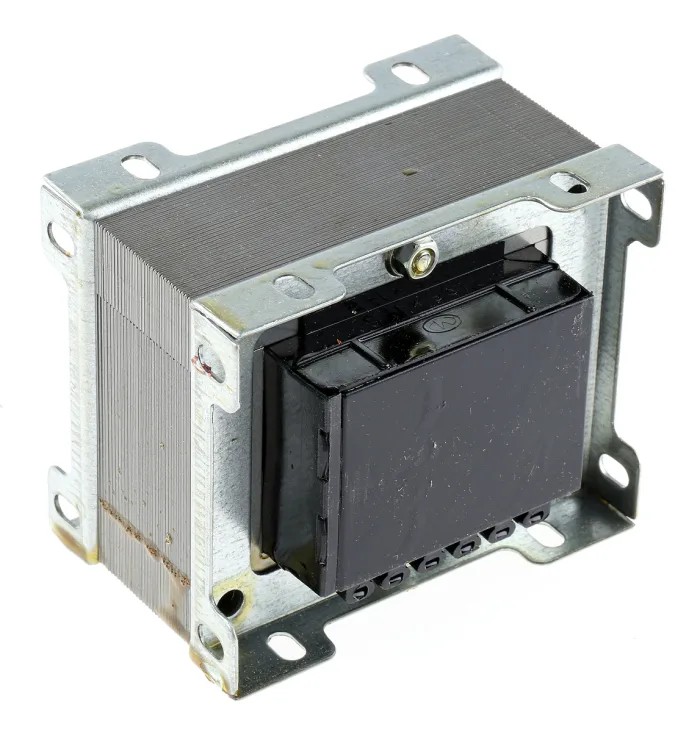

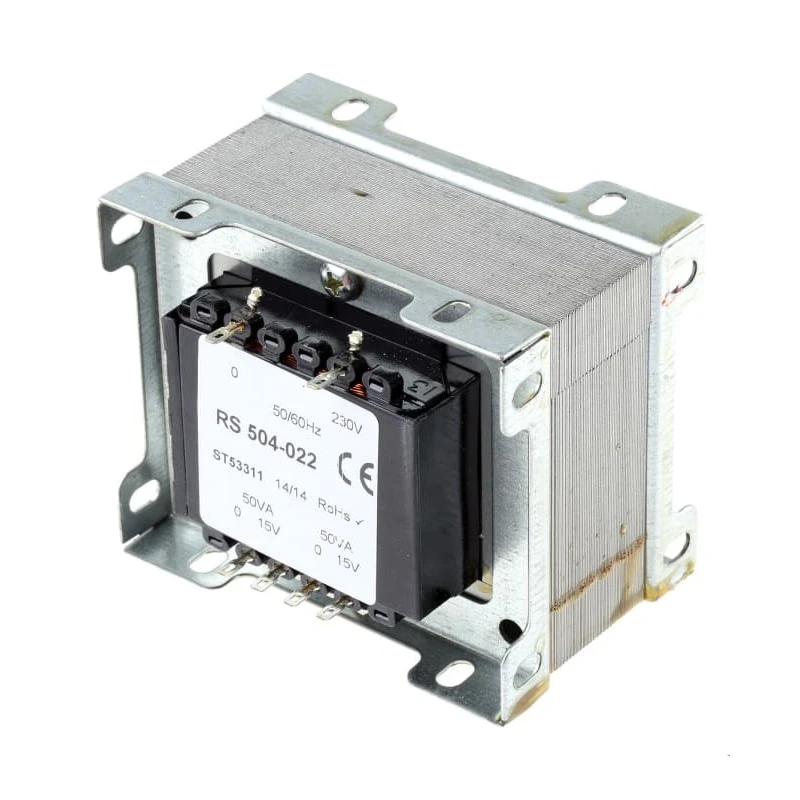

RS PRO 2 Output Chassis Mount Transformer 200 VA, 230 V ac Primary, 15 V ac Secondary, 504-022

RS PRO 504-022 is a high-performance, chassis mount transformer designed for demanding electrical and industrial applications. This transformer provides dependable power conversion, supporting a primary voltage of 230 V ac and delivering two secondary outputs of 15 V ac. Rated at 200 VA, it can efficiently drive loads in control panels, laboratory systems, and automation equipment.

The transformer features two independent secondary windings, which may be connected in series or parallel to offer varied output voltage and current options for flexibility in circuit design. Its chassis mount frame ensures that installation is stable and secure, with compact physical dimensions making it suitable for environments with space constraints. The robust construction supports operation in ambient temperatures from -30°C up to 70°C, allowing use in both industrial and laboratory settings.

RS PRO 504-022 complies with major international standards, including ASNZS 61558..6, IECBSEN 615584, CE, and RoHS, ensuring product safety and quality. Optional terminal shrouds can be fitted for added protection, especially in applications requiring enhanced safety.

Typical applications include electronic control panels, instrumentation, process automation, laboratory setups, and any context where reliable AC power isolation and step-down conversion are required. Its two-output flexibility is particularly useful when multiple voltage rails are needed or when increased current output can be achieved through appropriate winding configuration.

The transformer provides reliable power conversion for electronic and industrial circuits. Two independent 15 V ac secondary outputs may be connected in series or parallel. 200 VA power rating suitable for moderate to heavy-duty requirements.

Operates efficiently with a wide ambient temperature range. Robust, compact chassis mount construction supports secure installation. Compliance with multiple international standards including CE and RoHS. Gross weight of 2.8 kg offers stability.

This transformer is ideal for commercial, laboratory, and industrial installations, offering both flexibility and assurance of quality, with the support of RS PRO's established reputation in electronic components. Browse more Chassis Mount Transformers and RS PRO products at EnvMart for tailored solutions to your power conversion requirements.
