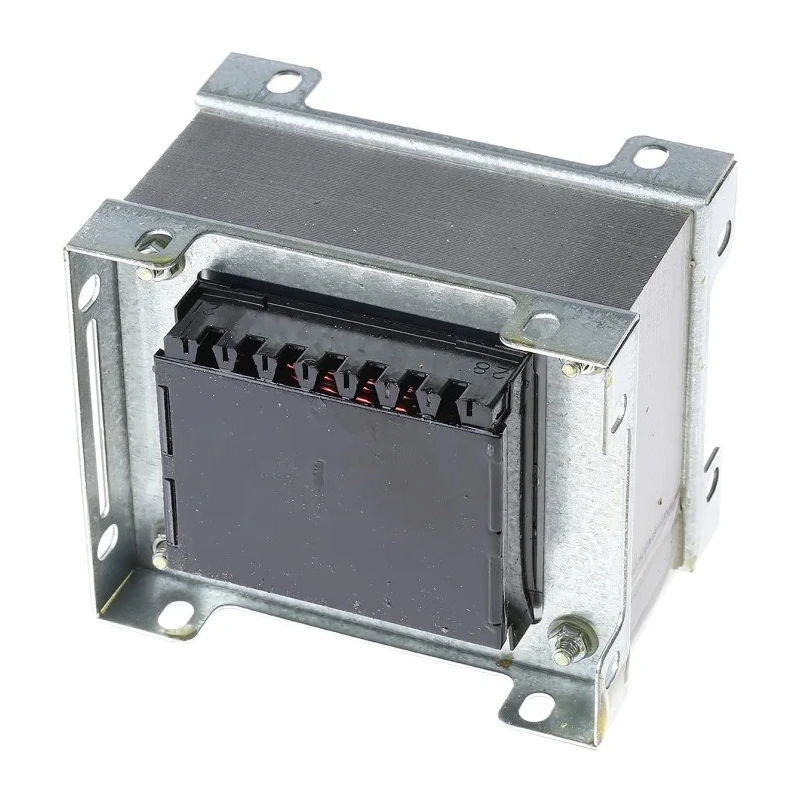

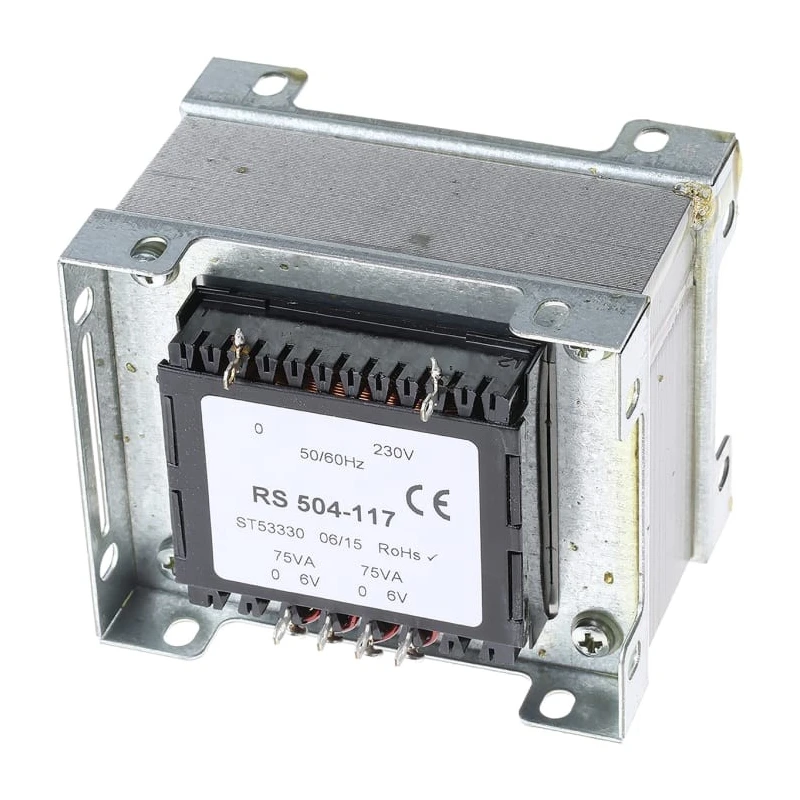

RS PRO Chassis Mount Transformer 2 Output, 150 VA, 230V AC Primary, 6V AC Secondary, 504-117

RS PRO 504-117 Chassis Mount Transformer is a high-quality dual-output unit engineered for reliable performance in electrical, industrial, and laboratory settings. With a primary voltage rated at 230 V AC and a secondary voltage output of 6 V AC, this transformer delivers robust power conversion for equipment requiring stable low-voltage supply.

The compact chassis-mount design makes installation straightforward, even in tightly packed control panels or machinery cases. Its 150 VA power rating ensures the transformer can handle operational loads efficiently without compromising stability. Two independent secondary windings are provided, which can be connected either in series or parallel to accommodate a range of output voltage and current requirements, increasing flexibility for diverse application scenarios.

Operational safety and quality are backed by comprehensive international certifications, including AS/NZS 61558.2.4, IEC 61558-1, BS/EN 61558-2-6, BS 3535, RoHS, CE, and EN 60742. These standards underline the product's suitability for demanding environments such as manufacturing, water treatment controls, industrial automation, laboratory instrumentation, and advanced electronics assembly.

The transformer is engineered for continuous operation across a wide temperature range, from a minimum of 30°C up to a maximum of 70°C. It operates effectively at both standard industrial frequencies of 50 Hz and 60 Hz, ensuring compatibility with global electrical infrastructure. The sturdy mechanical build (length 100 mm, width 82 mm, depth 82 mm) is complemented by a gross weight of 2 kg, providing solid stability for fixed installations.

Optional terminal shrouds are available for enhanced safety and ease of connection for lower VA models; this model supports comprehensive safety integration.

Typical industrial applications include power conditioning for pilot devices, instrumentation circuits, process control panels, low-voltage lighting, and interface modules. Laboratory uses encompass power isolation, custom voltage setups for test benches, and equipment prototyping. Its compliance with stringent standards guarantees usability for export and regulated installations.
