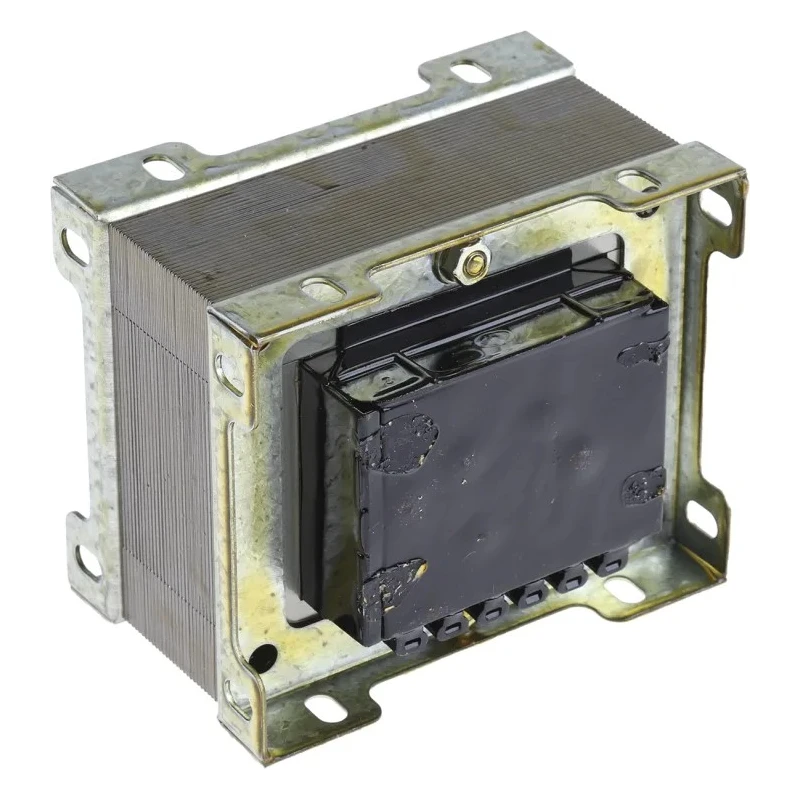

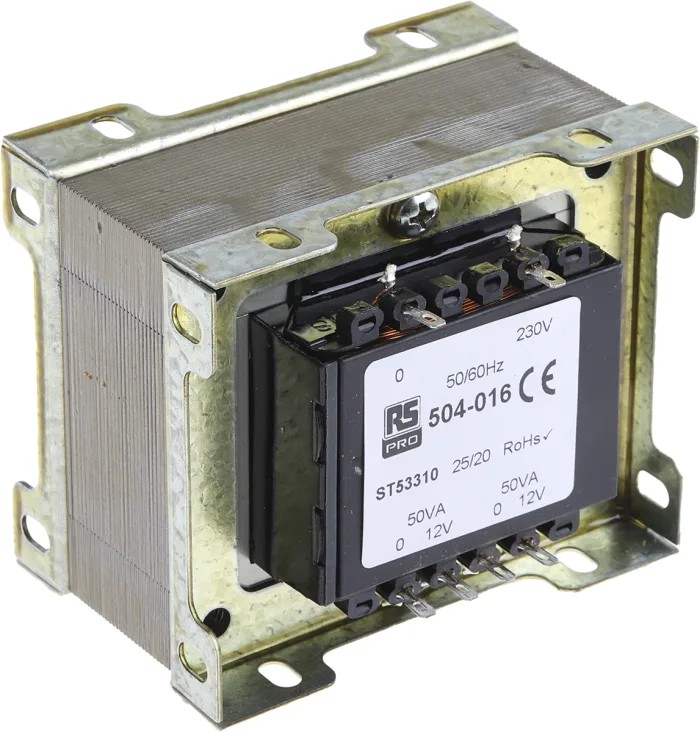

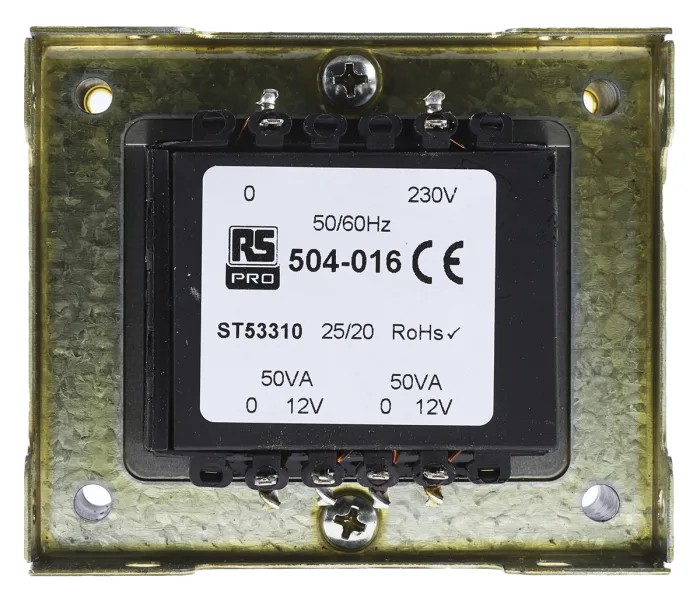

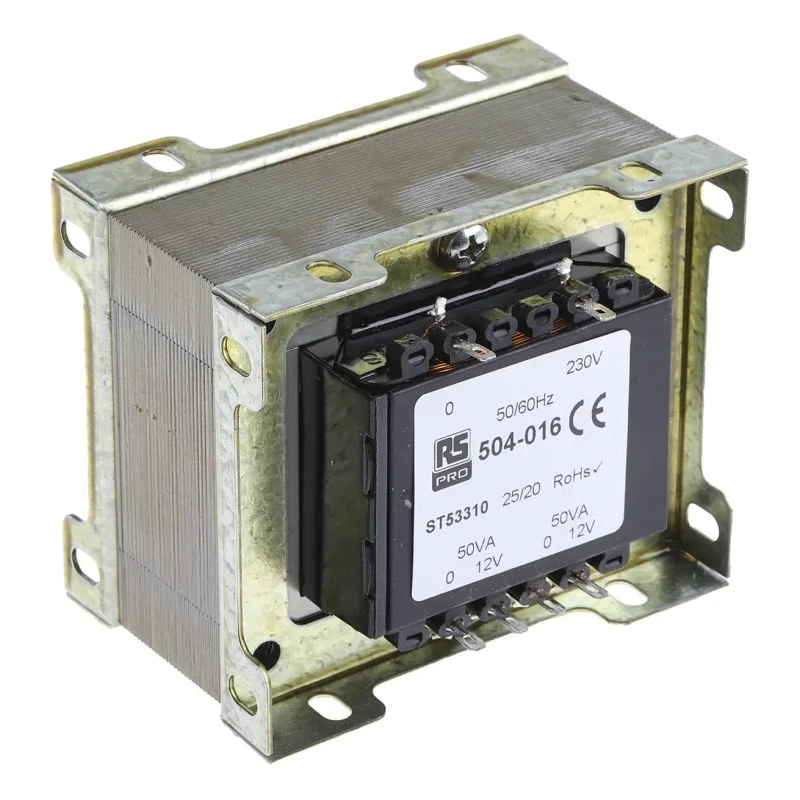

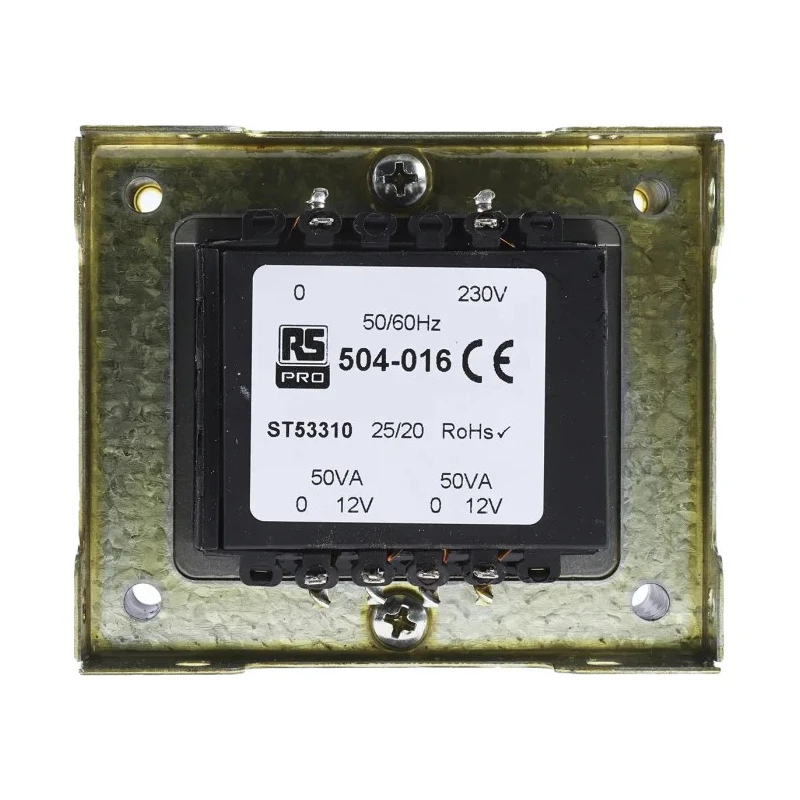

RS PRO Chassis Mount Transformer 2 Outputs 200 VA 12 V AC 230 V AC 504-016
Specifications
| Country of Origin | Poland |
|---|---|
| Brand | RS PRO |
| Length | 89mm |
| Model | 504-016 |
| Depth | 75mm |
| Gross Weight | 2.8kg |
| Width | 68mm |
| Termination | Solder Tag |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -30°C |
| Number of outputs | 2 |
| Frame Construction | Chassis Mount |
| Primary Voltage | 230 V ac |
| Secondary Voltage | 12 V ac |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Walsall Transformers 100VA 2 Output Chassis Mounting Transformer, 12V acBrand | Walsall Transformers |
Key Features
- Provides reliable power transformation with 200 VA capacity.
- Dual output design supporting versatile connection options.
- Primary voltage rated at 230 V AC for standard mains supply.
- Secondary output delivers 12 V AC for low voltage requirements.
- Full varnish impregnation and robust chassis mount construction.
- Operates between -30°C and 70°C for wide environmental compatibility.
- Tested in accordance with BS3535 and EN 60742 standards.
- Suitable for electromagnetic, relays, pumps, speed changers, and heating elements.
Product Description
RS PRO 504-016 Chassis Mount Transformer is designed to provide safe and reliable power conversion for a wide range of industrial, laboratory, and electronic control applications. This transformer features a durable chassis mount construction, making it ideal for panel-mount installations where stable and secure electrical connection is critical.
This unit offers a primary voltage of 230 V AC and a secondary voltage of 12 V AC across two outputs, making it suitable for applications that require low-voltage power delivery. With a rated power of 200 VA, it provides sufficient capacity for powering electromagnetic systems, relays, pumps, speed changers, and heating elements.
The transformer is constructed with a fully shrouded double section bobbin and full varnish impregnation for enhanced durability and insulation. It includes solder tag termination, simplifying connectivity and ongoing maintenance, and incorporates multi-hole frame fixing for flexible and secure mounting.
RS PRO Chassis Mount Transformers have undergone thorough electrical and flash testing in accordance with BS3535 and EN 60742 standards, ensuring optimal safety, performance, and compliance for industrial environments. The operational temperature range from -30°C to 70°C allows for deployment in challenging conditions, supporting reliable performance in laboratories, manufacturing plants, HVAC panels, and commercial installations.
This transformer is tested to meet ASNZS 61558..6, ASNZS 61558.1, ASNZS 61558..4, IECBSEN standards, and carries CE and RoHS compliance. Optional terminal shrouds are available for certain VA ranges to further enhance installation flexibility.
200 VA capacity for industrial-grade power transformation. Dual secondary windings, connectable in series or parallel for tailored voltage and current outputs. Wide operational temperature range for demanding environments.
Industrial applications include electromagnetic devices, electronic control systems, relays, pumps, and heating elements. High safety assurance via comprehensive electrical and flash testing. Browse more RS PRO industrial transformers and discover chassis mount solutions for complex electrical requirements on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary voltage rating of this transformer is 230 V AC, suitable for standard mains supply.
The secondary voltage output of this model is 12 V AC, designed for low voltage requirements.
This transformer has a rated power capacity of 200 VA, making it suitable for various industrial applications.
It operates within a temperature range of -30°C to 70°C, allowing for use in diverse environmental conditions.
This model features two outputs, enabling versatile connection options for different applications.
It uses solder tag termination, which simplifies connectivity and maintenance.
The dimensions are 89mm in length, 75mm in depth, and 68mm in width.
It has been tested in accordance with BS3535 and EN 60742 standards, ensuring safety and performance compliance.
It is suitable for powering electromagnetic devices, relays, pumps, speed changers, and heating elements.
The transformer features a chassis mount construction, ideal for panel-mount installations.
The gross weight of this transformer is 2.8 kg, which is important for installation considerations.
Yes, it carries CE and RoHS compliance, ensuring it meets required safety and environmental standards.
