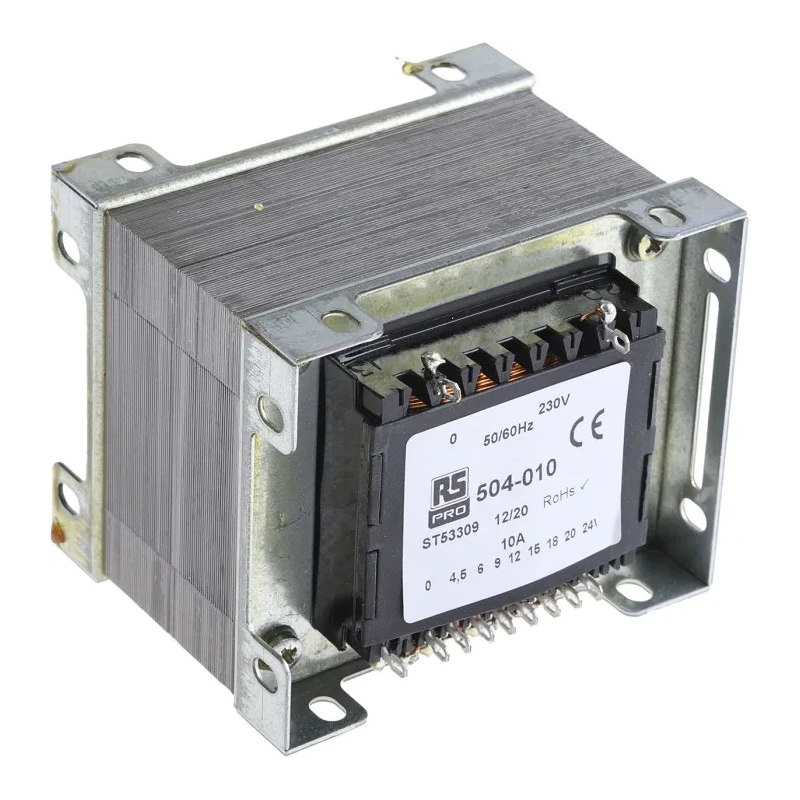

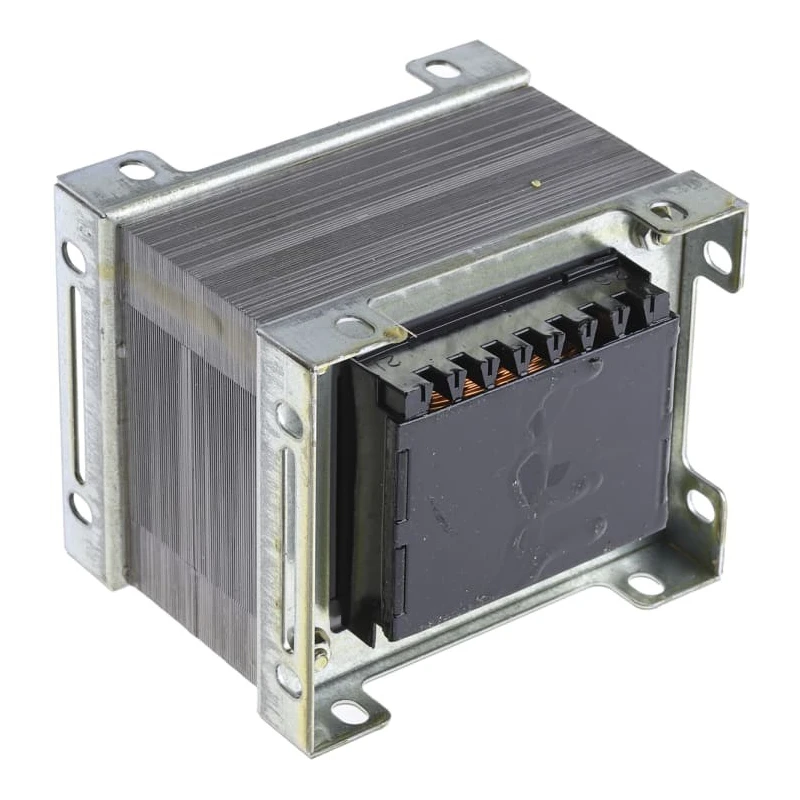

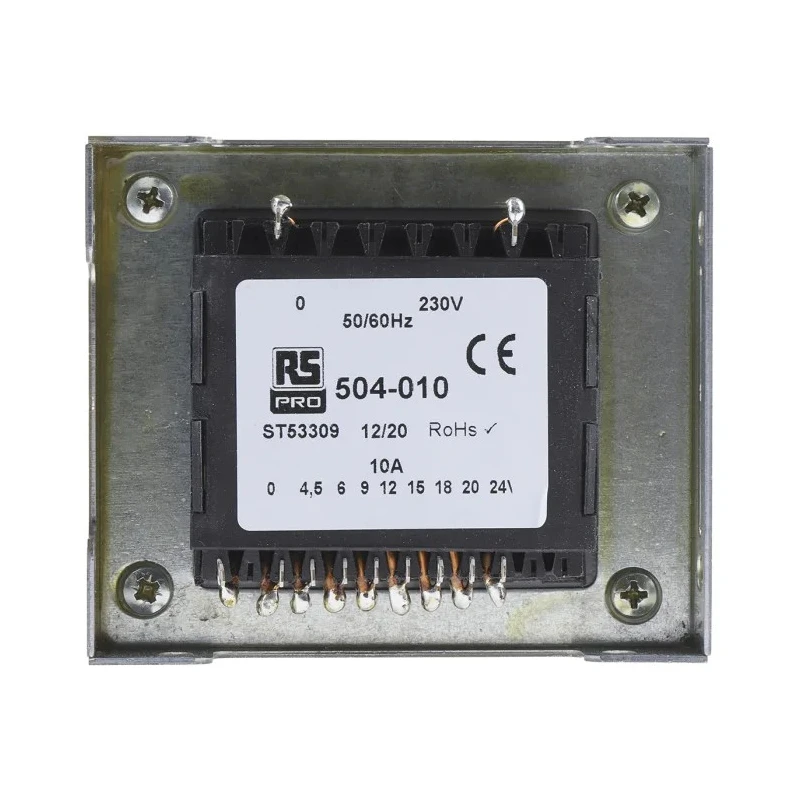

RS PRO Chassis Mount Transformer 1 Output 240 VA, Primary 230 V AC, Multi-Tapped Secondary, IEC 61558-2-6 504-010

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Chassis Mount Transformer 1 Output 240 VA, Primary 230 V AC, Multi-Tapped Secondary, IEC 61558-2-6 504-010

Name: RS PRO Chassis Mount Transformer 1 Output 240 VA, Primary 230 V AC, Multi-Tapped Secondary, IEC 61558-2-6 504-010
Brand: RS PRO
SKU: 86249
Price: 238.02 USD
Availability: InStock



Category Chassis Mount Transformer Brand RS PRO Condition New

Specifications

Country of Origin	Poland
Brand	RS PRO
Length	100mm
Model	504-010
Depth	82mm
Gross Weight	2.8kg
Width	92mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-30°C
Number of outputs	1
Standards/Approvals	IEC 61558-2-6
Primary Voltage	230 V ac
Secondary Voltage	12 V ac, 18 V ac, 20 V ac, 24 V ac, 4.5 V ac, 6 V ac, 9 V ac
Minimum Operating Frequency	50Hz
Maximum Operating Frequency	60Hz
RS PRO 1 Output 100 VA Chassis Mount Transformer, IEC 61558-2-6Brand	RS PRO

Key Features

Provides a single output with 240 VA rated power for efficient mains voltage transformation.
Features a primary winding rated at 230 V AC for standard electrical systems.
Robust chassis mounting frame facilitates straightforward integration into panels and equipment.
Designed in compliance with IEC 61558-2-6 for consistent safety and quality standards.
Wide operating temperature range from minus 30°C to plus 70°C ensures adaptability in demanding environments.
Supports electromagnetic, pump, relay and heating element operations in industrial and laboratory settings.

Product Description

The RS PRO 504-010 Chassis Mount Transformer is engineered to provide dependable electrical transformation for a wide range of industrial and laboratory applications. Featuring a robust single output with a power rating of 240 VA, this high-quality transformer delivers isolation and voltage conversion across multiple tapped secondary voltages for maximum versatility.

The primary winding is rated at 230 V AC, compatible with standard mains electrical systems. Its multi-tapped secondary outputs - 4.5 V AC, 6 V AC, 9 V AC, 12 V AC, 18 V AC, 20 V AC, and 24 V AC - enable the transformer to power various device types and equipment configurations. This flexibility makes it ideal for electromagnetic equipment, relays, pumps, speed changers and heating elements.

Built with a durable chassis mounting frame, the transformer is designed for straightforward integration into panels, enclosures and industrial equipment. Its construction includes a fully shrouded double section bobbin and full varnish impregnation, enhancing mechanical strength and electrical insulation. Multi-hole frame fixing ensures secure and adaptable installations.

The transformer features solder tag terminations for easy electrical connection, and is tested for 100% electrical and flash integrity in accordance with BS3535 and EN 60742 regulations. Compliance with IEC 61558-2-6 further affirms its performance and safety for industrial use.

A wide operating temperature range - minus 30°C to plus 70°C - enables operation in harsh environments, while its compact dimensions (100 mm x 92 mm x 82 mm) and weight (2.8 kg) facilitate efficient placement in limited spaces. The transformer operates at frequencies between 50 Hz and 60 Hz, suitable for most global systems.

With a magnetic induction design between coils, the RS PRO 504-010 efficiently converts voltage levels without changing frequency, maintaining operational integrity across varied applications. Its reliable isolating properties make it a trusted solution in electronic and electrical control systems, laboratories, manufacturing process panels, HVAC systems, and commercial installations.

This transformer is manufactured in Poland, ensuring adherence to stringent European standards for electrical equipment. Whether powering industrial machinery or precision lab equipment, the RS PRO 504-010 is an essential component for electrical distribution and control.

Explore more Chassis Mount Transformers and RS PRO solutions within EnvMart's industrial electronics and electricals category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The primary voltage rating of this transformer is 230 V AC, making it compatible with standard mains electrical systems.

This model features multiple tapped secondary voltages: 4.5 V AC, 6 V AC, 9 V AC, 12 V AC, 18 V AC, 20 V AC, and 24 V AC.

The RS PRO 504-010 has a power rating of 240 VA, providing a single output for efficient voltage transformation.

It operates within a wide temperature range of -30°C to +70°C, allowing for use in demanding environments.

The dimensions of this transformer are 100 mm in length, 92 mm in width, and 82 mm in depth.

The weight of this transformer is 2.8 kg, facilitating efficient placement in limited spaces.

It features a robust chassis mounting frame designed for straightforward integration into panels and equipment.

The transformer is designed in compliance with IEC 61558-2-6, ensuring consistent safety and quality standards.

It is equipped with solder tag terminations for easy electrical connection.

This model is suitable for powering electromagnetic equipment, relays, pumps, speed changers, and heating elements in industrial and laboratory settings.

The transformer operates at frequencies between 50 Hz and 60 Hz, suitable for most global systems.

This transformer is manufactured in Poland, ensuring adherence to stringent European standards for electrical equipment.
