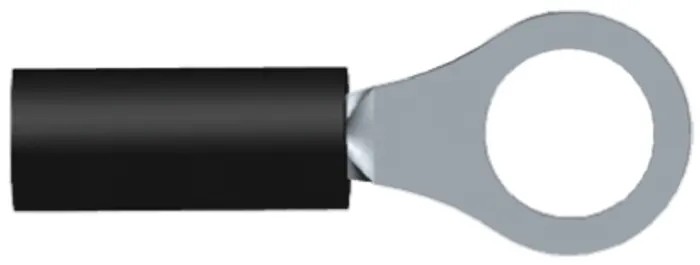

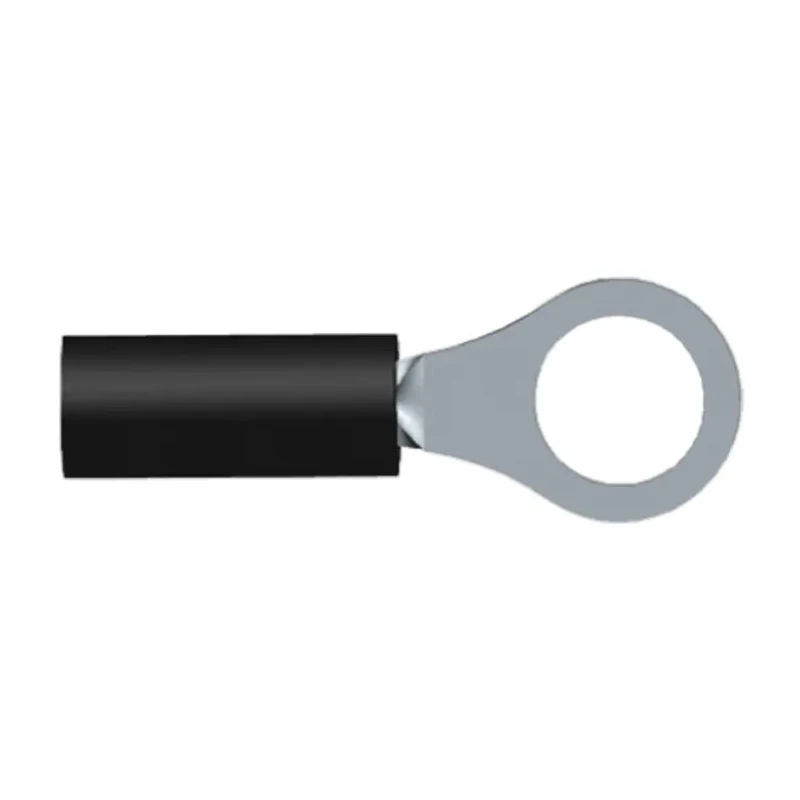

TE Connectivity PIDG Insulated Ring Terminal M4 Stud Size 24 AWG 22 AWG Wire Size Black 151440
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| THICKNESS | 0.79mm |
| Model | 151440 |
| Insulation | Insulated |
| Overall Length | 19.98mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 4.34mm |
| Stud Size | M4 |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Insulated with nylon material for enhanced durability and protection.
- Features a tin-plated contact and copper contact material ensuring corrosion resistance.
- Overall length of 19.98 mm and thickness of 0.79 mm for precise installation.
- Suitable for wire sizes between 0.26 mm² (24 AWG) and 0.4 mm² (22 AWG).
- Minimum inner ring diameter of 4.34 mm and outer ring diameter of 7.14 mm.
- Designed to operate up to a maximum temperature of 105°C.
- Its serrated wire barrel design improves contact and tensile strength after crimping.
Product Description
TE Connectivity 151440 PIDG Insulated Ring Terminal offers a high-quality electrical connector solution with an M4 stud size supporting 24 AWG to 22 AWG wire sizes. The black insulated ring terminal features a precision-formed copper body with a tin-plated copper contact that ensures optimal conductivity and resistance to corrosion. Insulated with durable nylon, it provides enhanced protection and long-lasting performance in demanding circuit environments.
The ring terminal is designed with serrations inside the wire barrel that provide excellent contact and tensile strength after crimping, improving reliability for both industrial and commercial electrical connections. Its copper sleeve offers additional wire insulation support and prevents wire fraying. The funnelled wire entry enhances fast wire insertion during production processes. Colour-coded sleeves aid in wire size and tooling identification, ensuring accurate and efficient wiring tasks.
Operating safely up to 105°C, these PIDG terminals comply with RoHS standards and meet or exceed several industrial electrical connection specifications, making them suitable for use in instruments, control systems, lighting, power supplies, panel boxes, transportation, lifting equipment, motors, aerospace, and appliance manufacturing.
The product originates from the United States and guarantees a new condition. High conductivity copper construction for reliable electrical contact. Nylon insulation ensures durability and protection. Tin plated copper contact provides corrosion resistance.
Serrated wire barrel for improved contact and tensile strength. Colour-coded black sleeve for easy wire identification. Compatible with 24 AWG to 22 AWG wire sizes. Suitable for M4 stud size applications. Overall precise length of 19.98 mm and thickness of 0.79 mm.
Maximum operating temperature of 105°C ensures safety. Meets RoHS compliance for environmental standards. Explore our range of power connectors and wire terminals designed to meet rigorous industrial and electrical application needs.
