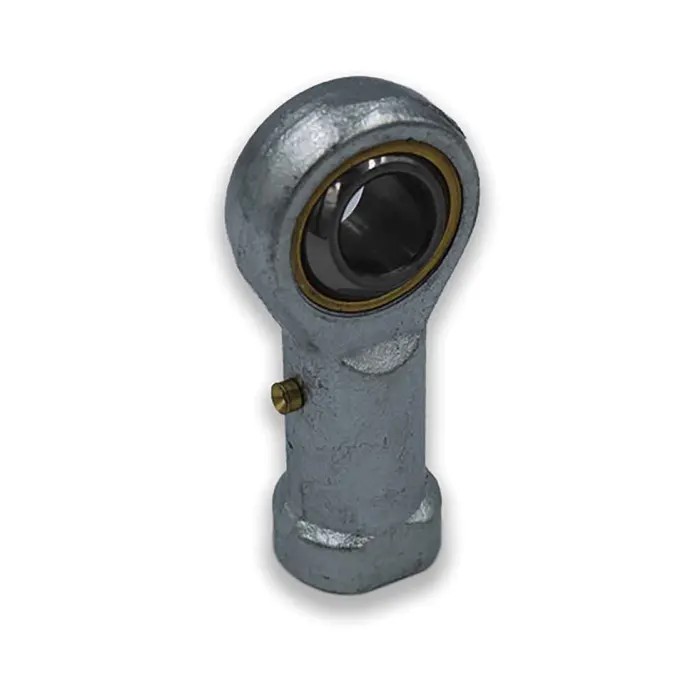

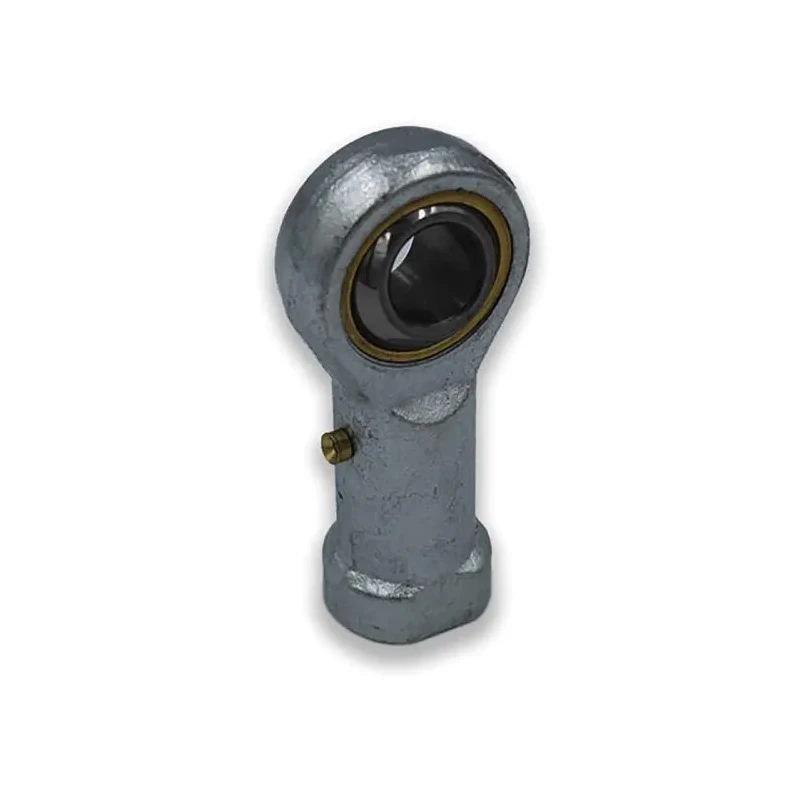

LDK M12 Female Carbon Steel Rod End, 12mm Bore, Metric Thread, Dynamic Load 10kN, PHS 12
Specifications
| Country of Origin | China |
|---|---|
| Brand | LDK |
| Material | Carbon Steel |
| Model | PHS 12 |
| Body | Carbon steel,clear Zinc plated |
| BALL | AISI 52100 bearing Steel, heat treated, HRC58-64, Precision ground, polished |
| Overall Width | 65mm |
| Outside diameter | 30mm |
| Connection Size | M12 Female |
| Bore Diameter | 12mm |
| Thread Standard | Metric |
| Static Load Rating | 22kN |
| Dynamic Load Rating | 10kN |
| Race | Brass |
| Sliding contact surfaces | Steel/Brass |
Key Features
- Features a female M12 thread ideal for metric systems.
- Constructed from carbon steel with a clear zinc-plated finish for durability and corrosion resistance.
- 12mm bore diameter enables compatibility with a range of shafts and mechanical linkages.
- Dynamic load rating of 10kN and static load rating of 22kN for reliable performance in demanding environments.
- Precision ground AISI 52100 bearing steel ball, heat treated to HRC58-64 for extended service life.
- Brass race and steel/brass sliding contact surfaces ensure low friction and smooth operation.
- Overall width is 65mm with an outside diameter of 30mm, fitting space-constrained assemblies.
- Suitable for mechanical, automation, and industrial machinery use.
Product Description
The LDK PHS 12 M12 Female Carbon Steel Rod End is purpose-built for mechanical coupling and pivoting applications where strength, durability, and precise motion are critical. Featuring a 12mm bore and female M12 threading, this rod end is well-suited for connecting moving mechanical parts in industrial, fluid power, and automation systems. The unit's carbon steel body has a clear zinc-plated coating, providing superior corrosion resistance and lasting reliability under demanding conditions.
At the heart of the rod end is a precision ground ball fabricated from AISI 52100 bearing steel, heat treated to achieve a hardness of HRC58-64. This process delivers excellent wear resistance and ensures smooth articulation. The sliding contact surfaces are steel/brass, while the race is constructed of durable brass, minimizing friction and supporting consistent performance even in high-load or high-cycle environments.
With a dynamic load rating of 10kN and a static load rating of 22kN, the PHS 12 is engineered for robust mechanical integrity in actuation linkages, control arms, hydraulic cylinders, machine tools, and a variety of motion control and automation assemblies. Its overall width of 65mm and outside diameter of 30mm allow for integration into compact assemblies where space efficiency is necessary.
The zinc-plated carbon steel construction increases longevity, even in environments prone to moisture or mild chemical exposure.
Typical applications include mechanical machinery, automotive linkages, agricultural equipment, robotics, process automation, and general industrial installations. The LDK PHS 12 is designed for high reliability in factories, workshops, production lines, heavy equipment, hydraulic and pneumatic systems, offering a cost-effective solution to demanding pivot and articulation challenges.
Discover more Rod End Bearings and industrial motion solutions under the LDK brand and the Industrial Tools & Equipment category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dynamic load rating of this rod end is 10kN, making it suitable for various mechanical applications.
The bore diameter of the LDK PHS 12 is 12mm, allowing compatibility with a range of shafts and mechanical linkages.
It is constructed from carbon steel with a clear zinc-plated finish for corrosion resistance, and features an AISI 52100 bearing steel ball that is heat treated to HRC58-64.
The static load rating for the LDK PHS 12 is 22kN, which provides reliable performance under stationary loads.
The overall width is 65mm and the outside diameter is 30mm, making it suitable for space-constrained assemblies.
This model features a female M12 thread, which is ideal for metric systems.
It is suitable for mechanical machinery, automotive linkages, agricultural equipment, robotics, and process automation.
The sliding contact surfaces are made of steel and brass, which minimize friction and support smooth operation even under high loads.
The LDK M12 Female Carbon Steel Rod End is manufactured in China.
The heat treatment process increases the hardness of the AISI 52100 bearing steel ball to HRC58-64, enhancing wear resistance and ensuring smooth articulation.
The race of this rod end is constructed from brass, contributing to its durability and performance.
Applications that require robust mechanical integrity, such as actuation linkages and hydraulic cylinders, can benefit from the dynamic load rating of 10kN.
