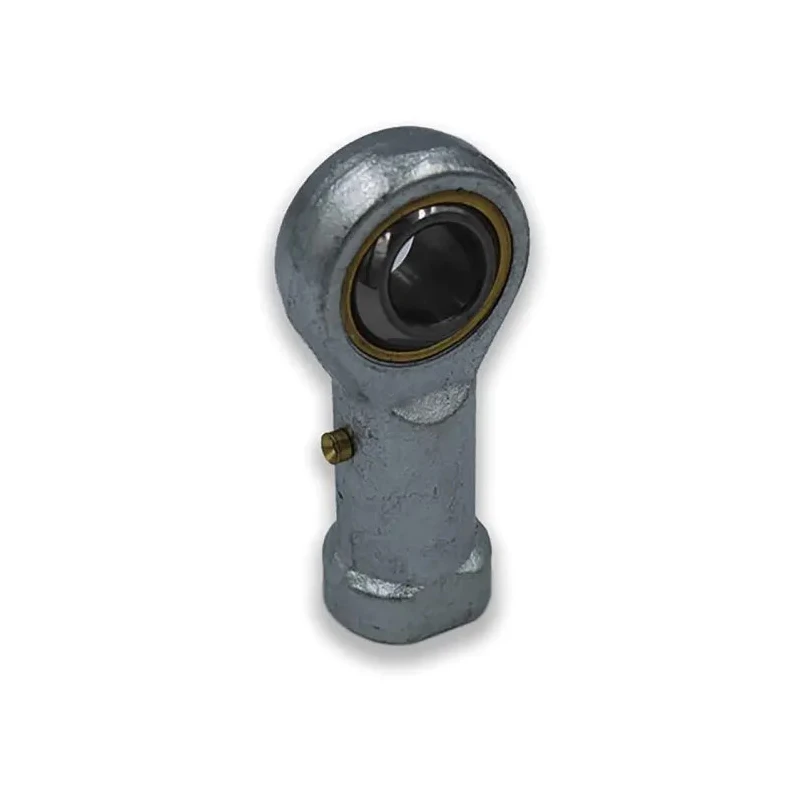

LDK Carbon Steel 5mm Bore Female Rod End, Metric Thread, Dynamic Load 2.5kN, Static Load 6.6kN PHS 5

LDK PHS 5 Female Rod End is a precision mechanical component designed for rotary bearing and housing applications. It features a 5mm bore diameter with an M5 female thread standard, making it an ideal choice for industrial machinery requiring reliable joint articulation.

The rod end housing is constructed from durable carbon steel with a clear zinc plating finish, providing excellent corrosion resistance and longevity in demanding environments. The bearing ball utilizes AISI 52100 bearing steel, heat treated to hardness levels of HRC58-64, precision ground, and polished to ensure smooth rotational movement and extended service life.

This rod end offers a dynamic load rating of 2.5 kN and a static load rating of 6.6 kN, making it suitable for various mechanical and fluid power tool applications involving moderate load conditions. The connection gender is female with a metric thread size, facilitating easy integration into equipment assemblies.

The outside diameter measures 16 mm with an overall width of 35 mm, ensuring compatibility within standard industrial tooling dimensions. The race is composed of brass, while sliding contact surfaces combine steel and brass to optimize wear resistance and operational smoothness.

Manufactured in China, this unit does not possess specific certifications or standards approvals but complies with metric thread conventions. Its robust construction and precise engineering make it suited for industrial, manufacturing, and mechanical applications requiring dependable rotary bearing components.

Constructed with carbon steel body featuring clear zinc plating. Ball made from heat-treated AISI 52100 bearing steel for enhanced durability. Rated for 2.5 kN dynamic and 6.6 kN static loads. 5mm bore with M5 female metric thread connection.

Outside diameter of 16mm and overall width of 35mm for precise fitting. Brass race and steel/brass sliding contact surfaces.

This LDK Rod End is ideal for use in industrial machinery, mechanical systems, fluid power applications, and maintenance or repair of equipment requiring precision rotary bearings. Explore our Rotary Bearings & Housing Units category for more quality mechanical components suited to your industrial needs.
