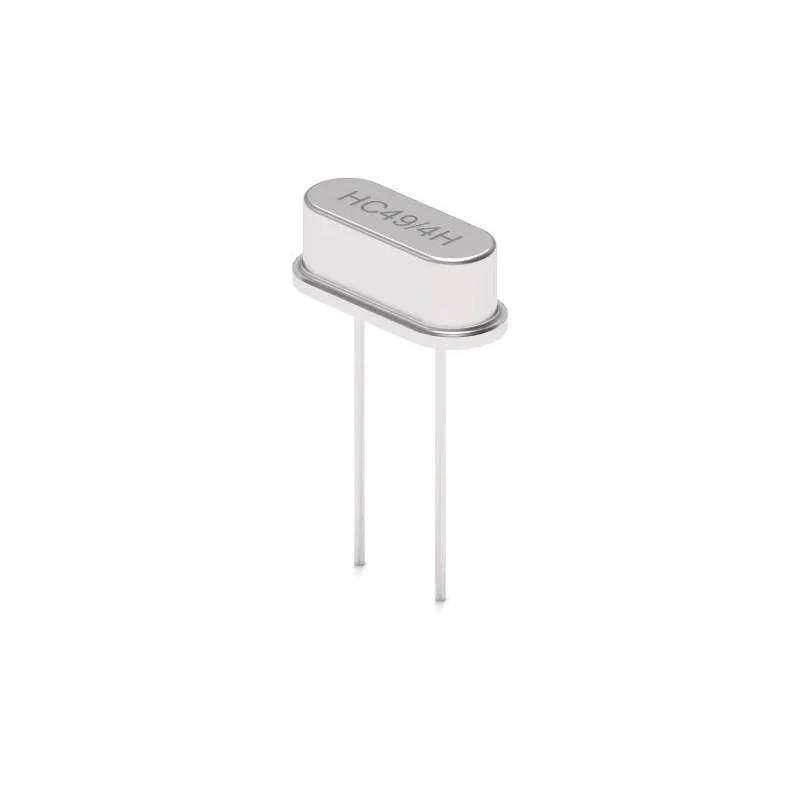

IQD 11.0592 MHz Crystal Unit ±30 ppm HC-49 2-Pin Through Hole Package LFXTAL003523B
Specifications
| Country of Origin | India |
|---|---|
| Brand | IQD |
| Height | 4.1mm |
| Length | 11.05mm |
| Model | LFXTAL003523B |
| Width | 4.7mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 70°C |
| Package Type | HC-49 |
| Minimum Operating Temperature | -20°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Standard Frequency | 11.0592MHz |
| Load Capacitance | 30pF |
| Series Resistance | 40Ω |
| IQD 11.0592MHz Crystal Unit ±30ppm HC49/4H 2-Pin 11.05 x 4.7 x 4.1mmBrand | IQD |
Key Features
- Standard frequency of 11.0592 MHz ensures precise oscillation.
- Load capacitance rated at 30 pF suitable for typical circuit demands.
- Compact dimensions of 11.05 mm length, 4.7 mm width, and 4.1 mm height.
- Operates reliably between -20°C and 70°C operating temperature range.
- Hermetically sealed in an inert atmosphere for long-term reliability.
- Series resistance of 40 Ohms minimizes signal loss in circuits.
- Industry standard HC-49 package facilitates easy PCB installation.
- Complies with RoHS standards ensuring environmental safety.
Product Description
IQD LFXTAL003523B 11.0592 MHz Crystal Unit is a through-hole mounted, hermetically sealed component housed in an HC-49 package with 2 pins, engineered to provide stable frequency oscillation at 11.0592 MHz with ±30 ppm frequency tolerance. This crystal unit features a 30 pF load capacitance and a series resistance of 40 Ω, ensuring minimal signal loss and high precision in various electronic oscillator and resonator circuits.
The compact physical dimensions of 11.05 mm length, 4.7 mm width, and 4.1 mm height make it suitable for tight space applications on printed circuit boards. It operates effectively in harsh temperature ranges from -20°C to 70°C, making it reliable for industrial, laboratory, and commercial electronics.
This model is RoHS compliant, adhering to environmental protection directives, and uses resistance welded glass-to-metal seals to ensure hermetic sealing within the inert atmosphere package, which contributes to long-term durability and stable performance.
Typical applications include use in timing circuits, frequency generation, and stabilization within communications equipment, control systems, and other precision electronics. Its standard HC-49 leaded package mount type allows easy integration and replacement in through-hole PCB designs.
Standard frequency of 11.0592 MHz ensures precise oscillation. Frequency tolerance is ±30 ppm for accuracy in operation. Load capacitance rated at 30 pF suitable for typical circuit demands. Compact package of HC-49 with 2-pin through hole mounting.
Operates in temperature range from -20°C up to 70°C. Series resistance of 40 Ω minimizes signal loss. Hermetically sealed in an inert atmosphere ensures durability. Complies with RoHS environmental standards. Ideal for electronic oscillators and resonators in industrial applications.
Compact physical dimensions compatible with tight PCB layouts. Explore more electronic components and Crystal Units in the Electronics Components category at EnvMart for your precision circuit needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal unit is 11.0592 MHz, ensuring precise oscillation.
It has a load capacitance rated at 30 pF, suitable for typical circuit demands.
The dimensions of this model are 11.05 mm in length, 4.7 mm in width, and 4.1 mm in height.
It operates reliably between -20°C and 70°C, making it suitable for various environments.
This model is housed in an HC-49 package, which is a standard through-hole mount type.
The series resistance is 40 Ohms, which helps minimize signal loss in circuits.
Yes, it complies with RoHS standards, ensuring environmental safety.
This model features a 2-pin configuration for easy integration into circuits.
Typical applications include timing circuits, frequency generation, and stabilization in communications equipment and control systems.
The hermetic sealing in an inert atmosphere contributes to long-term reliability and stable performance of the crystal unit.
The maximum operating temperature for this model is 70°C.
The country of origin for this crystal unit is India.
