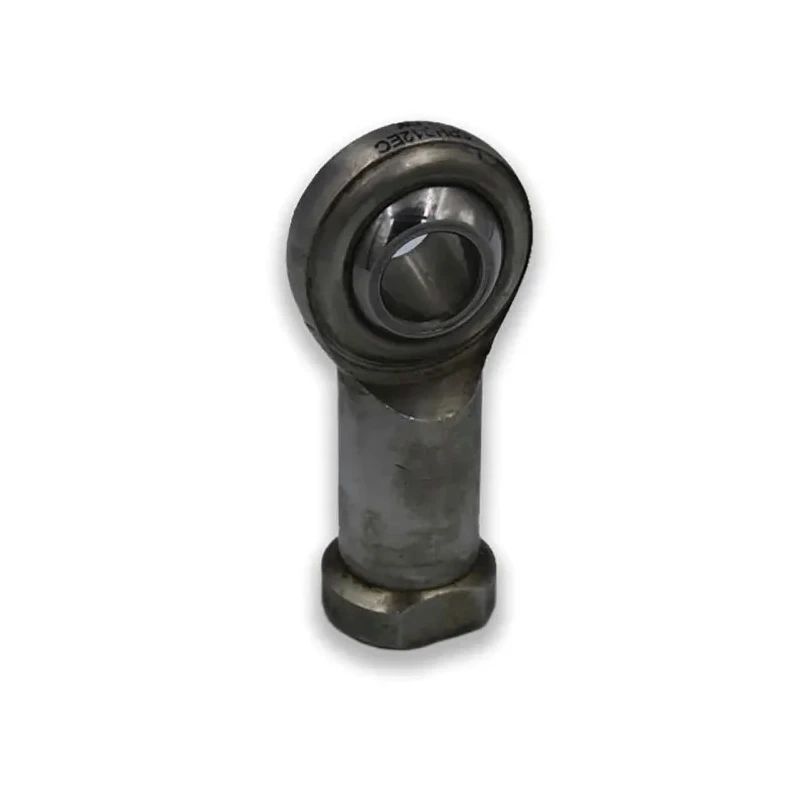

LDK 304 Stainless Steel M12 Female Rod End Bearing 12mm Bore Left Hand Thread SPHS12ECL x 1.25

LDK SPHS12ECL x 1.25 304 Stainless Steel Female Rod End Bearing with a 12mm bore and metric thread standard is designed for mechanical and fluid power applications requiring reliability and corrosion resistance.

This rod end bearing features a female M12 connection size with a left-hand thread, making it suitable for specialized assembly and orientation requirements. The body is constructed from robust 304 stainless steel, ensuring longevity in harsh industrial environments.

The ball is precision ground and polished, made from heat-treated 440C stainless steel with a minimum hardness of HRC56, offering excellent wear resistance and load handling capabilities. The bearing includes a PTFE composite race and steel/PTFE composite sliding surfaces to minimize friction and enhance operational life.

With a dynamic load rating of 13.5 kN and a static load rating of 22.7 kN, this rod end bearing supports demanding applications in sectors such as mechanical engineering, manufacturing machinery, and fluid power systems.

The dimensions, including a 30mm outside diameter and 65mm overall width, are optimized for compact spaces while providing strong performance. This high-quality stainless steel rod end bearing originates from China and is ideal for industrial, construction, and mechanical machinery use cases.

Constructed from corrosion-resistant 304 stainless steel for durability. Features a M12 female connection size for precise fitting. Includes a 12mm bore diameter suitable for metric applications. Equipped with a left-hand thread direction for specialized assembly needs.

Ball made from 440C stainless steel, heat treated to HRC56 minimum for superior hardness. Body and race designed with PTFE composite and steel/PTFE composite sliding surfaces to reduce wear. Dynamic load rating of 13.5 kN and static load rating of 22.7 kN for heavy-duty use.

Outside diameter of 30mm and overall width of 65mm for compact installation. Suitable for use in mechanical, fluid power, and rotary bearing applications. Browse EnvMart for a wide selection of Rod End Bearings and related mechanical components to meet your industrial equipment needs.
