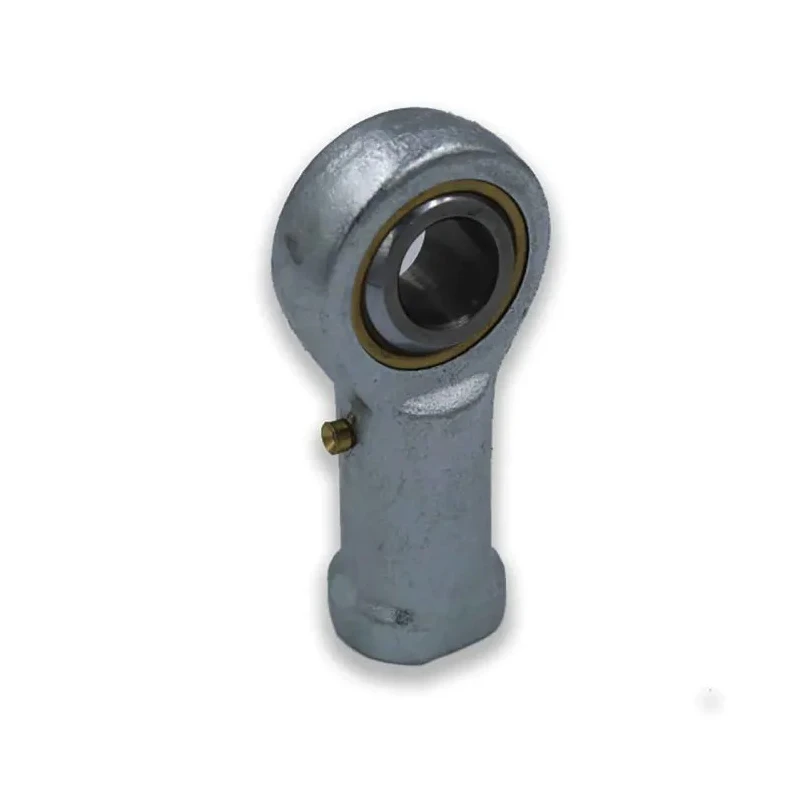

LDK Carbon Steel Female Rod End Bearing 9.52mm Bore 3/8 UNF Left Hand Thread PHSB6L

LDK PHSB6L Carbon Steel Female Rod End Bearing with a 9.52mm bore and 3/8 UNF left hand thread is engineered for reliable mechanical connections requiring precise load handling.

The body of the rod end is crafted from carbon steel and finished with clear zinc plating, providing excellent protection against corrosion in industrial environments. The ball component is made of AISI 52100 bearing steel which is heat treated to a minimum hardness of HRC56, precision ground, polished, and hard chromium plated, enhancing durability and smooth articulation.

The race is constructed from brass, complementing the steel/brass sliding contact surfaces that ensure reduced friction and long operational life. With a dynamic load rating of 8.2 kN and static load rating of 18.2 kN, this rod end bearing is suitable for rigorous applications in mechanical machinery, fluid power systems, and rotary bearing housing units.

Its female connection gender and left-hand thread conform to UNF thread standards. Key dimensional attributes such as a 25.4mm outside diameter and an overall width of 53.98mm provide compatibility and ease of integration.

This rod end bearing is made in China and meets the demands of industrial, manufacturing, and mechanical maintenance sectors requiring durable and precise rotary components. Carbon steel body with clear zinc plating for corrosion resistance.

Ball made from heat-treated and chromium plated AISI 52100 bearing steel. Brass race and steel/brass sliding contact surfaces enhance durability. 9.52mm bore with 3/8 UNF left hand female thread connection. Dynamic load rating 8.2 kN, static load rating 18.2 kN for high performance.

Overall width 53.98mm and outside diameter 25.4mm for precise fit.
