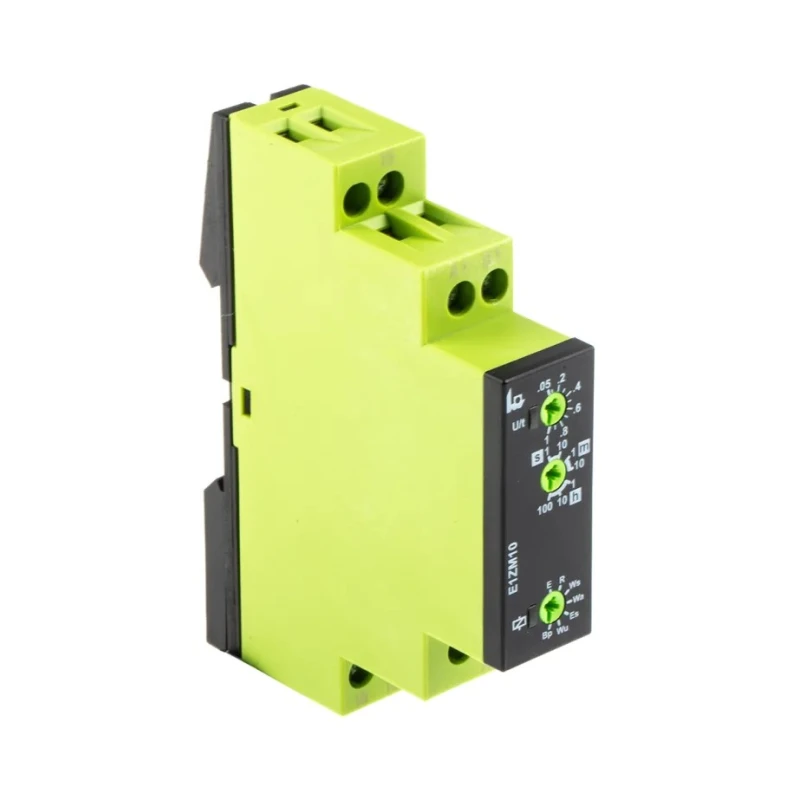

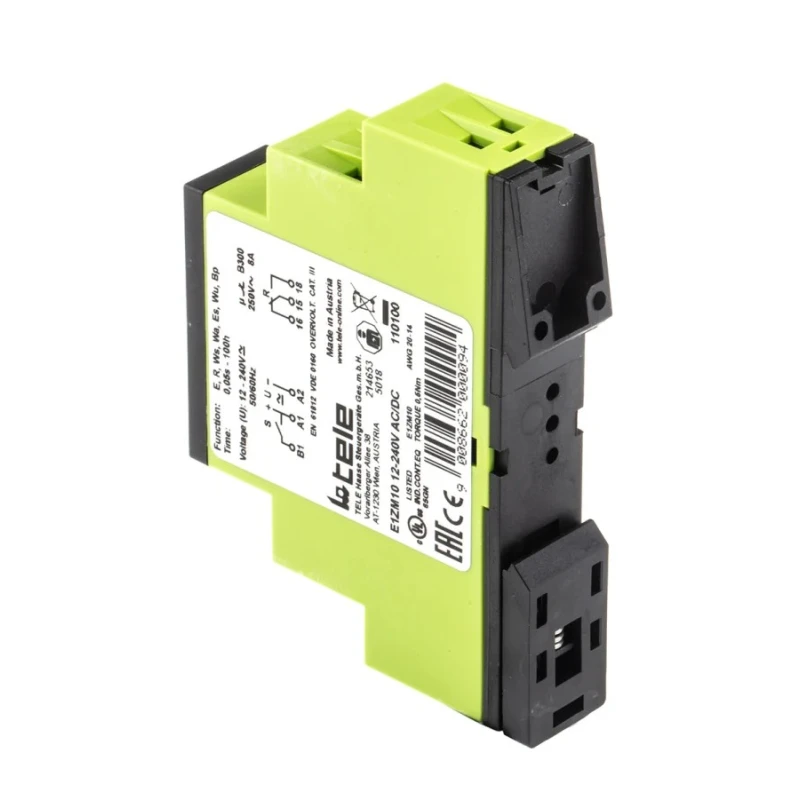

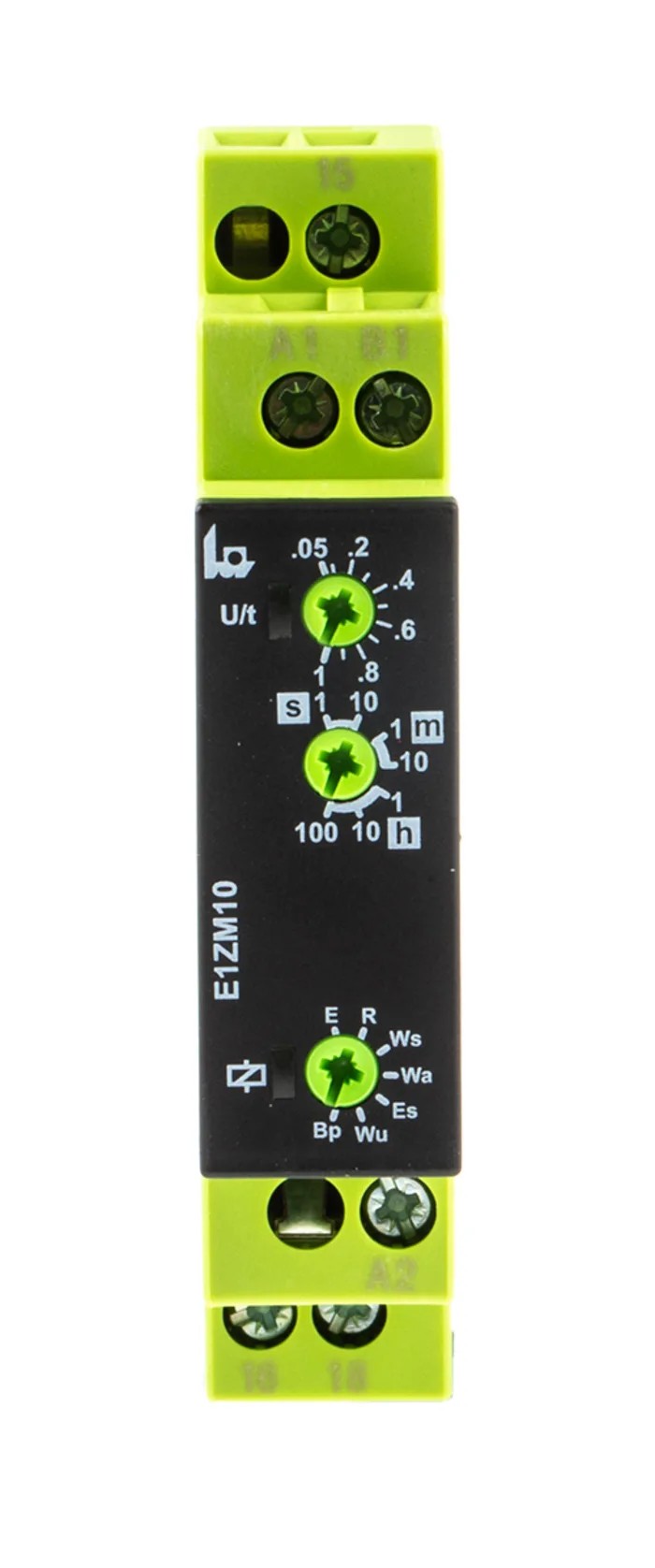

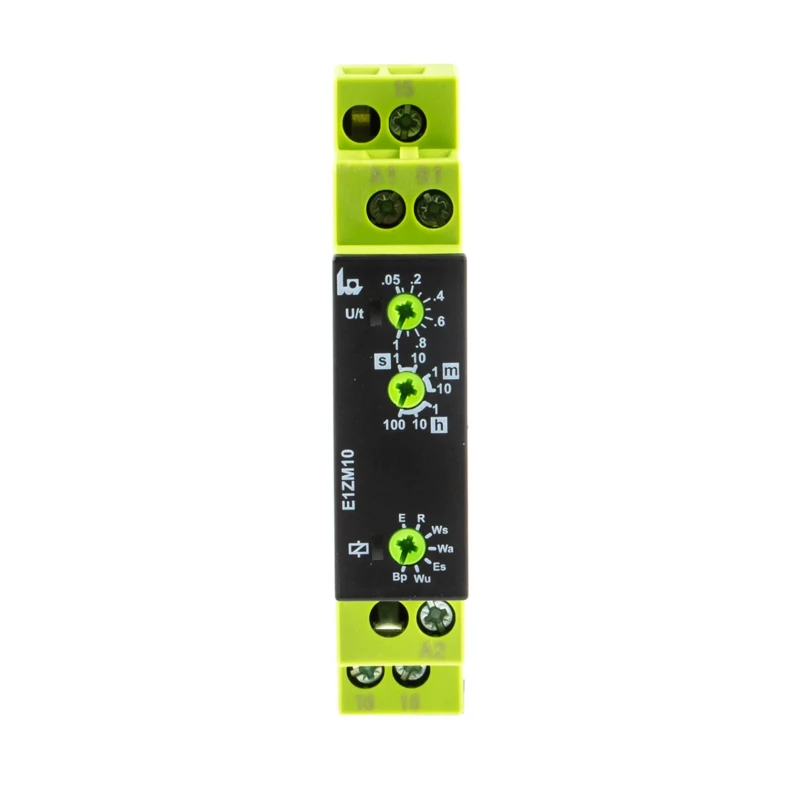

Tele Multifunction DIN Rail Timer Relay 1-Contact SPDT, 12-240 V AC/DC, 0.05 s to 100 h Timing Range E1ZM10

Tele E1ZM10 is a multifunction DIN Rail Timer Relay that provides precise electronic timing control with a 1-contact SPDT relay output. It operates over a broad voltage range of 12 to 240 V AC/DC, allowing flexible use in various industrial, automation, and process control applications. The timing range extends from as low as 0.05 seconds up to 100 hours, offering high versatility for delay and pulse timing needs.

This solid-state timer relay features a compact design with a durable self-extinguishing plastic housing rated IP40 with IP20 rated terminals, ensuring protection in demanding industrial environments. The device supports multiple timing functions including ON delay, OFF delay, flash pause first, single-shot leading and trailing edge options with or without control contact. A knob is provided for simple timing adjustment.

Its robust relay output is capable of switching 8 A at 250 VAC with a single pole double throw (SPDT) contact configuration. Installation is simplified with DIN rail mounting and screw terminals for secure wiring. With operating temperatures from -25°C up to 55°C and a reset time of 100 ms, the E1ZM10 timer relay is suitable for reliable automation controls in textiles, chemical industries, mining, irrigation, raw material handling, food and beverage processing, and various industrial process controls.

Compact solid-state design with high precision. Wide voltage supply from 12 V to 240 V AC/DC. Extensive multifunction timing range from 0.05 s to 100 h. Durable IP40 housing with IP20 rated terminals for safety. LED status indication for easy operational monitoring.

Screw terminal connections for simple wiring. Operating temperature range: -25°C to 55°C. Single pole double throw (SPDT) contact, 8 A @ 250 VAC output. Reset time: 100 ms. Designed for DIN rail mounting for quick installation.

Ideal for diverse industrial automation and process control environments.

Tele timer relays are engineered for broad industrial use, including in laboratory automation, manufacturing lines, HVAC systems, and water treatment plants. The E1ZM10 model’s multifunction capabilities and broad voltage compatibility provide adaptability for both new and retrofit applications.
