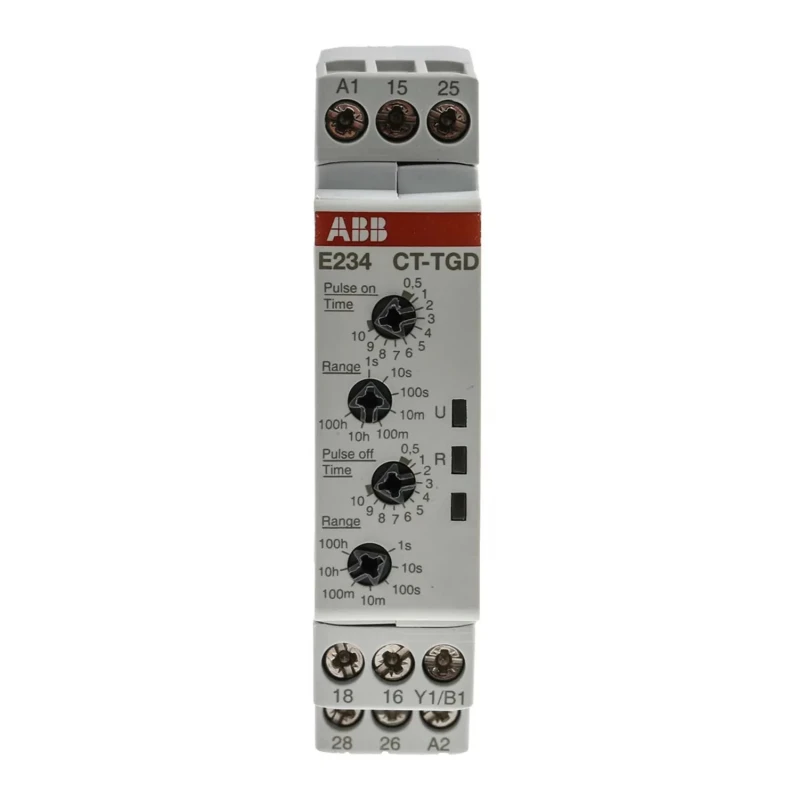

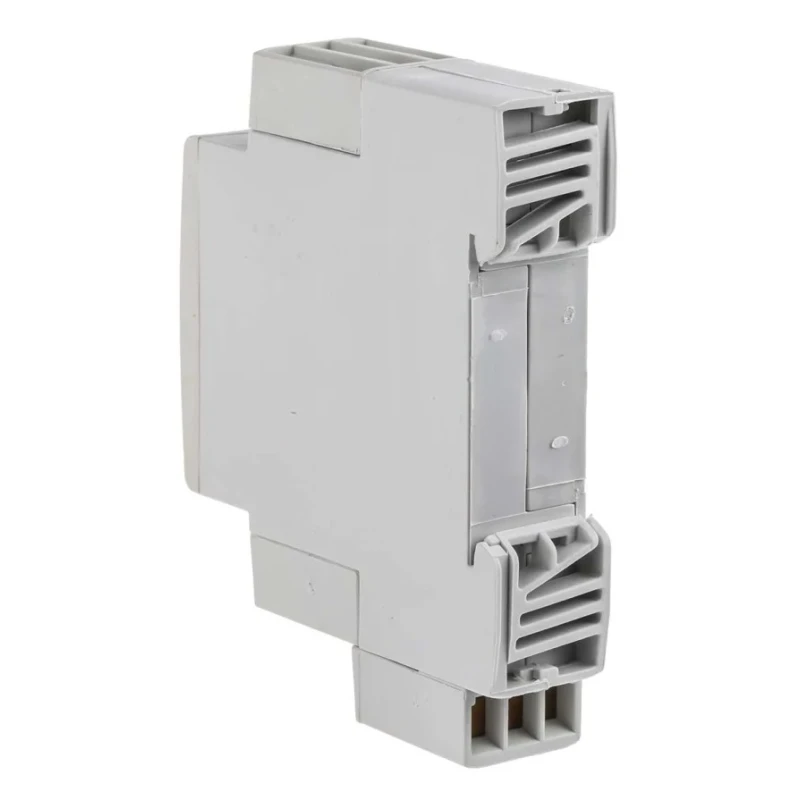

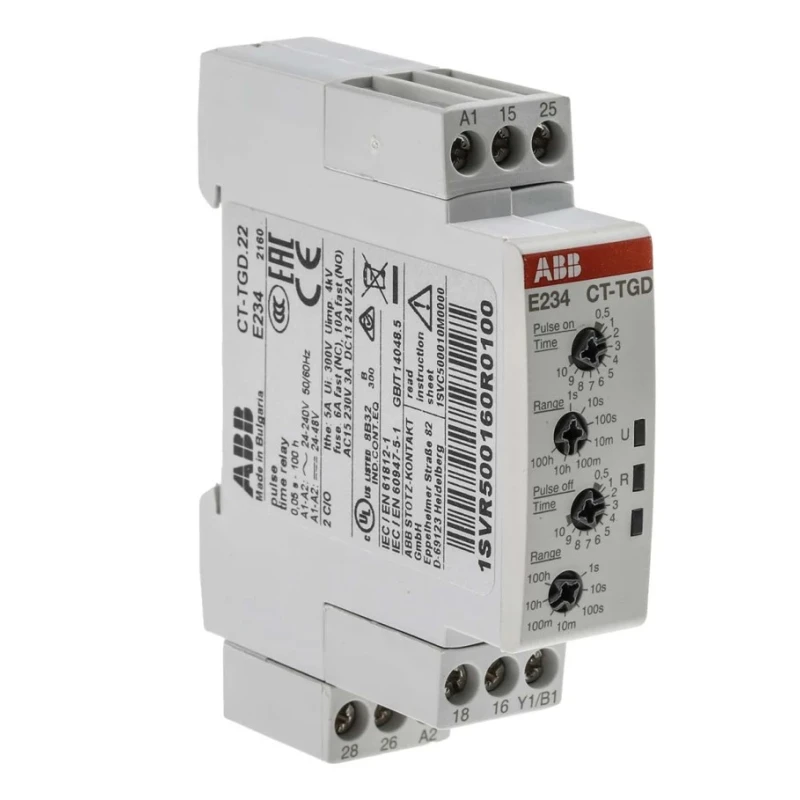

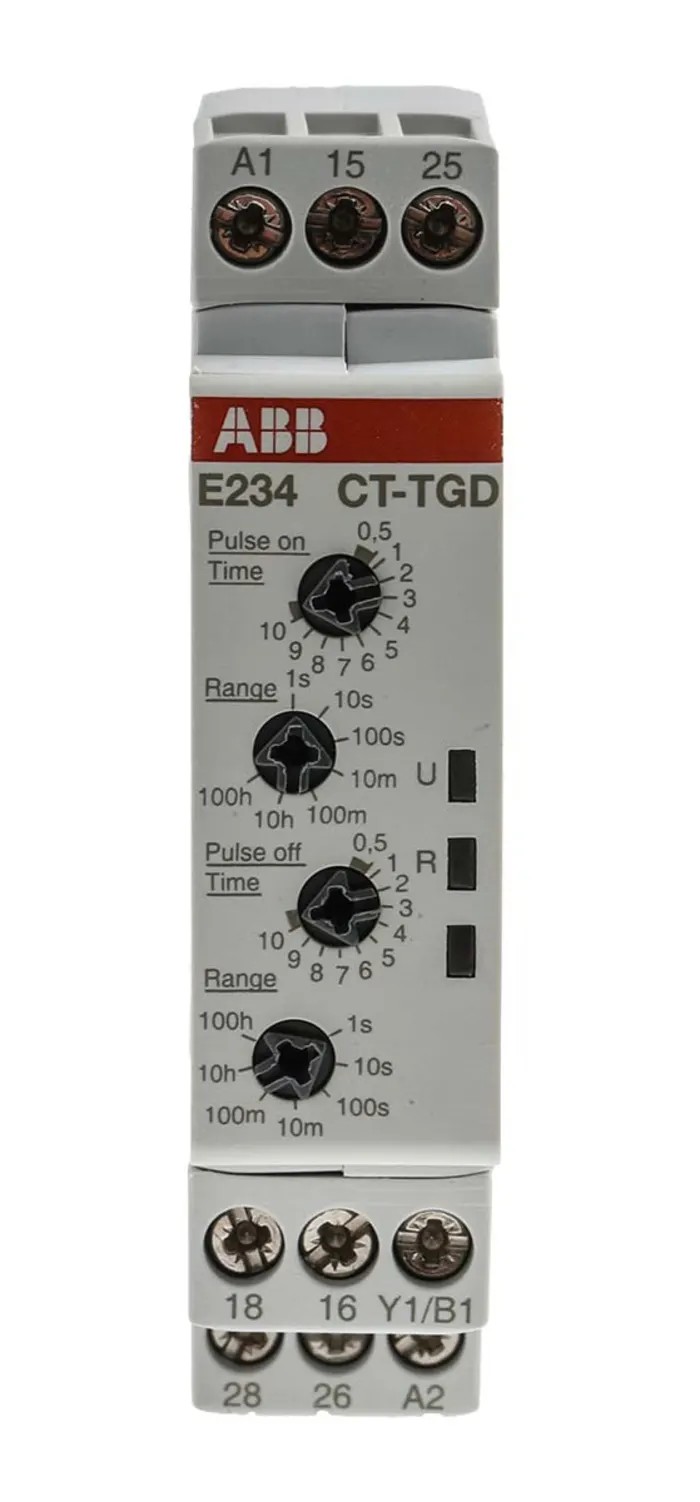

ABB DIN Rail Timer Relay, 2-Contact, 48 V DC, 24/240 V AC, DPDT, 0.05 s to 100 h, 1 Function 1SVR500160R0100 - CT-TGD.22

The ABB 1SVR500160R0100 - CT-TGD.22 DIN Rail Timer Relay is a robust and versatile relay designed for precise time-based control in automation environments. Featuring dual contacts in a DPDT (Double Pole Double Throw) configuration, this relay can handle complex switching applications within industrial panels and control systems. The timing interval can be set anywhere between 0.05 seconds and 100 hours, making it highly adaptable for both rapid and extended operational cycles.

This unit supports input voltages of 48 V DC and both 24 V AC and 240 V AC, ensuring compatibility with a broad array of control circuits. The relay is compact and easily mounts onto a DIN rail, streamlining installation within electrical panels and machinery enclosures. Its maximum contact current rating of 3A allows control of moderate electrical loads, suitable for numerous automation tasks.

The relay's design includes screwdriver slot timing adjustment for fine-tuned delay settings and features clearly labelled screw terminals for secure and organized wiring. To enhance user experience and system maintenance, the timer relay includes front-facing LED indicators that quickly inform operators of power supply and input status at a glance. Its sturdy construction is rated to operate reliably across ambient temperatures from -20°C up to 60°C, with an IP50 protection level to guard against dust ingress.

Typical applications for the ABB DIN Rail Timer Relay include time-delay operations in motor starters, automation control in assembly plants, conveyor and materials handling, and equipment shutdown sequencing. Thanks to its flexible configuration and reliable operation, it is a smart choice for system integrators and maintenance professionals in industrial, building automation, and HVAC installations.

Compliant with CE and RoHS standards, the relay also offers peace of mind regarding safety and environmental requirements. With its slim profile and compact footprint, it is well suited for use in space-constrained panels or retrofit upgrades.

For engineers reviewing relay solutions within the Relays & Contactors category, especially in the Timer Relay segment, this ABB unit delivers dependable time-based control. Discover more Timer Relays and ABB solutions within the EnvMart industrial automation catalog.
