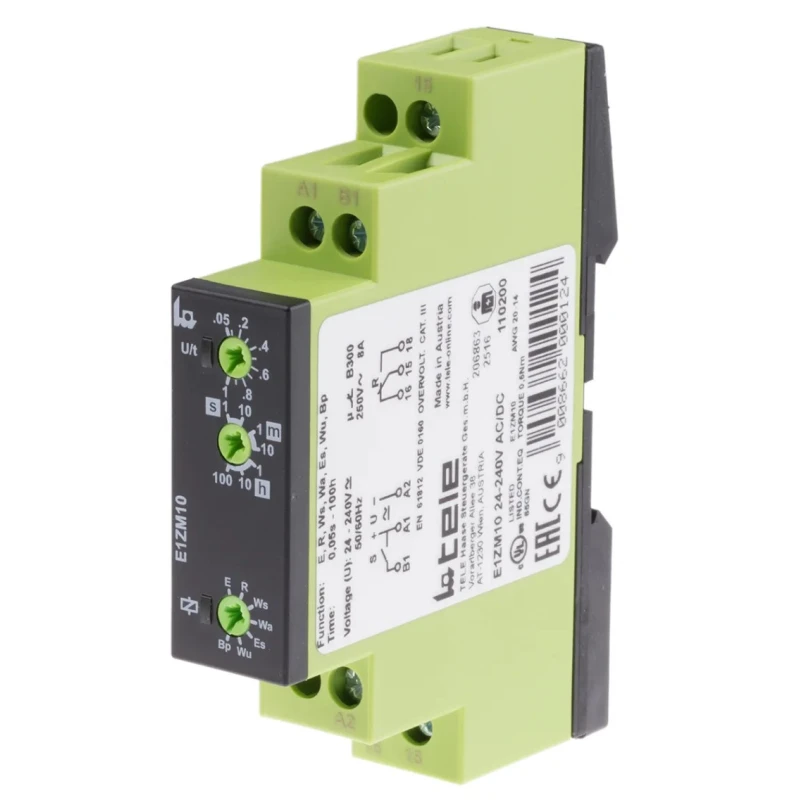

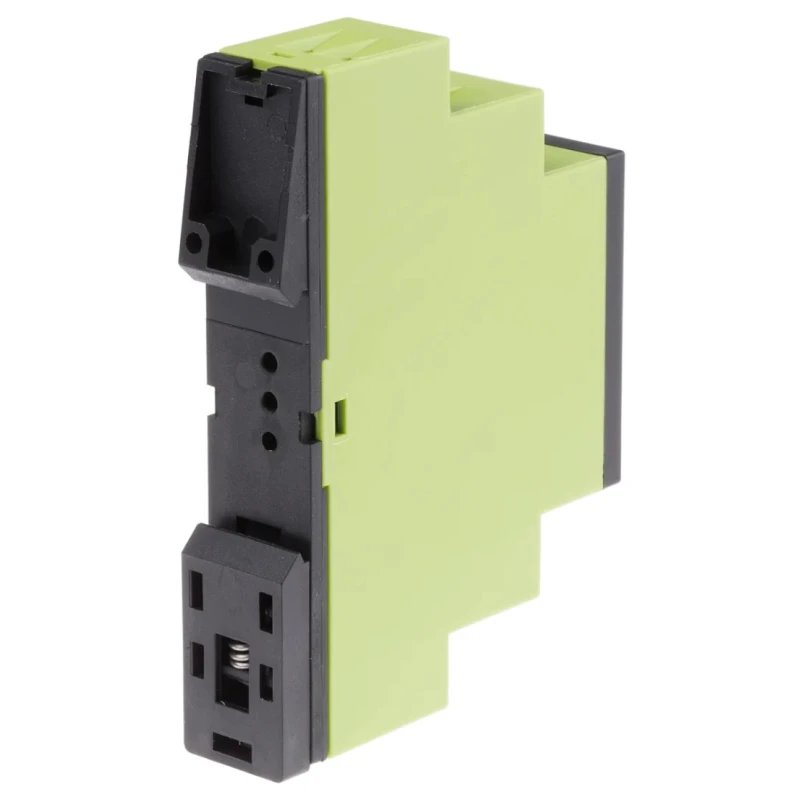

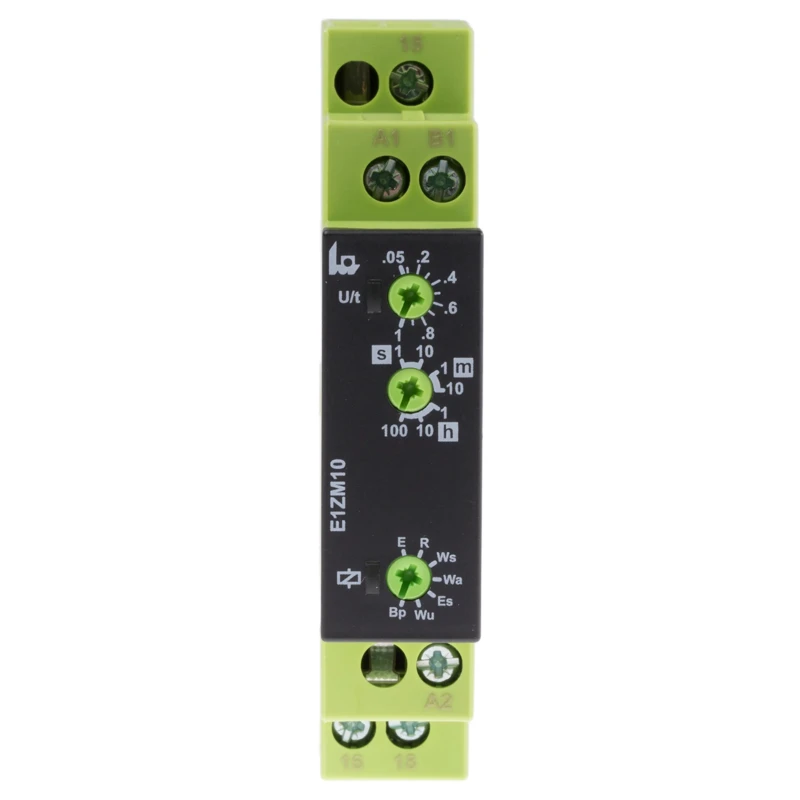

Tele Multifunction DIN Rail Timer Relay 1-Contact, 24 - 240V AC/DC, 0.05 s to 100 h, SPDT, IP40 E1ZM10
Specifications
| Country of Origin | Austria |
|---|---|
| Brand | Tele |
| Height | 65mm |
| Length | 87mm |
| Model | E1ZM10 |
| IP Rating | IP40 |
| Mode | Multifunction |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | E1ZM10 |
| Reset time | 100 ms |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -25°C |
| Time Range | 0.05 s to 100 h |
| Terminal type | Screw |
| Standards/Approvals | IEC |
| Number of Contacts | 1 |
| Number of Timer Functions | Multifunction |
| Supply DC Voltage | 240 V dc |
| Timing Adjustment | Knob |
| Supply AC Voltage | 24, 240V ac |
Key Features
- DIN rail mounting ensures easy integration for industrial panel installations.
- Offers dual supply voltage support from 24V AC/DC to 240V AC/DC for flexible deployment.
- Features a SPDT 1-contact configuration suitable for process control and machinery applications.
- Wide programmable time range from 0.05 seconds to 100 hours with knob adjustment.
- IP40 rating guarantees housing protection in demanding environments.
- Comprehensive timing functions including ON delay, OFF delay, single-shot and more.
- Self-extinguishing plastic housing enhances electrical safety and durability.
- LED status indication aids in quick operational diagnostics.
Product Description
Tele E1ZM10 multifunction DIN rail Timer Relay is engineered for precise timing control in industrial, commercial, and process automation environments. Designed for easy DIN rail mounting, the relay supports dual supply voltage ranges of 24V AC/DC and 240V AC/DC, offering exceptional compatibility for modern installations and upgrades.
This relay delivers a single SPDT contact rated for reliable switching, with a wide programmable time range from 0.05 seconds up to 100 hours, adjustable via a robust rotary knob on the front panel. Its multifunction timing modes - including ON delay, OFF delay, single-shot operations, and additional pause/leading/trailing edge functions - provide versatility for sequential operations, delay circuits, and customized control systems.
A compact build measuring 87mm in length, 17.5mm in width, and 65mm in height ensures optimum use of control panel space, while the IP40-rated housing and IP20 terminals maintain safety and environmental protection. The relay is equipped with LED indication for operational clarity and features self-extinguishing plastic housing for improved fire resistance.
Terminal connections utilize secure screw-type blocks, making installation straightforward and reliable. With rapid reset time and robust IEC standards compliance, the E1ZM10 relay is suitable for demanding applications in textiles, chemical processing, mining, irrigation, raw material handling, food and beverage production, and broader industrial process control.
The versatility provided by its wide voltage range, advanced timing functions, and durable housing makes this relay ideal for both new system integration and retrofitting existing automation panels.
Explore more relays and automation devices from Tele and discover industrial solutions for automation and process control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay offers a programmable time range from 0.05 seconds to 100 hours, adjustable via a knob on the front panel.
It features a single SPDT (Single Pole Double Throw) contact configuration, suitable for various process control applications.
The dimensions of the relay are 87mm in length, 17.5mm in width, and 65mm in height.
This model supports dual supply voltage ranges of 24V AC/DC and 240V AC/DC, providing flexibility for various applications.
It is designed for DIN rail mounting, making it easy to integrate into industrial panel installations.
The housing has an IP40 rating, ensuring protection against solid objects greater than 1mm and limited moisture ingress.
It includes multifunction timing modes such as ON delay, OFF delay, single-shot operations, and additional pause functions.
The maximum operating temperature for this relay is 55°C, allowing it to function in various environments.
It utilizes screw-type terminal connections, ensuring secure and reliable installation.
The reset time for the relay is 100 ms, allowing for quick recovery between operations.
The minimum operating temperature for this model is -25°C, enabling it to operate effectively in cold environments.
Yes, it complies with IEC standards, ensuring it meets international safety and performance criteria.
