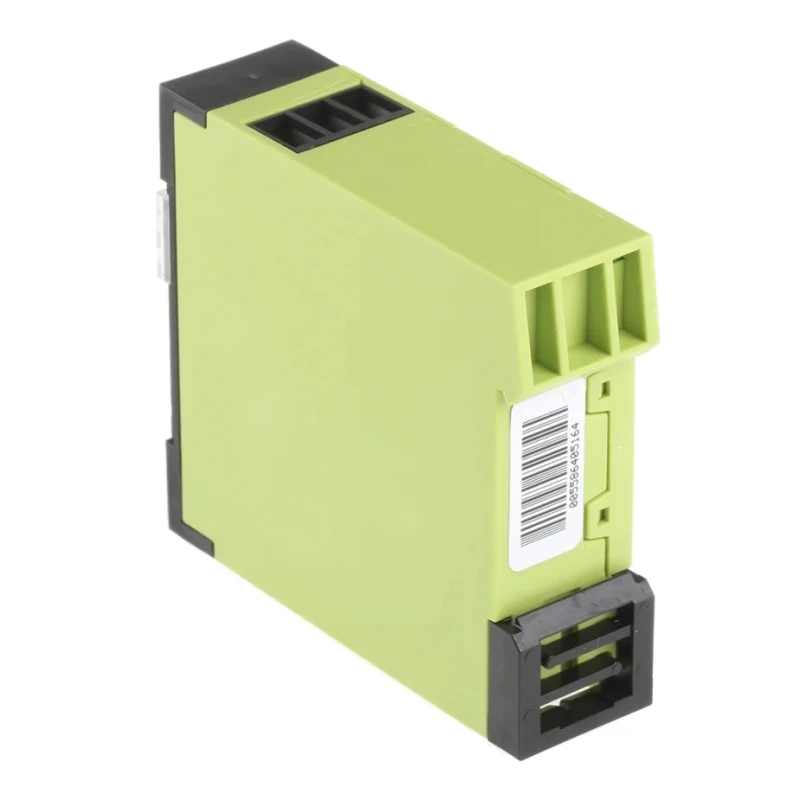

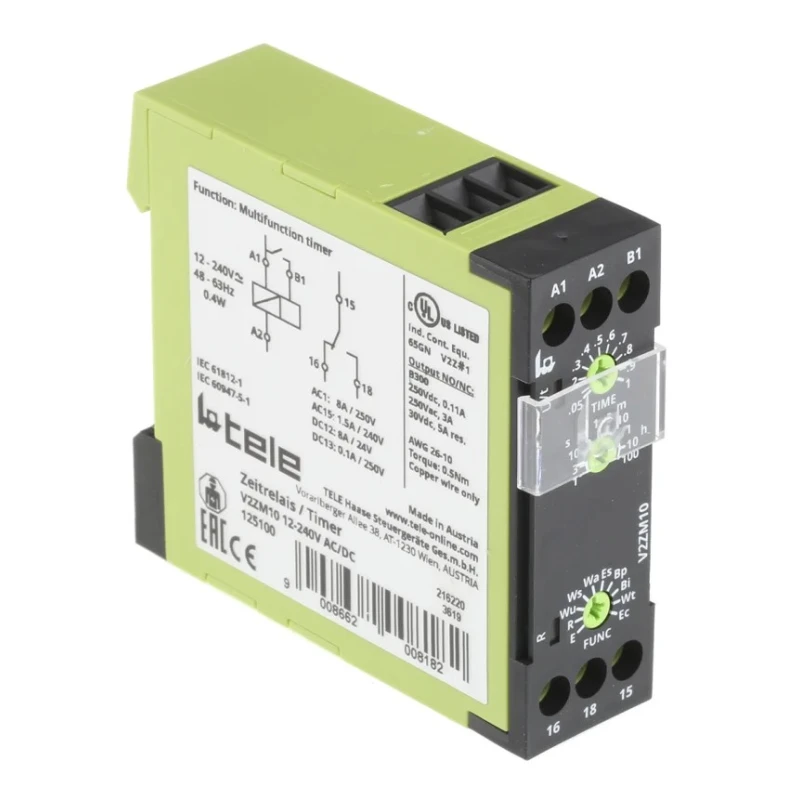

Tele V2ZM10 Series DIN Rail Multifunction Timer Relay 1-Contact SPDT 12-240V AC/DC V2ZM10

Tele V2ZM10 Series DIN Rail Multifunction Timer Relay is a precision solid-state device with a wide selection of timing functions suitable for diverse industrial and automation control applications. Designed for installation on a standard DIN rail, this compact unit offers a single 1-contact SPDT output and supports supply voltages ranging from 12V to 240V AC/DC, making it compatible with a broad spectrum of electrical systems.

These multifunction timer relays provide 10 selectable timing ranges, spanning from ultra-short delays of 0.05 seconds up to 10 hours, configurable via three rotary switches on the front panel for easy and accurate timing selection. Functions include ON delay, OFF delay, single-shot leading and trailing edge delays, flasher modes, additive ON delay, and pulse sequence monitoring among others, accommodating complex process automation needs.

The relay features a single-pole double-throw (SPDT) contact capable of switching up to 1.5A with a 400V maximum switching voltage. It is housed within a self-extinguishing plastic enclosure that meets IP40 protection standards, ensuring safety and durability in demanding industrial environments.

With an operating temperature range from -25°C to 60°C and LED status indication, the V2ZM10 is reliable and user-friendly. Timing is adjustable via a screwdriver slot, allowing fine tuning on site without removing the device from the DIN rail.

Common applications include automation processes in textiles, chemical manufacturing, mining operations, irrigation systems, raw material handling, food and beverage industries, and other industrial process controls.

Operates with a supply voltage from 12 to 240 volts AC/DC. Offers 10 selectable time ranges from 0.05 seconds to 10 hours. Single-pole double-throw (SPDT) contact configuration with 1.5 A contact current. Compact design with 22.5 mm width for space-saving DIN rail mounting.

Self-extinguishing plastic housing ensures safety and durability. Wide operating temperature range from -25°C to 60°C. IP40 rated housing for protection against solid objects. Timing adjustments via screwdriver slot for flexible configuration.

LED status indication provides clear operational feedback. Suitable for industrial applications including textiles, chemical industry, mining, irrigation, and food processing.

This Tele V2ZM10 timer relay is a high-quality solution for precise time delay control in electrical circuits, approved by IEC standards and CE certified for industrial reliability and safety.
