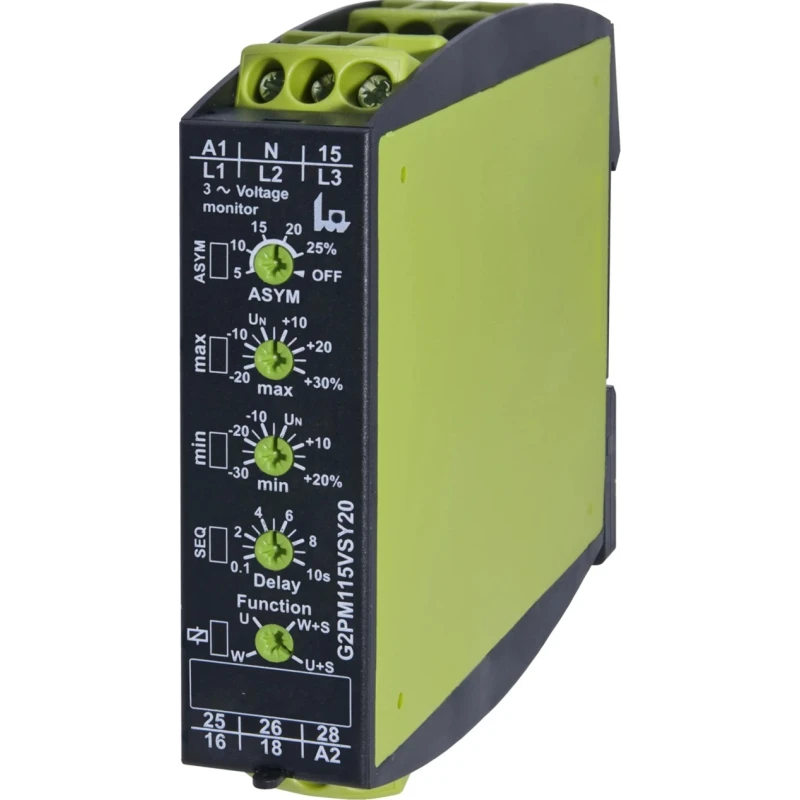

Tele Monitoring Relay, 3 Phase, DPDT, DIN Rail Mount, 24-240V AC, 5A, IP20/IP40, GAMMA Series G2PM115VSY20 24-240V AC/DC

Tele G2PM115VSY20 24-240V AC/DC is a multifunction voltage monitoring relay designed for industrial automation and electrical control systems. This device monitors three-phase voltage, providing reliable and precise operation with dual pole double throw (DPDT) contacts. The compact GAMMA series relay integrates easily into DIN rail systems and is suitable for various industrial and commercial applications including factory automation, HVAC systems, and power distribution monitoring.

The relay operates across a supply voltage range of 24 to 240V AC with a switching voltage capability up to 250V AC and a contact current rating of 5A. It features screw-type terminals that facilitate robust and secure wiring connections. The device incorporates LED indicators for clear operational status visibility, aiding troubleshooting and system monitoring.

Housed in a durable self-extinguishing plastic enclosure, this relay attains IP20 and IP40 ingress protection ratings, safeguarding against dust and electrical contact hazards. It is engineered to withstand harsh industrial environments, enduring operating temperatures from -55°C to +55°C. Compliance with international standards such as IEC 60664-1 and RoHS ensures safety, reliability, and environmental responsibility.

The Tele G2PM115VSY20 relay dimensions are 22.5mm (length) x 108mm (width) x 90mm (height), allowing for compact integration in control panels and electrical enclosures. Its DIN rail mount design streamlines installation and maintenance.

This versatile monitoring relay is ideal for use in control panels, industrial automation systems, electrical distribution boards, and facilities requiring reliable voltage surveillance. It offers robust performance, long service life, and precise voltage monitoring in critical electrical applications.

Equipped with two changeover contacts (DPDT) for versatile switching. Compact GAMMA series design with a length of 22.5mm and width of 108mm. Designed for industrial use with IP20 and IP40 ingress protection ratings. Supports switching voltage up to 250V AC with a contact current rating of 5A.

Incorporates screw terminals to ensure secure electrical connections. Wide operating temperature range from -55°C to +55°C. LED indicator for operational status provides clear visual feedback. Complies with IEC 60664-1, RoHS, IEC 60068-2-27, IEC 60721-3-3, and IEC 60068-2-6 standards.

Self-extinguishing plastic body enhances safety and durability. Explore the extensive range of Tele Monitoring Relays and similar industrial electrical components at EnvMart for quality and reliability assurance.
