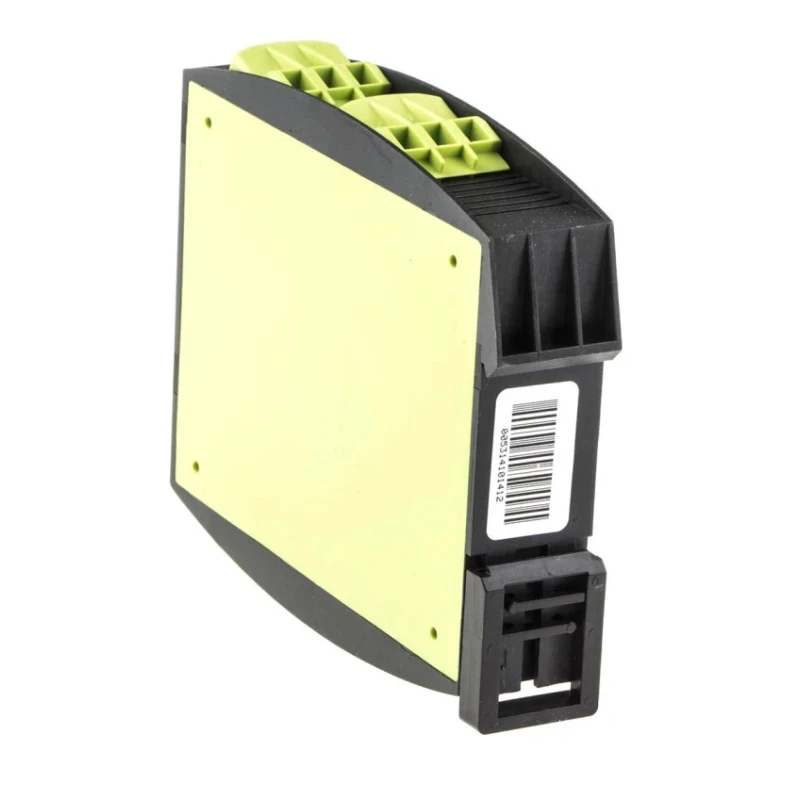

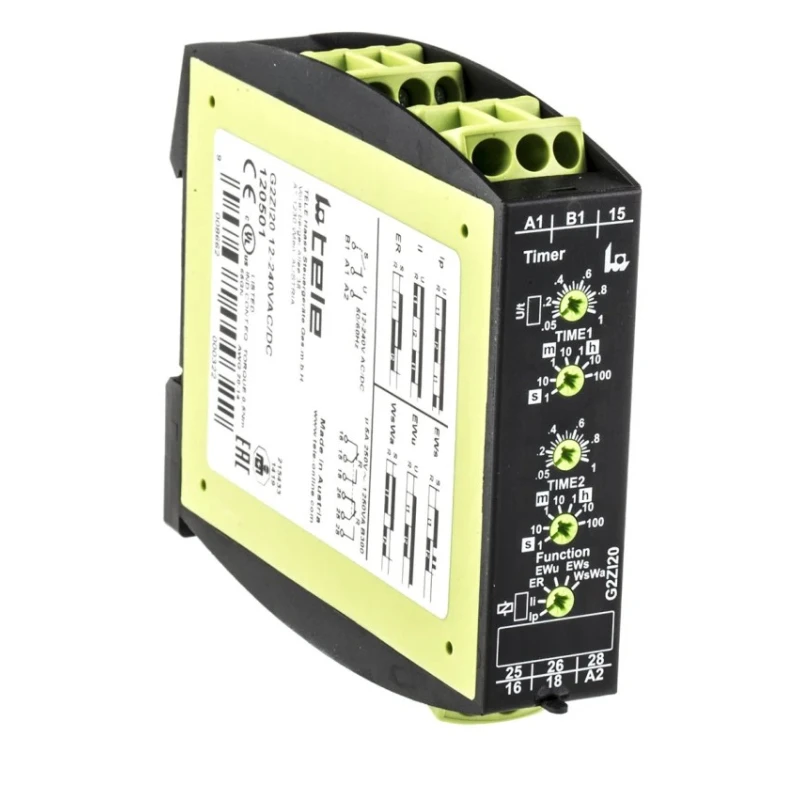

Tele DIN Rail Multifunction Timer Relay, DPDT Contacts, 12 - 240V AC/DC, 0.05s to 100h, IP40 G2ZI20

The Tele G2ZI20 12-240V AC/DC multifunction timer relay is designed for advanced timing and automation tasks in industrial environments. This relay supports a wide input voltage range from 12 to 240V (AC or DC), allowing flexible integration into control panels and machinery. Featuring a DIN rail mount and DPDT contact configuration, it ensures reliable operation and straightforward installation.

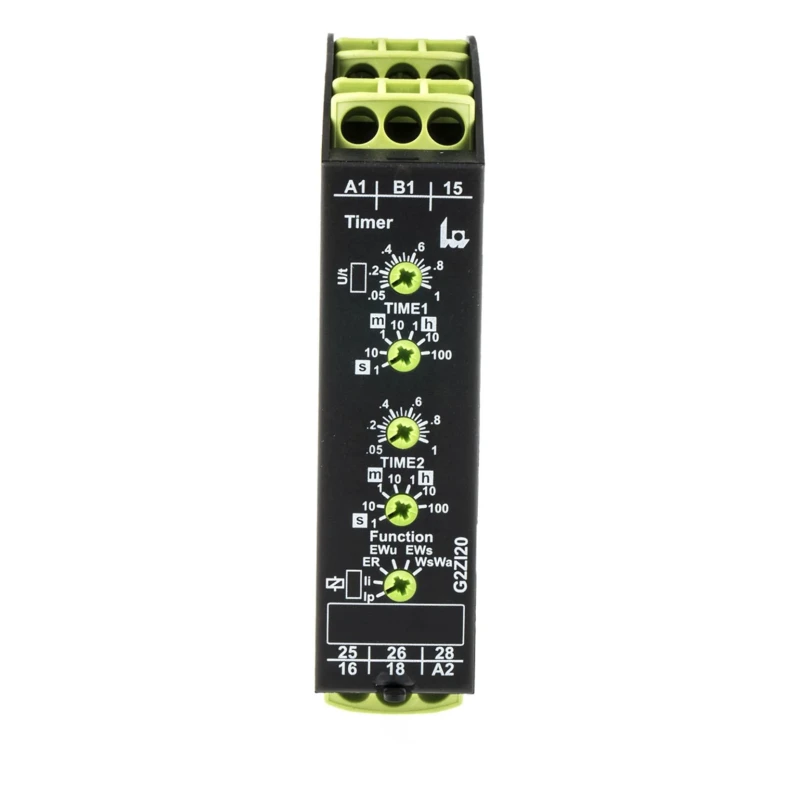

With seven selectable time ranges, the G2ZI20 timer relay provides precise timing from as short as 0.05 seconds up to 100 hours, accommodating diverse process requirements. Six multifunction timer settings cover control scenarios including asymmetric flasher modes, ON/OFF delay, single-shot functions (leading/trailing edge), with easy selection via rotary switches on the front panel.

The DPDT contacts deliver secure switching for control circuits, and the relay output is rated for up to 5A. The device boasts a robust self-extinguishing plastic housing, with IP40 protection for the body and IP20 for the terminals, ensuring safety and durability under demanding industrial conditions. LED status indication provides quick visual feedback for operational and fault states.

Installation is facilitated by a screw terminal block and standard DIN rail mounting, making it suitable for new builds or retrofit applications in machinery and system cabinets. The timer incorporates star-delta mode for motor control sequences, and timing adjustment is performed via a knob for accessible and repeatable settings.

Operating temperature ranges from -25°C to +55°C guarantee reliability across varied climates. Its compact size (90mm × 22.5mm × 108mm) allows efficient use of panel space. This timer relay complies with IEC standards and is suitable for use in sectors such as textiles, mining, chemical industry, irrigation, food and beverages, and general industrial process control.

Precise electronic timing for industrial process control. Flexible voltage input - operates from 12V to 240V AC/DC. Multiple timing modes for automation and control applications. Rugged construction with safety-rated housing and terminals.
