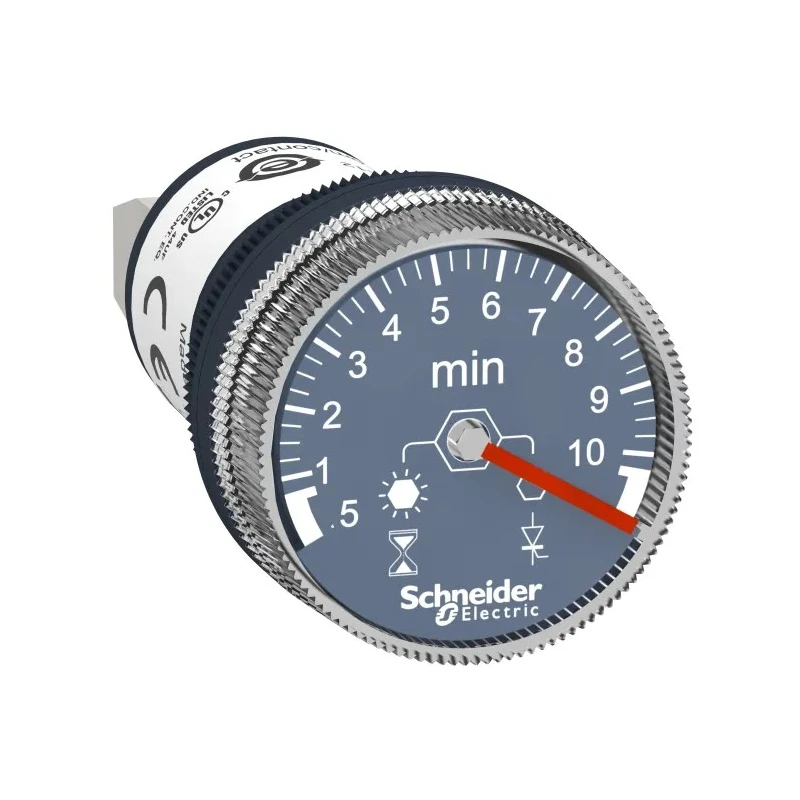

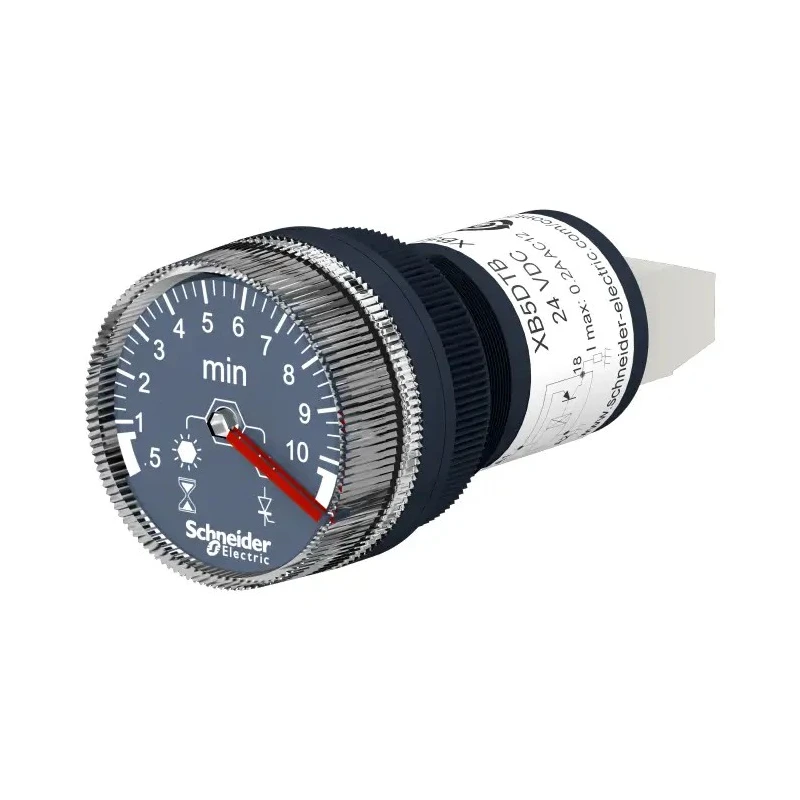

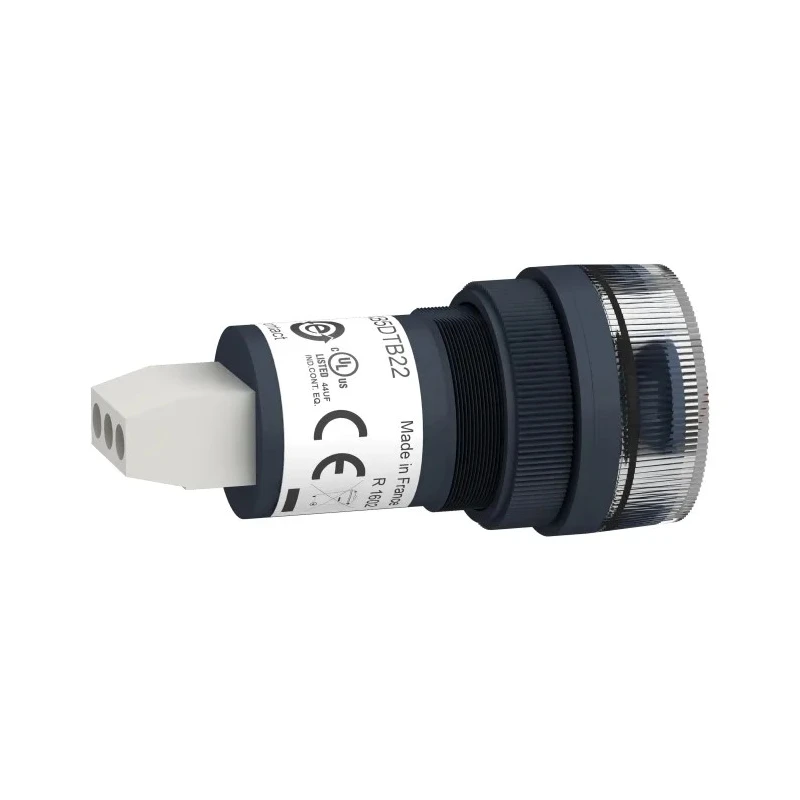

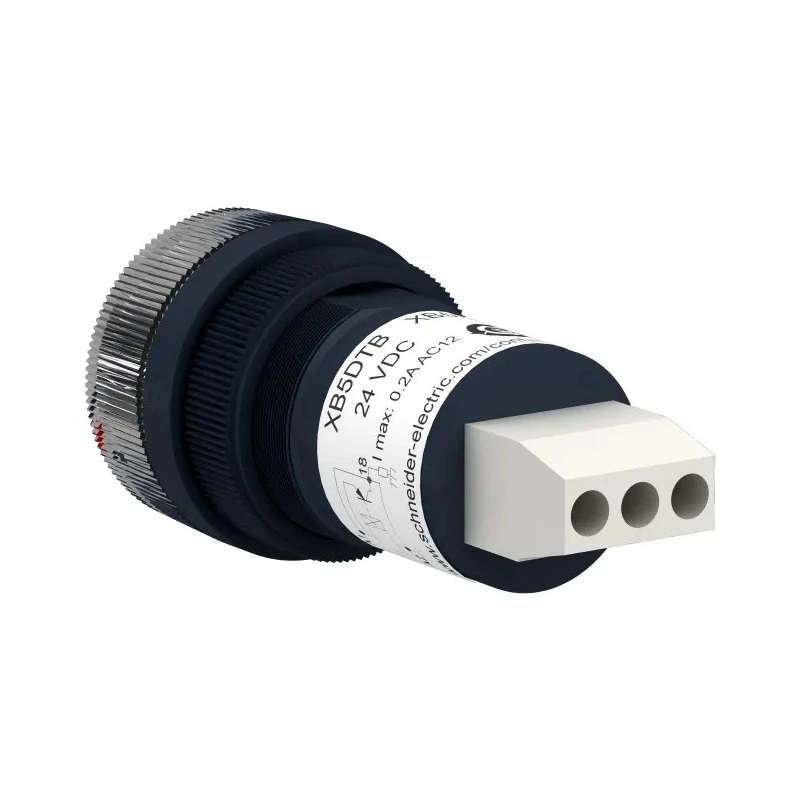

Schneider Electric Harmony XB5 Series Panel Timer Relay 100 - 240V DC, 110V AC, 230V AC 0.5 - 10 min Panel Mount XB5DTGM4

The Schneider Electric Harmony XB5DTGM4 Panel Timer Relay is a precision industrial timing device engineered for automation and control systems requiring panel-mounted relays. Part of the trusted Harmony XB5 Series, this panel timer relay is specifically designed for efficiency, robustness, and ease of installation in control cabinets and relay panels.

Operating on a flexible voltage range of 100 to 240V DC, as well as 110V AC and 230V AC, this relay adapts seamlessly to modern industrial power environments, reducing compatibility concerns and simplifying wiring. Its adjustable timing mechanism supports a range from 0.5 to 10 minutes, with the Offset Double Ring End function ensuring accurate and repeatable timing activation for single-function applications.

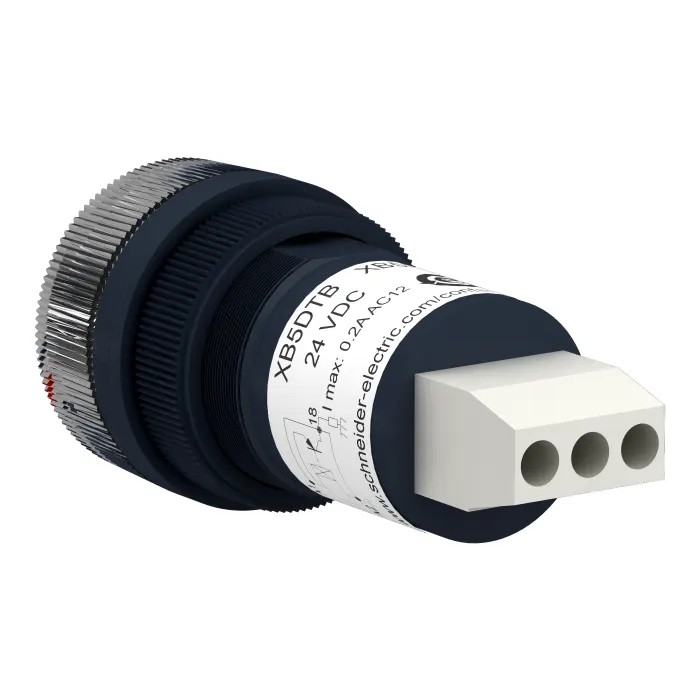

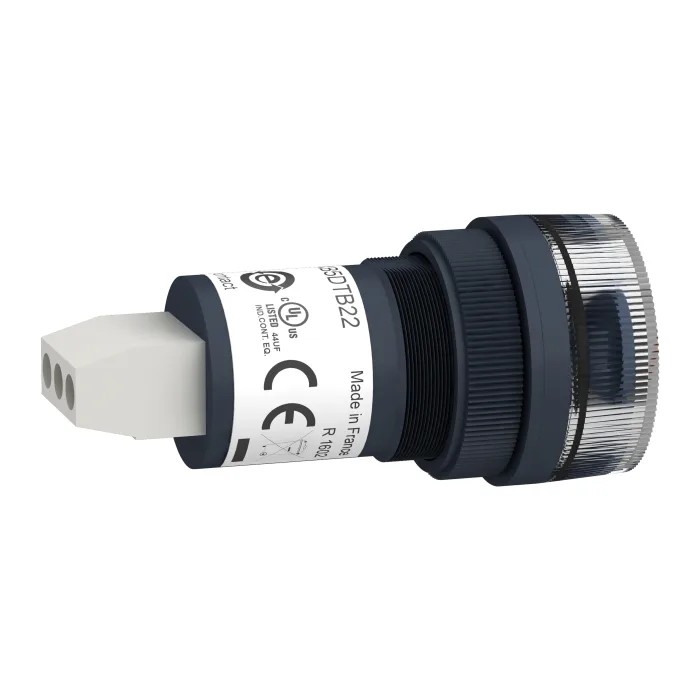

The relay features a secure panel mount with a standard 22.5 mm mounting hole and robust screw terminals for reliable physical and electrical connections. An integrated LED indicator provides clear visual feedback of operation status, improving diagnostics and process monitoring. The device is designed with industrial demands in mind, offering environmental protection up to IP65 at the front face and IP20 overall, making it suitable for use in environments where dust and water ingress are concerns.

The XB5DTGM4 relay supports operation in ambient temperatures from -20°C up to 60°C, broadening its use case for factory, HVAC, water treatment, process automation, and material handling applications where resilience is essential. The compact housing (62mm length, 62mm height, 90mm width) enables high-density panel layouts, and its compliance with UL 508, EN/IEC 61812-1, and CE standards ensures straightforward acceptance in global regulatory regimes.

Key functional elements, such as a user-friendly interface, static output, and durability for long-term service, make this relay a choice solution for engineers seeking panel-integrated timing control. The Harmony XB5 Series focus on quality and serviceability means this unit aligns with sustainable, repairable automation system designs.

Typical industrial applications include manufacturing process controls, motor start/stop sequencing, HVAC system management, conveyor controls, and safety interlocks in both commercial and heavy industrial settings. With straightforward panel mounting, wide voltage compatibility, and an adjustable time interval, this relay simplifies timing tasks across electrical panels.
