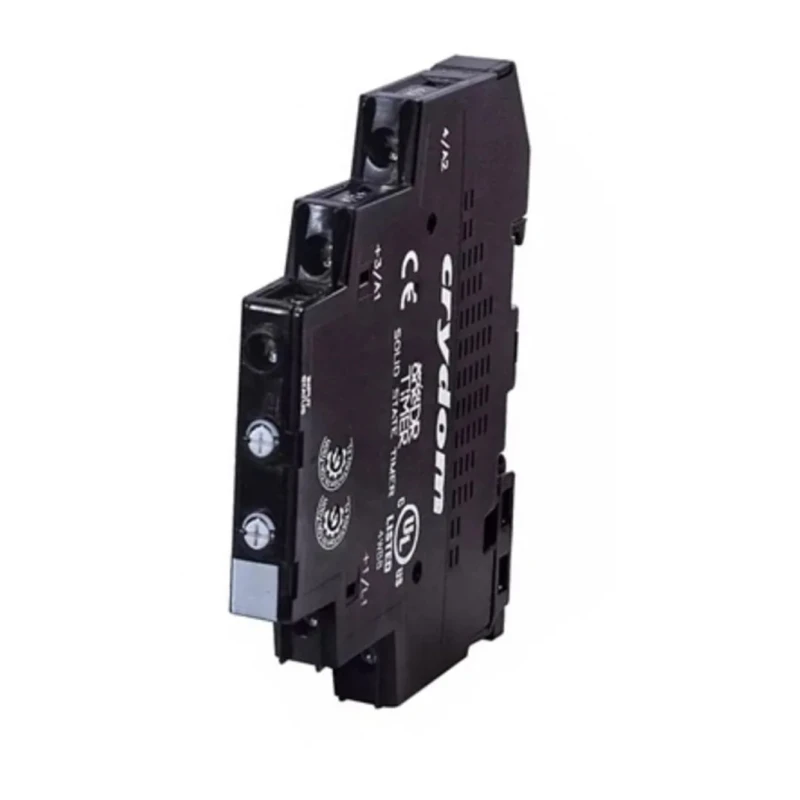

Crydom OneDR Series DIN Rail Timer Relay, Multifunction, 2-Contact, 90 - 140V AC/DC, SPST, 0.1 s - 100 h, DRTH24B06R
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 83mm |
| Function | Multifunction |
| Length | 87.7mm |
| Model | DRTH24B06R |
| Mode | Interval |
| Width | 11mm |
| Mount Type | DIN Rail |
| Series | OneDR |
| Maximum Operating Temperature | 80°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Time Range | 0.1 s to 100 h |
| Terminal type | Screw |
| Standards/Approvals | RoHS |
| Number of Contacts | 2 |
| Number of Timer Functions | 1 |
| Contact Current | 6A |
| Supply DC Voltage | 90 to 140 V ac/dc |
| Supply AC Voltage | 140, 90V ac |
Key Features
- Multifunction timer relay supporting a variety of industry-standard timing functions.
- Operates with a wide supply voltage range from 90 to 140V AC/DC.
- Features 2 contacts with SPST configuration and interval mode timing.
- Compact design with DIN rail mounting and integrated heat sink, only 11 mm wide.
- Single channel supports 6A output power rating suitable for demanding loads.
- Time range adjustable from 0.1 seconds to 100 hours, offering flexibility for control systems.
- Operating temperature ranges from -30°C to 80°C to suit harsh environments.
- IP20 housing with LED status indicator for easy troubleshooting.
Product Description
Crydom DRTH24B06R is a high-performance programmable DIN rail timer relay from the OneDR Series, engineered for reliable automation in industrial and commercial applications. The device ensures precise timing with its multifunction capability and robust AC/DC compatibility.
This timer relay is designed for flexibility, offering interval timer functionality and supporting a broad supply voltage range from 90V to 140V AC/DC. With 2 contacts in an SPST configuration, it is ideal for switching various loads within process control and machinery environments.
The relay features a single-channel 6A output rating, making it suitable for power-demanding circuits. Its compact size (11 mm wide) allows for space-saving installation on standard DIN rails. Installation and maintenance are simplified by screw terminals and an integrated IP20 enclosure with a unique heat sink design, ensuring both safety and effective thermal management.
Crydom's OneDR Series integrates up to 8 selectable timing functions, making the DRTH24B06R compatible with multiple timing requirements. The adjustable time range from 0.1 seconds to 100 hours enables fine customization for applications such as motor control, lighting, HVAC sequencing, and safety interlocks. The interval mode supports applications requiring delayed start or stop, and the LED status indicator facilitates quick operational checks.
Built for industrial durability, the relay's operating temperature range (-30°C to 80°C) supports environments such as manufacturing, process plants, HVAC control, and automation panels. RoHS certification assures compliance with international safety and environmental standards.
Typical use cases include industrial process automation, machine tool control, factory assembly lines, electrical cabinet integration, HVAC systems, and any application requiring precise, programmable time delays and reliable performance.
Browse more advanced timer relays in the Timer Relay category or explore Crydom products for specialized signal conditioning and automation applications with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Crydom DRTH24B06R operates with a supply voltage range of 90 to 140V AC/DC.
The time range for this timer relay is adjustable from 0.1 seconds to 100 hours, allowing for flexible timing applications.
This model has a contact current rating of 6A, making it suitable for power-demanding circuits.
The DRTH24B06R is designed for DIN rail mounting, which facilitates easy installation in control panels.
It features a 2-contact SPST (Single Pole Single Throw) configuration, suitable for various switching applications.
The operating temperature range for this timer relay is from -30°C to 80°C, making it suitable for harsh environments.
The dimensions of the DRTH24B06R are 87.7mm in length, 83mm in height, and 11mm in width.
This timer relay utilizes screw terminals for secure electrical connections.
The relay has an IP20 housing rating, providing protection against solid objects larger than 12mm.
The DRTH24B06R is RoHS certified, ensuring compliance with international safety and environmental standards.
This timer relay supports one timer function, specifically in interval mode.
It is suitable for applications such as motor control, lighting, HVAC sequencing, and safety interlocks due to its programmable timing capabilities.
