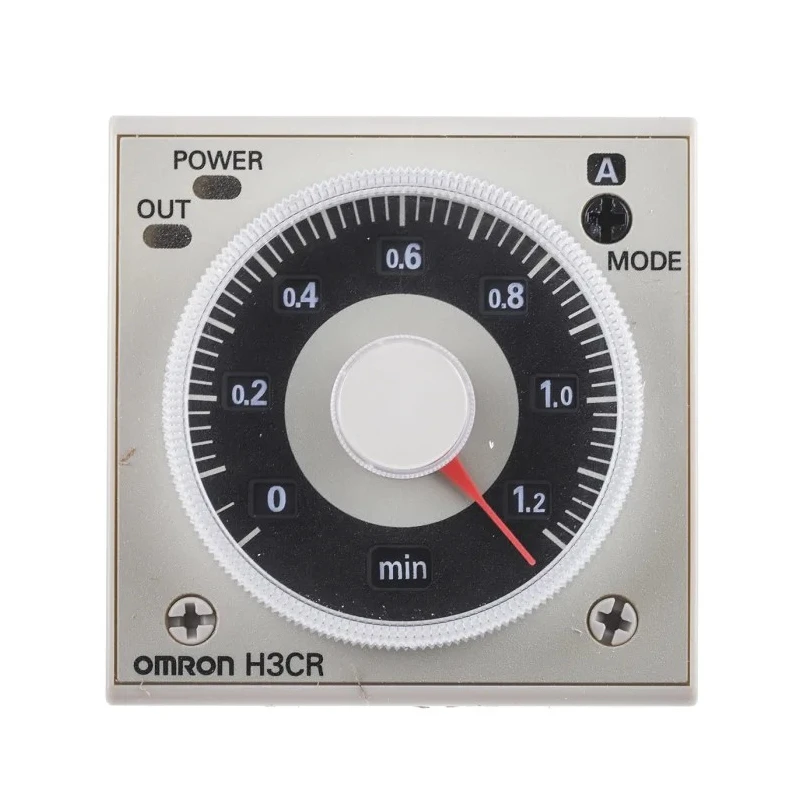

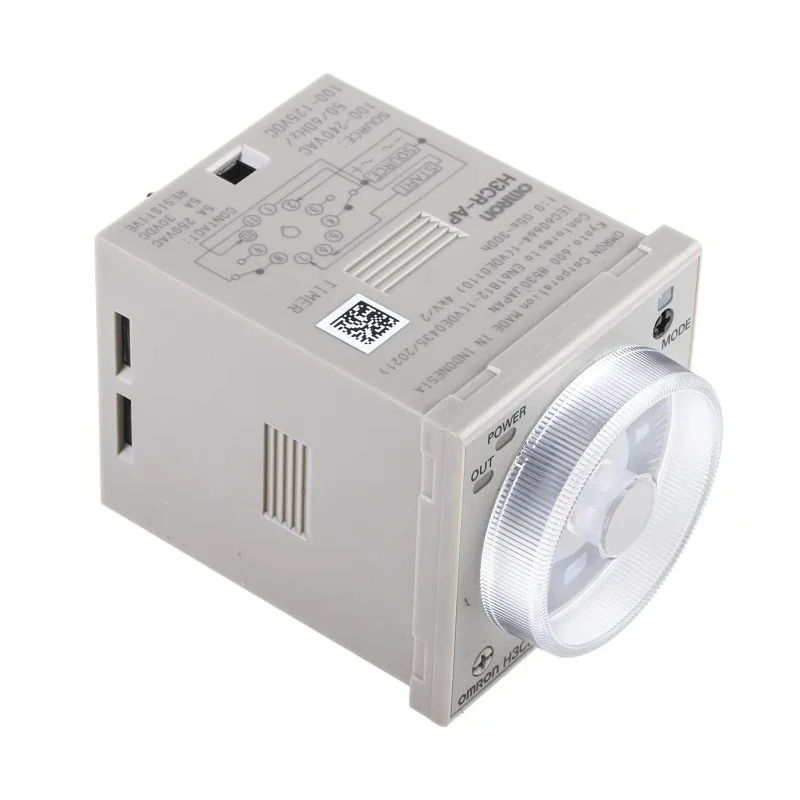

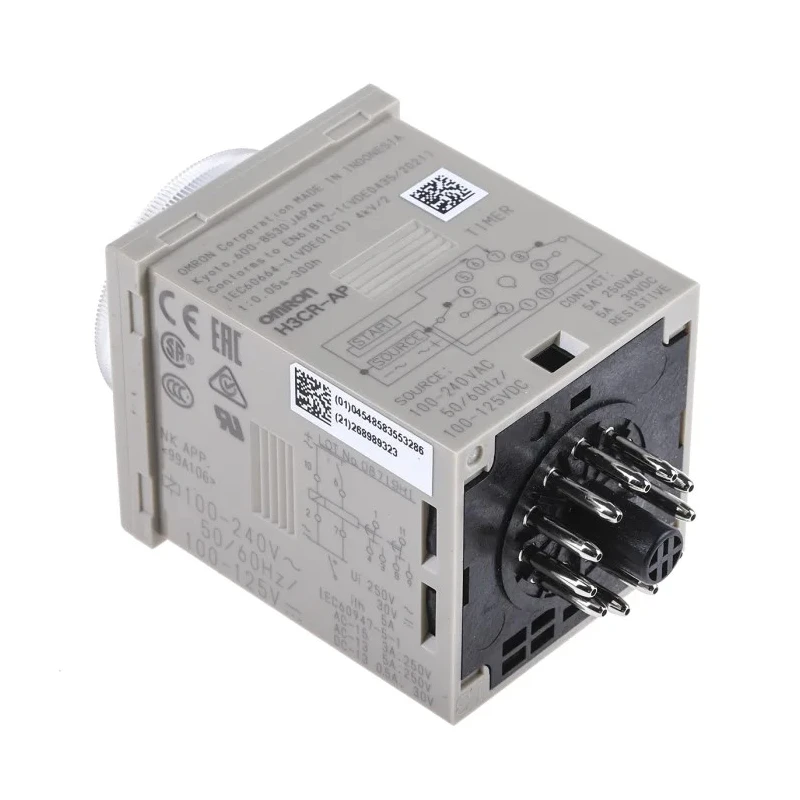

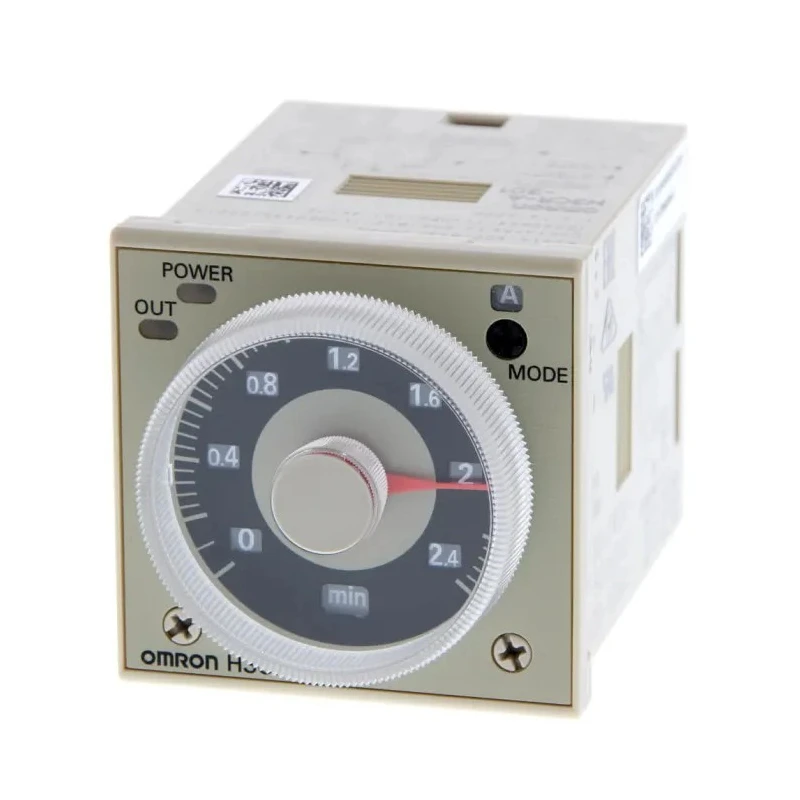

Omron DIN Rail Timer Relay Multifunction, 2-Contact DPDT, AC 100 - 240V / DC 100 - 125V, Time Range H3CR-AP AC100-240/DC100-125
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Omron |
| Height | 81.6mm |
| Function | Multifunction |
| Length | 48mm |
| Model | H3CR-AP AC100-240/DC100-125 |
| IP Rating | IP40 |
| Mode | Multifunction |
| Width | 48mm |
| Mount Type | DIN Rail |
| Series | H3CR |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.05 s to 300 h |
| Terminal type | Crimp |
| Standards/Approvals | EN 61812-1, NK, IEC60664-1, CCC, CSA, CE, UL, Lloyds |
| Number of Contacts | 2 |
| Number of Timer Functions | Multifunction |
| Switching Voltage | 250V |
| Contact Current | 5A |
| Supply DC Voltage | 100 to 125 V dc |
| Timing Adjustment | Knob |
| Supply AC Voltage | 100, 240V ac |
Key Features
- Multifunction timer relay with versatile operating modes.
- Time range adjustable from 0.05 seconds to 300 hours.
- DPDT contact configuration allows simultaneous control of multiple devices.
- Compact DIN rail mounting with secure crimp terminal type.
- 5A contact current capacity and IP40 protection rating for robust use.
- Knob adjustment enables easy timing settings.
- Suitable for industrial, automation, HVAC, and machinery timing applications.
Product Description
Omron H3CR-AP AC100-240/DC100-125 is a highly versatile DIN rail timer relay engineered for precise control of timed operations in automation, machinery, and electrical systems. Designed for demanding industrial environments, this relay supports a wide voltage range of AC 100 - 240V and DC 100 - 125V. Its multifunctional timing capabilities allow users to program time intervals from 0.05 seconds up to 300 hours, meeting both short and extended duration requirements.
Utilizing a double pole double throw (DPDT) contact configuration, the relay can control multiple devices or processes simultaneously. The internal power supply eliminates the need for external adapters, making installation more straightforward. Installation is facilitated by the robust DIN rail mounting and crimp terminal type, ensuring a secure and reliable electrical connection. Its compact dimensions (48mm × 48mm × 81.6mm) help save panel space, making it ideal for modern control cabinets.
Multifunction operating modes provide ON delay and other advanced timing functions. Knob-based timing adjustment allows for flexible, user-friendly setup of intervals. Rated contact current of 5A ensures reliable switching for a variety of loads.
IP40 protection guarantees operational safety against dust and small particles. Compliance with standards: EN 61812-1, NK, IEC60664-1, CCC, CSA, CE, UL, Lloyds. Operating temperature from -10°C to 55°C enables reliable performance in challenging environments.
This timer relay is ideal for controlling lighting sequences, motor operations, production timing, and temperature regulation in HVAC systems. Its robust design and extensive features make it suitable for use in factories, laboratories, process automation, and building management systems.
Choose Omron for reliable timer relays that meet global standards and deliver consistent performance. Browse the EnvMart Timer Relay category to discover more industrial timing solutions from Omron and other top brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The time range of this model is adjustable from 0.05 seconds to 300 hours, allowing for both short and extended timing applications.
It features a double pole double throw (DPDT) contact configuration, enabling the simultaneous control of multiple devices.
This unit operates with an AC supply voltage of 100 to 240V and a DC supply voltage of 100 to 125V.
The maximum contact current capacity is rated at 5A, suitable for various loads.
The dimensions are 48mm in length, 48mm in width, and 81.6mm in height, making it compact for installation.
Timing intervals are adjusted using a knob, providing a user-friendly setup experience.
The H3CR-AP has an IP40 protection rating, ensuring safety against dust and small particles.
It operates effectively within a temperature range of -10°C to 55°C, suitable for various environments.
This timer relay complies with several standards including EN 61812-1, IEC60664-1, and UL, among others.
It is designed for DIN rail mounting, which facilitates secure installation in control panels.
It is suitable for industrial automation, machinery timing, HVAC systems, and controlling lighting sequences.
The H3CR-AP features 2 contacts, allowing for versatile control options in various applications.
