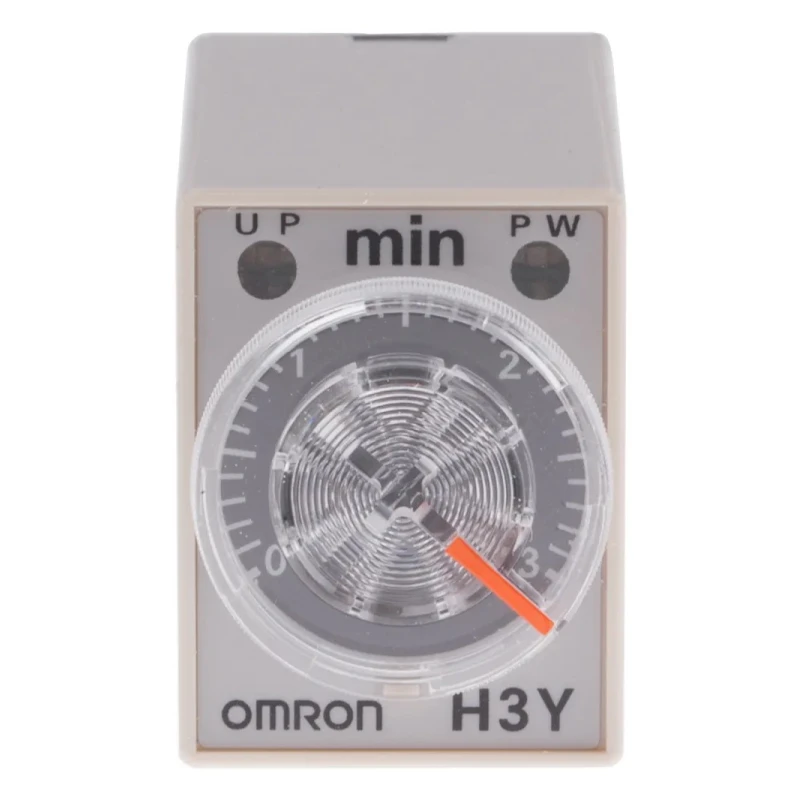

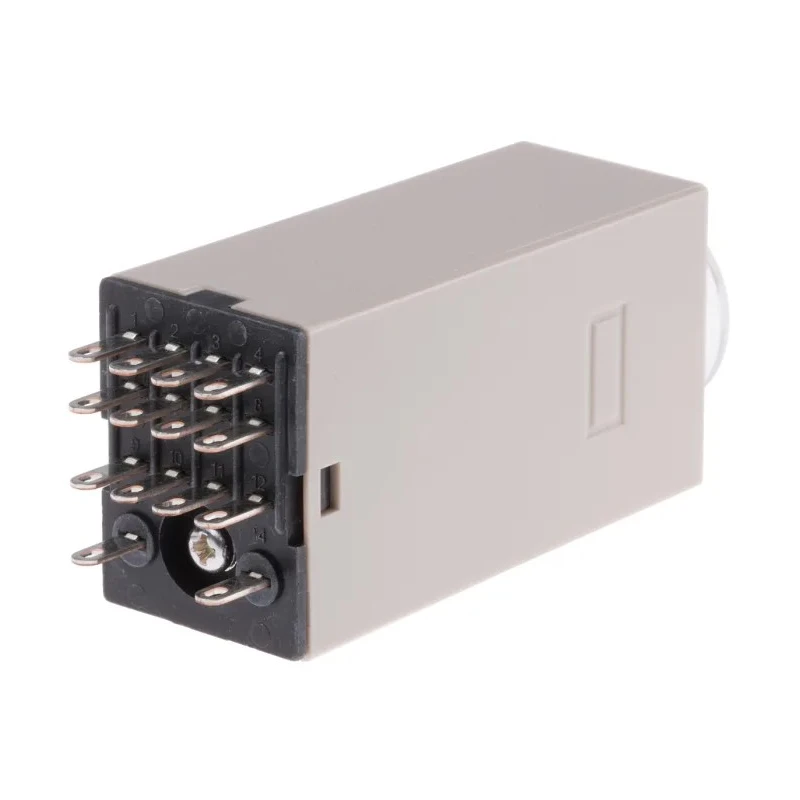

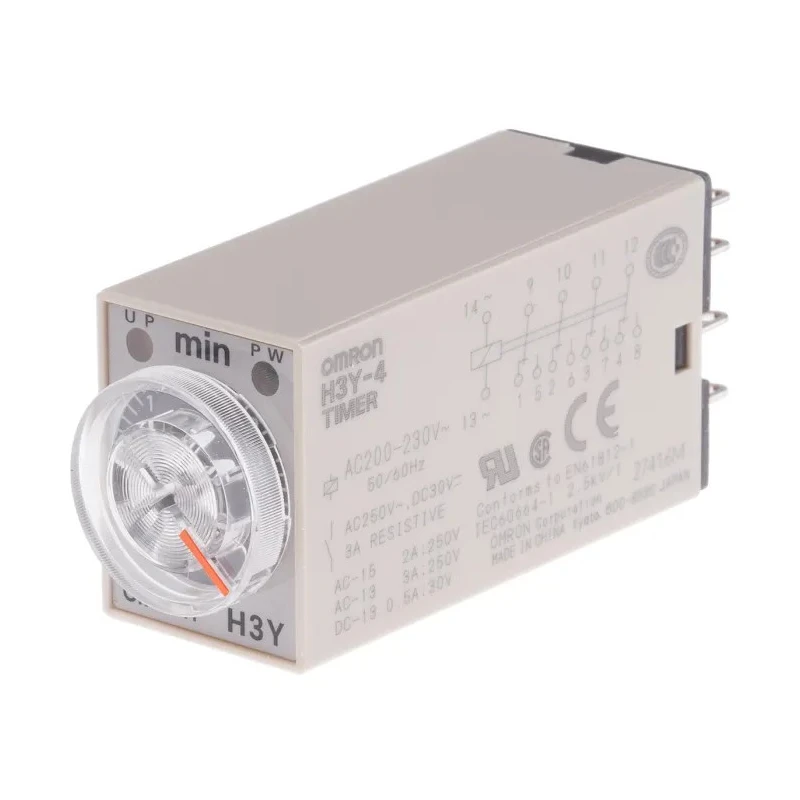

Omron Timer Relay DIN Rail Mount, 4-Contact, 125V DC, 200/230V AC, 0.1 - 3 min, 1-Function, 4PDT Switch H3Y-4 AC200-230 3M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Omron |
| Height | 63mm |
| Function | Offset Double Ring End |
| Length | 28mm |
| Model | H3Y-4 AC200-230 3M |
| IP Rating | IP40 |
| Mode | ON Delay |
| Width | 21.5mm |
| Mount Type | DIN Rail |
| Series | H3Y-4 |
| Maximum Operating Temperature | 50°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -10°C |
| Time Range | 0.1 to 3 min |
| Terminal type | Plug-In |
| Number of Contacts | 4 |
| Number of Timer Functions | 1 |
| Switching Voltage | 250, 30V ac |
| Contact Current | 5A |
| Supply DC Voltage | 125 V |
| Supply AC Voltage | 200, 230V ac |
Key Features
- Reliable timer relay for panel and control cabinet integration.
- Adjustable time range from 0.1 to 3 minutes for precise automation tasks.
- Supports both 125V DC and 200/230V AC supply voltages.
- Four changeover contacts (4PDT) provide simultaneous multi-circuit control.
- Rated for 5A contact current and switching up to 250V AC or 30V DC.
- Plug-in terminals facilitate easy installation and replacement.
- Industrial-grade IP40 enclosure for panel use.
- Designed for seamless DIN rail mounting.
Product Description
The Omron H3Y-4 AC200-230 3M Timer Relay is an industrial automation component purpose-built for panel and control cabinet applications where accurate timing and multi-circuit switching are required. Featuring plug-in terminals and DIN rail mounting, it enables rapid installation and maintenance within busy control systems.
Equipped with four changeover contacts (4PDT), this relay provides simultaneous control of multiple circuits, making it ideal for complex control schemes and relay logic. The adjustable time range from 0.1 to 3 minutes allows engineers to tune delays precisely for sequential motor starts, process automation, or safety interlock sequences.
This model accepts both DC (125V) and AC (200/230V) supply voltages, maximizing integration flexibility for diverse industrial environments. Each contact supports a 5A current rating and is designed for switching loads up to 250V AC and 30V DC.
Its robust IP40-rated housing protects against solid objects greater than 1mm, suitable for indoor panels. Operation is reliable within an ambient temperature range of -10°C to 50°C, meeting typical industrial requirements.
Plug-in terminals ensure fast wiring and replacement, streamlining maintenance operations. The compact relay fits easily within control cabinets, enabling standardized panel layouts.
Industrial applications include control cabinets for process automation, pump cycling, sequential motor starts, timed safety interlocks, and lighting control in manufacturing, HVAC, and commercial installations. The relay is engineered to comply with international standards such as CE, UL 508, EN 61812-1, CSA C22.2 No. 14, and others listed in the specification.
Omron timer relays are widely used across automation, facility management, and electrical manufacturing sectors. For more technical relay solutions or to browse Omron's full range of timer relays, explore the EnvMart Timer Relay category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The adjustable time range for this model is from 0.1 to 3 minutes, allowing for precise timing in automation tasks.
This timer relay supports both 125V DC and 200/230V AC supply voltages, providing flexibility for various applications.
It features a 4PDT (four changeover contacts) configuration, enabling simultaneous control of multiple circuits.
The maximum contact current rating for this unit is 5A, suitable for various industrial applications.
The enclosure of this timer relay has an IP40 rating, which protects against solid objects greater than 1mm, making it suitable for indoor use.
The dimensions of this model are 63mm in height, 28mm in length, and 21.5mm in width.
It is designed for DIN rail mounting, facilitating easy installation within control cabinets.
The operating temperature range is from -10°C to 50°C, which meets typical industrial requirements.
This model features plug-in terminals, which allow for quick wiring and easy replacement during maintenance.
It is suitable for applications such as process automation, pump cycling, sequential motor starts, and timed safety interlocks.
It complies with international standards including CE, UL 508, EN 61812-1, and CSA C22.2 No. 14, ensuring its reliability in various environments.
This timer relay has one timer function, designed for specific timing applications in control systems.
