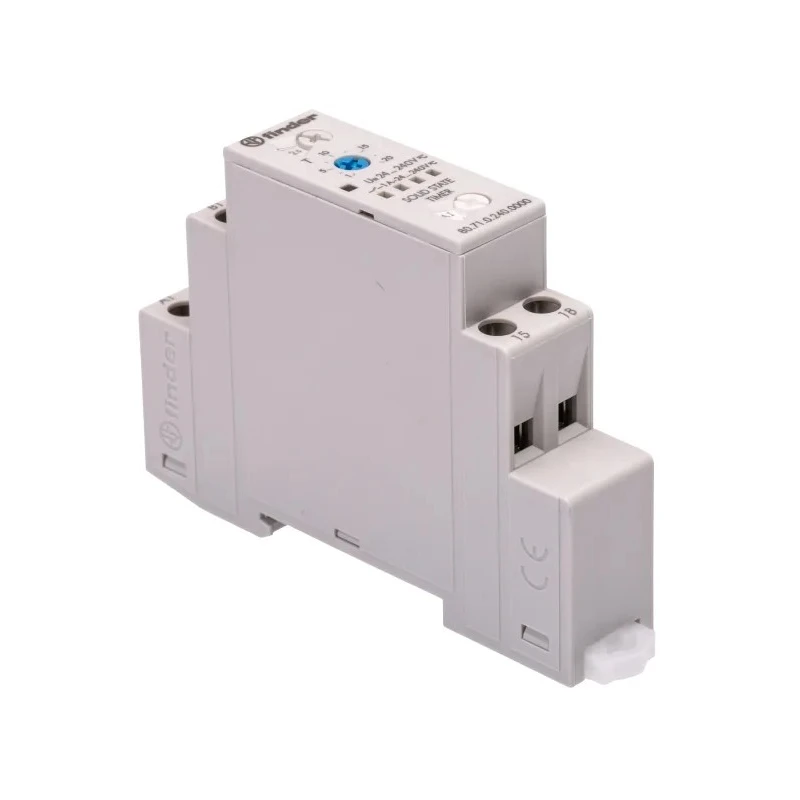

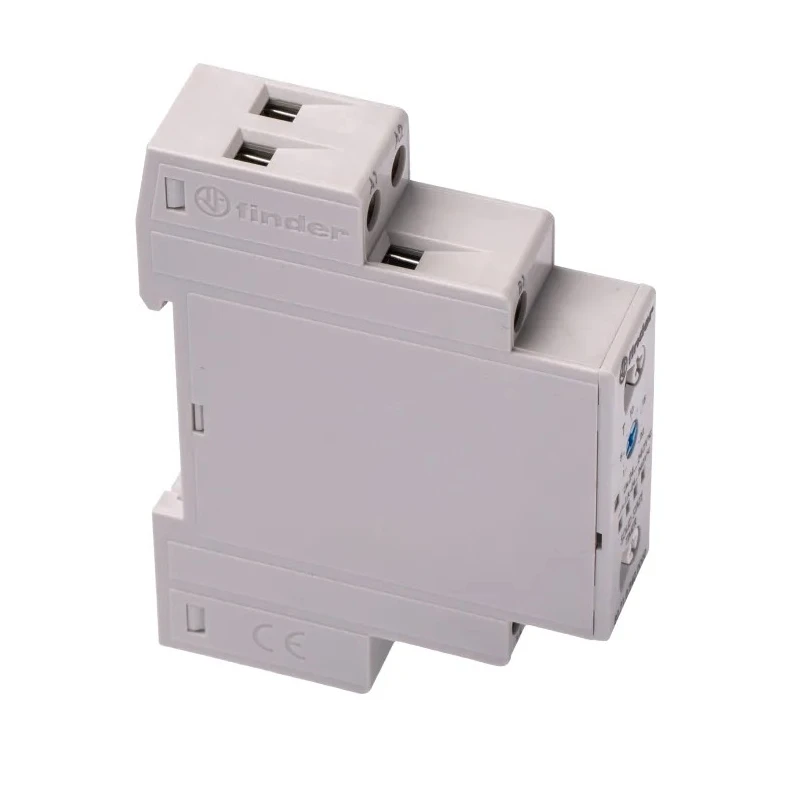

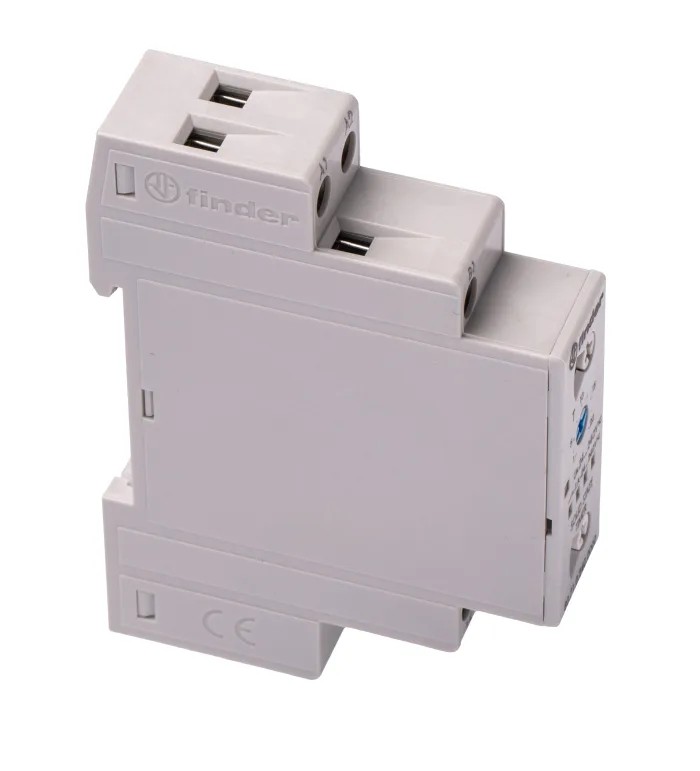

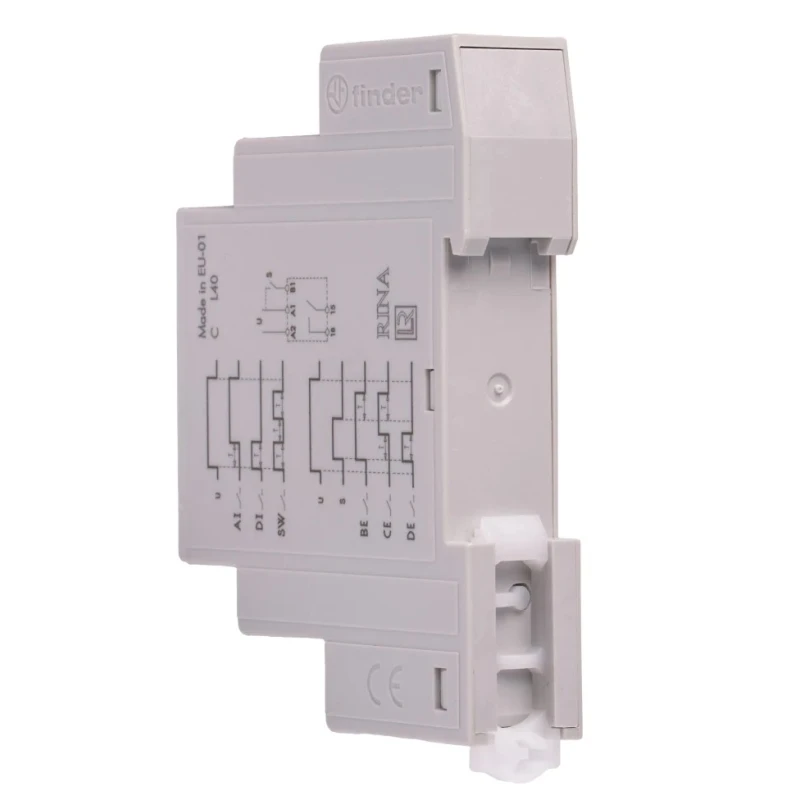

Finder 80 Series DIN Rail Timer Relay 1-Contact SPST, Multifunction, Time Range 0.1s–24h, 24–240V AC/DC 80.71.0.240.0000

Free Delivery in India | Lowest Global Shipping Charges

Finder 80 Series DIN Rail Timer Relay 1-Contact SPST, Multifunction, Time Range 0.1s - 24h, 24 - 240V AC/DC 80.71.0.240.0000

Name: Finder 80 Series DIN Rail Timer Relay 1-Contact SPST, Multifunction, Time Range 0.1s - 24h, 24 - 240V AC/DC 80.71.0.240.0000
Brand: FINDER
SKU: 84632
Price: 98.3 USD
Availability: InStock



Category Timer Relay Brand FINDER Condition New

Specifications

Country of Origin	Italy
Brand	Finder
Height	60.8mm
Length	84mm
IP Rating	IP20
Mode	Multifunction
Width	17.5mm
Mount Type	DIN Rail
Series	80
Maximum Operating Temperature	50°C
Contact Configuration	SPST
Minimum Operating Temperature	-20°C
Terminal type	Screw
Standards/Approvals	UL, EAC, CE
Number of Contacts	1
Number of Timer Functions	Multifunction
Switching Voltage	250V ac
Contact Current	16A
Supply DC Voltage	240 V dc
Timing Adjustment	Screwdriver Slot
Supply AC Voltage	24, 240V ac

Key Features

Multifunction timer relay suitable for industrial and automation tasks.
Time range adjustable from 0.1 seconds to 24 hours using a screwdriver slot.
Works with supply voltages of 24V to 240V in both AC and DC systems.
Features a single SPST contact configuration rated for up to 16A current.
Compact design with secure screw terminals ensures reliable DIN rail installation.
Operates across wide environmental temperatures from -20°C to 50°C.
Provides IP20 protection and complies with UL, EAC, and CE standards.
Applications include automation panels, elevators, blinds, gates, and more.

Product Description

The Finder 80.71.0.240.0000 DIN Rail Timer Relay is engineered for precise timing and control in demanding automation environments. Featuring a multifunction capability, this relay adapts to interval, ON/OFF delay, and symmetrical flash modes, making it suitable for a wide spectrum of control tasks in industrial, commercial, and building systems.

This relay functions with both AC and DC voltage supplies, accommodating a voltage range from 24V to 240V. Its SPST contact configuration supports a maximum contact current rating of 16A, while the adjustable timing via screwdriver slot allows for exact control of operations from as fast as 0.1 seconds up to 24 hours.

The device is built to withstand challenging operations, offering a minimum operating temperature of -20°C and a maximum of 50°C. Its compact footprint - measuring 84mm in length, 17.5mm in width, and 60.8mm in height - ensures ease of integration onto standard DIN rails within distribution panels or system enclosures.

Screw terminals guarantee robust and secure connections, and enhanced input/output isolation ensures system safety and reliability even in complex installations. The timer maintains its settings following power interruptions, resuming its previous timing program for consistent automated performance.

Typical applications include controlling automated elevators and lifts, managing building automation panels, automating blinds, shutters and gates, and operating hoists, cranes, and electrical distribution systems. The relay's IP20 protection and compliance with UL, EAC, and CE standards underscore its suitability for professional and industrial settings.

This product belongs to the Finder Series 80, a renowned line for reliability and versatility in timer relay solutions. Explore the full range of industrial Timer Relays, automation control components, and related products from Finder on EnvMart.
