Tele 1 Phase DPDT Monitoring Relay DIN Rail Mount 24-240V AC Supply V4IM100AL20 24-240V AC/DC

Free Delivery in India | Lowest Global Shipping Charges

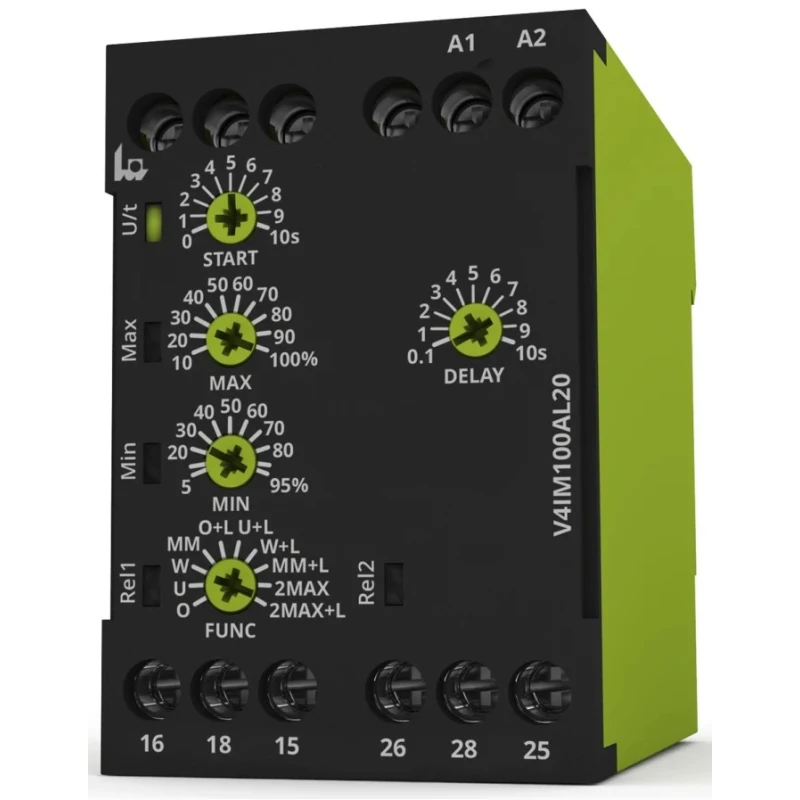

Tele 1 Phase DPDT Monitoring Relay DIN Rail Mount 24-240V AC Supply V4IM100AL20 24-240V AC/DC

Name: Tele 1 Phase DPDT Monitoring Relay DIN Rail Mount 24-240V AC Supply V4IM100AL20 24-240V AC/DC
Brand: Tele
SKU: 141729
Price: 246.44 USD
Availability: InStock



Category Monitoring Relay Brand Tele Condition New

Specifications

Country of Origin	Austria
Brand	Tele
Height	67mm
Length	76mm
Model	V4IM100AL20 24-240V AC/DC
IP Rating	IP20, IP40
Width	45mm
Mount Type	DIN Rail
Series	VEO
Maximum Operating Temperature	60°C
Contact Configuration	DPDT
Minimum Operating Temperature	+60°C
Terminal type	Screw
Electrical Phase	1
Standards/Approvals	EAC, TSCA, CE, CMRT, WEEE, REACH, RoHS
Switching Voltage	400V ac
Supply AC Voltage	24, 240V ac
Maximum Current Sensed	100A
Current Sensitivity	Overcurrent, Undercurrent
Relay Contact Current	8A

Key Features

Designed for single-phase AC current monitoring with double pole double throw contacts.
Features overcurrent and undercurrent sensitivity for precise current protection.
Compact DIN rail mount design with 45 mm width for easy installation.
Robust self-extinguishing plastic housing with IP20 and IP40 ratings for enhanced protection.
Screw terminal connections ensure secure and reliable wiring.
Wide operating temperature range from minimum +60°C to maximum 60°C.
Rated switching voltage up to 400V AC with a relay contact current of 8A.
Shock resistant and equipped with LED indicator for operational status monitoring.

Product Description

Tele V4IM100AL20 24-240V AC/DC Monitoring Relay is engineered for single-phase electrical systems requiring precise current supervision and protection. This product from the VEO series features a double pole double throw (DPDT) contact configuration and is designed for secure DIN rail installation, fitting standard TS 35 rails commonly used in industrial and commercial electrical panels.

Powered with an AC supply voltage range of 24 to 240 volts, the relay supports a maximum current sensing capacity up to 100 amperes, making it suitable for applications that demand high current monitoring capabilities including industrial automation and electrical distribution systems.

Its compact 45 mm housing is crafted from self-extinguishing plastic ensuring safety against fire hazards. The robust enclosure features an IP rating combination of IP20 and IP40, providing adequate protection from dust and moderate exposure environments. The relay integrates screw type terminals for durable and easy connection of electrical conductors.

The monitoring relay is sensitive to both overcurrent and undercurrent conditions, allowing it to detect faults and abnormal current fluctuations quickly, thereby protecting electrical installations from potential damage. The inclusion of a built-in LED indicator simplifies troubleshooting and operational verification by providing straightforward visual status cues.

Double pole double throw (DPDT) contact configuration for flexible circuit control. Designed to mount on standard 35 mm DIN rails enhancing installation efficiency. Certified with international standards including CE, RoHS, and others ensuring reliability and compliance.

Wide operating temperature range supporting ±60°C for robust performance in varying environments. Ideal for industrial automation, electrical distribution, and HVAC systems requiring current monitoring.

Manufactured in Austria, this Tele VEO series monitoring relay integrates seamlessly into industrial, commercial, and automation control systems. Explore more products in the Monitoring Relays category on EnvMart for comprehensive electrical control solutions.
