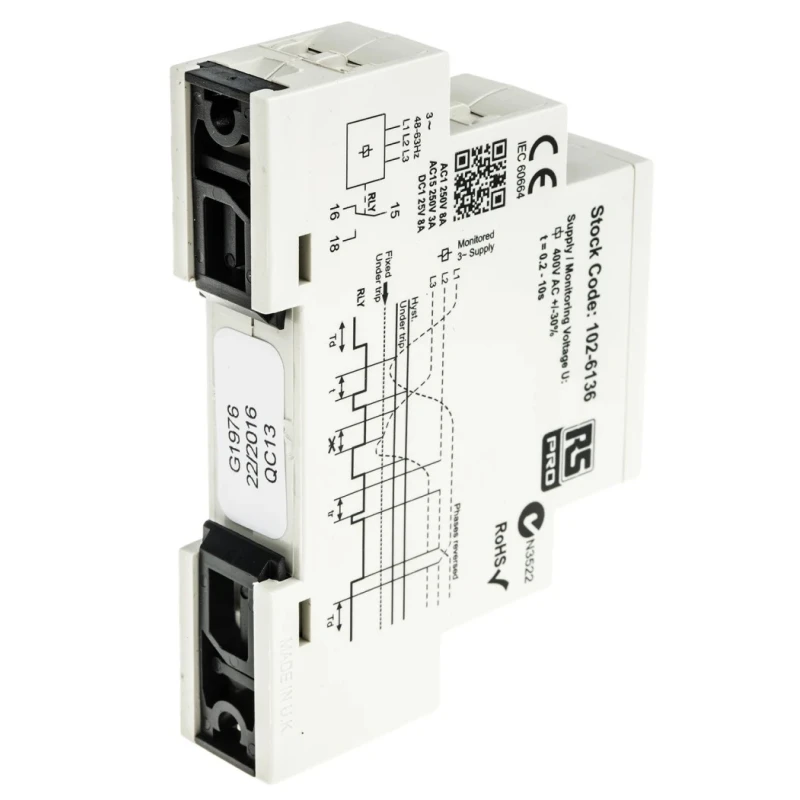

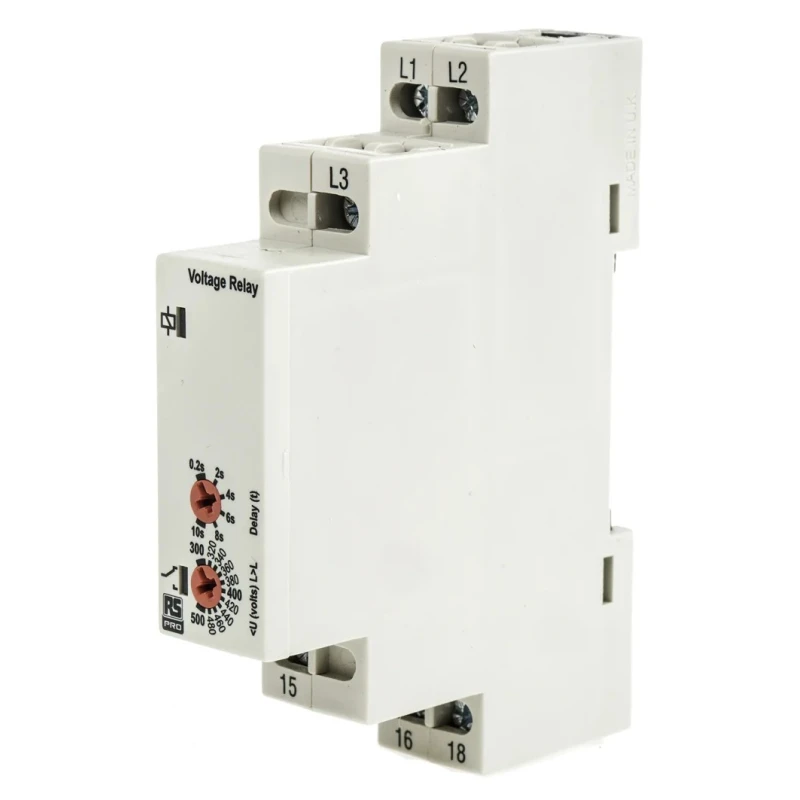

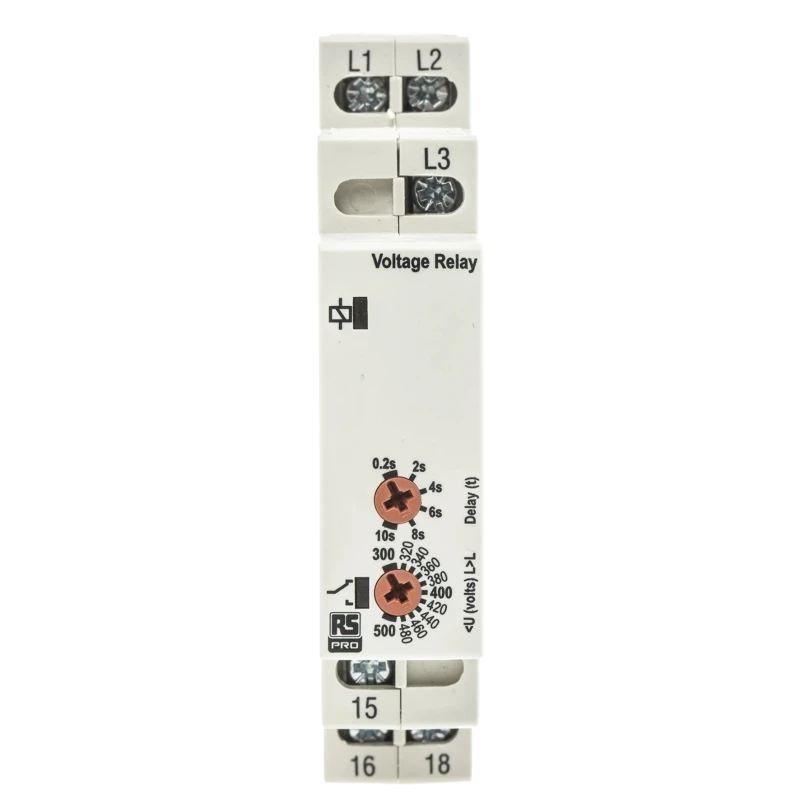

RS PRO Monitoring Relay 3 Phase 280/520 V AC Monitor Range SPDT DIN Rail 8A 102-6136
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | RS PRO |
| Height | 89mm |
| Length | 66.5mm |
| Model | 102-6136 |
| Width | 17.5mm |
| Mount Type | DIN Rail |
| Series | L |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Electrical Phase | 3 |
| Standards/Approvals | RoHS, EN 61000-6-4, cUL, IEC 60664 |
| Contact Current | 8A |
| Supply AC Voltage | 280, 520V ac |
| Monitoring Voltage Range | 280/520 V ac |
Key Features
- Designed for three-phase systems to protect against undervoltage and phase failures.
- Features a single pole double throw (SPDT) contact configuration supporting versatile circuit integration.
- Wide operating supply voltage range from 280 to 520 V AC for enhanced adaptability.
- Time delay adjustment between 0.2 to 10 seconds ensures stability against transient voltage dips.
- Robust operating temperature range from -20°C to +60°C suitable for demanding environments.
- DIN rail mount with screw terminals for secure and easy installation.
- Phase sequence and loss detection for improved equipment safety and operational reliability.
- Integrated LEDs provide clear indication of operational state and relay status.
Product Description
RS PRO presents the 102-6136 monitoring relay, expertly designed for monitoring and protecting three-phase electrical equipment in industrial and commercial settings. This relay offers voltage sensing and phase failure detection with a broad supply range of 280 - 520 V AC for versatile system integration.
With microprocessor technology, the device precisely measures and monitors phase-to-phase voltages, ensuring prompt protection against undervoltage conditions. Its single pole double throw (SPDT) configuration supports flexible control and connection options in automation panels and distribution boards.
Three-phase monitoring for reliable voltage protection in electrical panels. Voltage sensing range from 300 to 500 V AC (undervoltage sensitivity). Time delay adjustable from 0.2 to 10 seconds to prevent nuisance tripping.
Phase sequence and phase loss detection to guard against improper wiring and faults. LED indicators provide visual feedback for operational status and alerts. Screw terminal type for secure wiring and easy maintenance. Wide operating temperature from -20°C to +60°C, ensuring durability in tough environments.
The DIN rail mounting design and compact dimensions (17.5 mm x 66.5 mm x 89 mm) save space in panel installations. The relay meets international standards including RoHS, EN 61000-6-4, cUL, and IEC 60664 for quality and safety assurance.
This relay is ideal in industrial automation, manufacturing, HVAC control panels, commercial power distribution, and water treatment systems. Protect motors, pumps, and sensitive equipment where phase monitoring is critical.
Explore more Monitoring Relay solutions and industrial controls from RS PRO on EnvMart to ensure system reliability and operational safety in your facility.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The monitoring voltage range for this relay is from 280 to 520 V AC, allowing it to adapt to various three-phase systems.
This model features a single pole double throw (SPDT) contact configuration, which supports versatile circuit integration.
The maximum contact current rating for this relay is 8A, suitable for various industrial applications.
It operates effectively within a temperature range of -20°C to +60°C, making it suitable for demanding environments.
The relay is designed for DIN rail mounting, which facilitates secure and easy installation.
It uses screw terminals for secure wiring and easy maintenance, ensuring reliable connections.
This relay meets several international standards, including RoHS, EN 61000-6-4, cUL, and IEC 60664, ensuring quality and safety.
The time delay can be adjusted between 0.2 to 10 seconds, which helps to prevent nuisance tripping from transient voltage dips.
It is suitable for applications in industrial automation, manufacturing, HVAC control panels, commercial power distribution, and water treatment systems.
The dimensions of this model are 89 mm in height, 66.5 mm in length, and 17.5 mm in width, making it compact for panel installations.
It features integrated LEDs that provide clear visual feedback on the operational state and relay status.
This relay is designed for monitoring three-phase electrical systems, ensuring reliable voltage protection.
