Schneider Electric 3-Phase Monitoring Relay DPDT DIN Rail 484V AC RM17TG20

Free Delivery in India | Lowest Global Shipping Charges

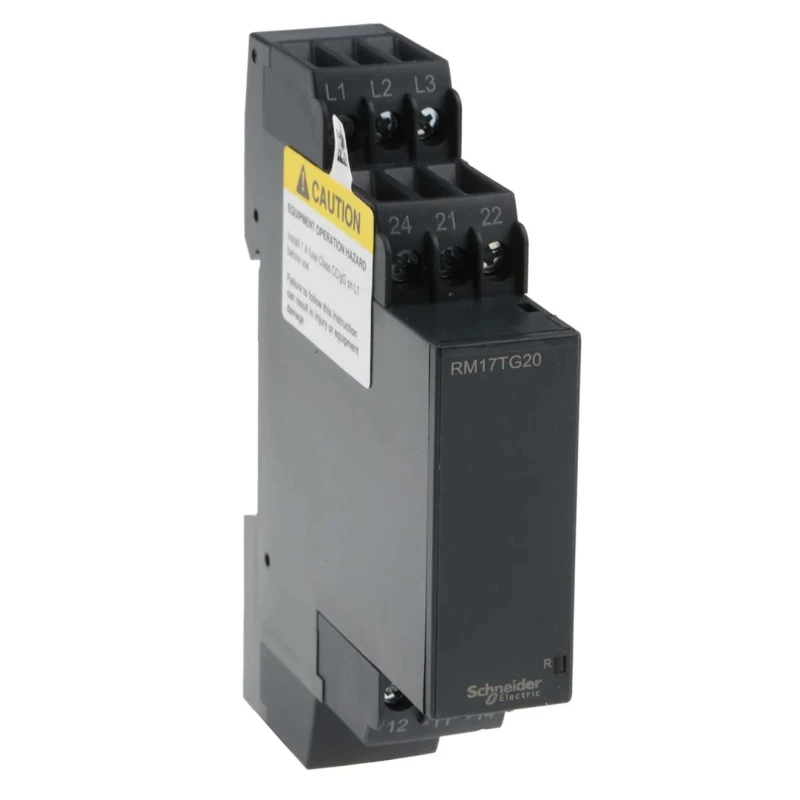

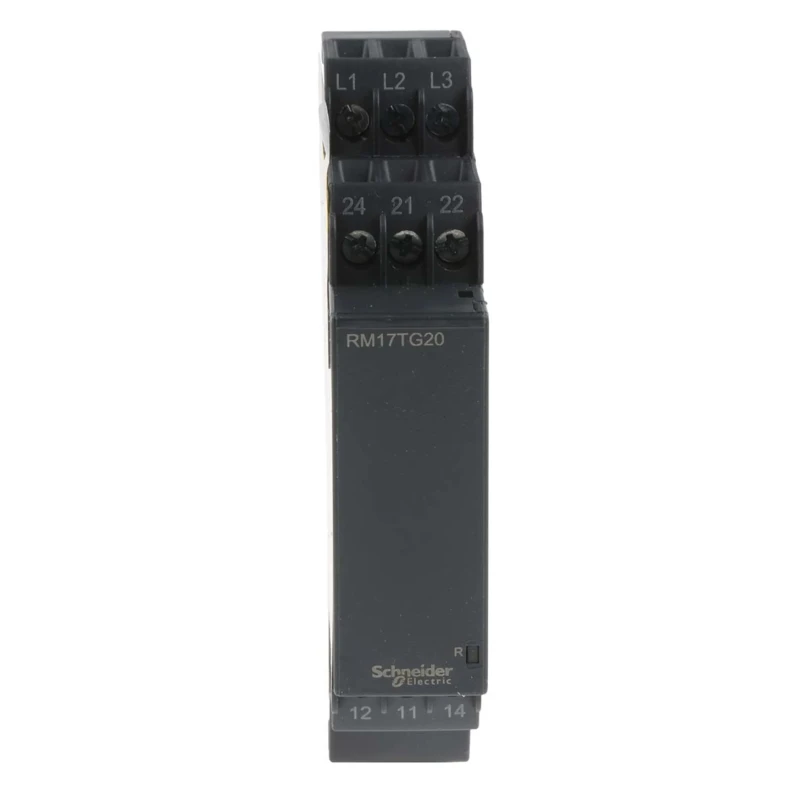

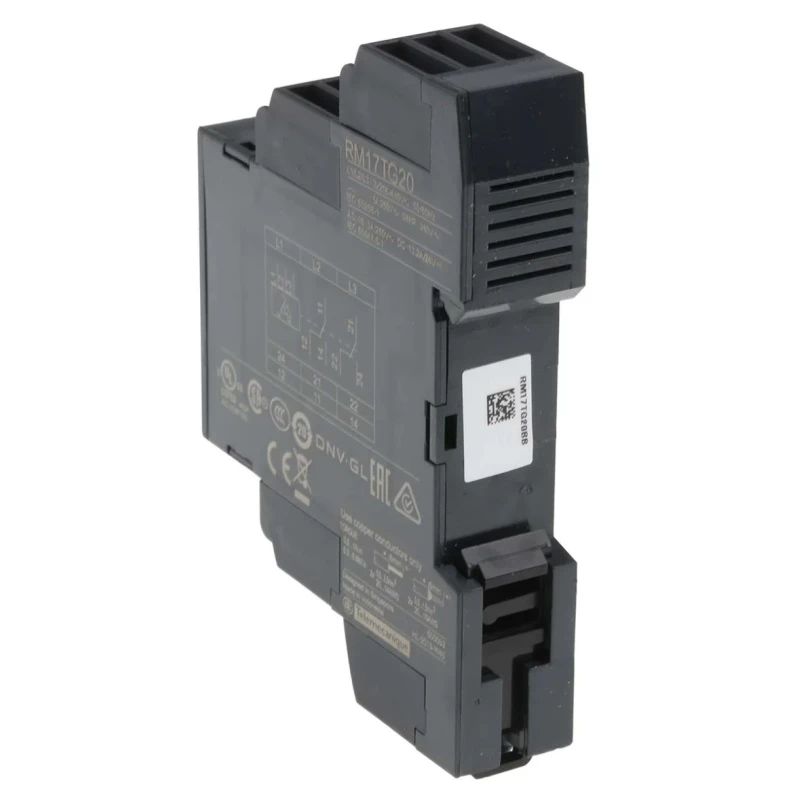

Schneider Electric 3-Phase Monitoring Relay DPDT DIN Rail 484V AC RM17TG20

Name: Schneider Electric 3-Phase Monitoring Relay DPDT DIN Rail 484V AC RM17TG20
Brand: Schneider Electric
SKU: 84730
Price: 144.5 USD
Availability: InStock



Category Monitoring Relay Brand Schneider Electric Condition New

Specifications

Country of Origin	Indonesia
Brand	Schneider Electric
Height	90mm
Function	Asymmetry, Phase Sequence
Length	72mm
Model	RM17TG20
IP Rating	IP20, IP30
Width	17.5mm
Mount Type	DIN Rail
Series	Harmony Control
Maximum Operating Temperature	50°C
Contact Configuration	DPDT
Minimum Operating Temperature	-20°C
Terminal type	Screw
Electrical Phase	3
Standards/Approvals	C-Tick, CSA, EN/IEC 60255-1, UL, GOST, GL
Switching Voltage	250V ac/dc
Contact Current	5A
Supply AC Voltage	484V ac
Brodersen Monitoring RelayBrand	Brodersen

Key Features

Monitors three-phase electrical supply for voltage asymmetry, phase loss, and sequence errors.
Supports measurement at up to 484V AC supply voltage for versatile use.
DPDT contact configuration allows reliable switching in control panels.
Compatible with DIN rail mounting for easy installation.
Features IP20/IP30 enclosure ratings for operator safety and device protection.
Fast response time ensures quick protection of motors and equipment.
Screw-type terminals provide secure and robust wire connections.
Wide operating temperature range enables performance in industrial environments.

Product Description

Schneider Electric RM17TG20 is a robust three-phase monitoring relay engineered for accurate supply voltage monitoring and protection of electrical motors and automated systems. It ensures continuous supervision of key parameters such as voltage asymmetry, phase sequence, and phase loss, thus preventing failures and reducing downtime in industrial and commercial installations.

This relay operates within a wide supply voltage range up to 484V AC, making it suitable for a variety of machinery and equipment. Its DPDT contact configuration enables flexible switching capabilities for control circuits, alarms, or shut-off actions when abnormal conditions are detected.

Installation is straightforward due to DIN rail mount compatibility, fitting seamlessly into standard electrical enclosures and control panels. The RM17TG20 is equipped with screw terminal connections allowing secure and durable wiring required for heavy-duty environments.

With a design focused on reliability, the relay features IP20 and IP30 protection ratings. This ensures user safety and guards the unit against dust and accidental contact. The unit is part of the Harmony Control series, recognized for consistent performance and high utility across industrial applications.

Operating temperature ranges from -20°C to 50°C, catering to a broad spectrum of operational settings from HVAC plants, manufacturing lines, process industries, to commercial electrical boards. Standard certifications include C-Tick, CSA, EN/IEC 60255-1, UL, GOST, and GL, reflecting compliance with global industrial standards.

Industrial use cases include protection and monitoring of three-phase motors, prevention of equipment damage due to supply anomalies, and enhancement of system reliability in automation, water treatment, manufacturing, and commercial infrastructure.

Explore more Monitoring Relays and automation solutions within EnvMart's Schneider Electric collection, or browse the complete range of industrial relay technology for your electrical control projects.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum supply voltage for this monitoring relay is 484V AC, allowing it to be used in a variety of applications requiring three-phase monitoring.

This model monitors voltage asymmetry, phase sequence, and phase loss, providing essential protection for electrical motors and automated systems.

The relay features a DPDT (Double Pole Double Throw) contact configuration, enabling reliable switching for control circuits and alarms.

The dimensions of this monitoring relay are 90mm in height, 72mm in length, and 17.5mm in width.

It is designed for DIN rail mounting, making installation straightforward in standard electrical enclosures and control panels.

The operating temperature range for the RM17TG20 is from -20°C to 50°C, suitable for various industrial environments.

This unit is equipped with screw-type terminals, providing secure and robust wire connections for heavy-duty applications.

The relay has IP20 and IP30 protection ratings, ensuring user safety and guarding against dust and accidental contact.

This monitoring relay complies with several standards, including C-Tick, CSA, EN/IEC 60255-1, UL, GOST, and GL.

The contact current rating for this model is 5A, suitable for various control applications.

This monitoring relay is suitable for protecting and monitoring three-phase motors, enhancing system reliability in automation, water treatment, and manufacturing.

The RM17TG20 is part of the Harmony Control series, known for its consistent performance in industrial applications.
