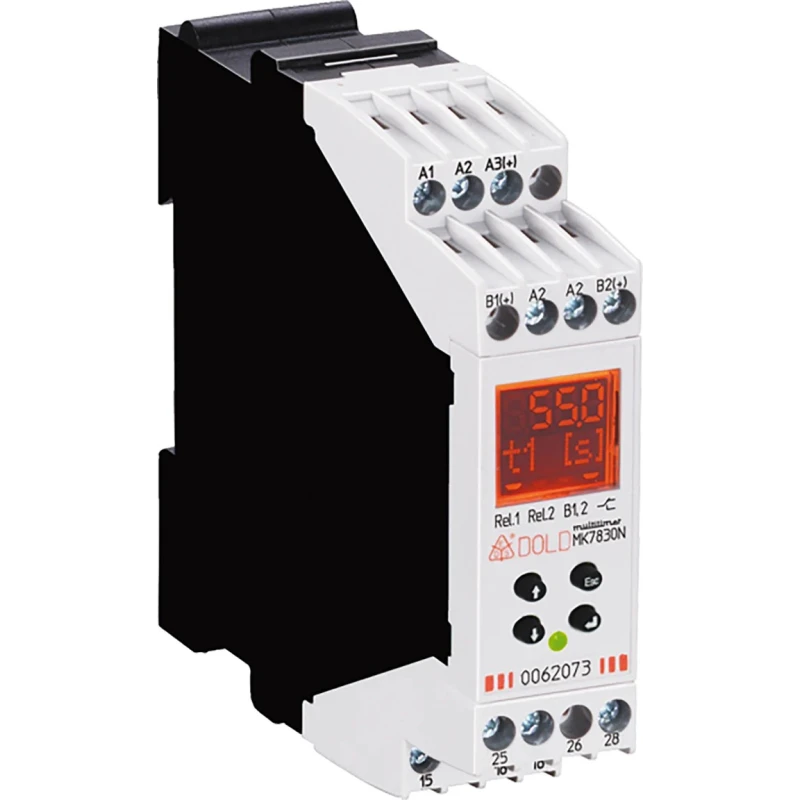

Dold Monitoring Relay DPDT DIN Rail, Adjustable Multifunction Timer, AC/DC24V+AC230V MK7830N.82 AC/DC24V+AC230V 0,02s-9999h

The Dold MK7830N.82 AC/DC24V+AC230V 0,02s-9999h is an advanced digital multifunction monitoring relay designed for precise timing and automation control requirements in industrial environments. Featuring a DPDT (double pole, double throw) contact configuration, this monitoring relay is engineered for mounting on DIN rails, making it easy to install within a broad array of control and automation panels.

This relay accommodates both AC/DC 24V and AC 230V operation, allowing for seamless integration into diverse electrical systems. Its timing adjustment capabilities extend from as low as 0.02 seconds up to 9999 hours, providing exceptional versatility for short and long-duration processes. Users benefit from a comprehensive set of selectable timer functions, such as instantaneous contact, on-delay, off-delay, fleeting, delayed pulse, cyclic operation, and pulse forming. Each output relay can be independently configured to meet specific application requirements, enhancing control system flexibility.

Mechanical connections are secured via robust screw terminals, and the inclusion of pluggable terminal blocks makes routine replacement or servicing straightforward. LED indicators provide direct visual status feedback for efficient diagnostics and maintenance.

The device’s compact form factor (22.5 mm width, 99 mm length, and 90 mm height) is purpose-built for dense panel installations. With an IP20/IP40 enclosure rating, it offers a good balance of electrical safety and environmental protection, suitable for typical industrial and automation settings. The relay operates reliably between 0°C and 55°C, supporting continuous performance in demanding process, building automation, and manufacturing environments. Power consumption is rated at 9 VA.

Applications for the Dold MK7830N.82 include automated machinery, process control systems, factory automation, panel building, and building management systems. Its multifunction timing and monitoring features are ideal for scenarios such as sequential control, motor protection, system interlocks, and any applications needing accurate and repeatable delays or cycles.

This monitoring relay is constructed according to demanding quality and safety standards, with compliance to CE and RoHS directives, and is produced in Germany. The product series, MK7830N, is renowned for its robust digital timers and monitoring capability for diverse industrial settings.
