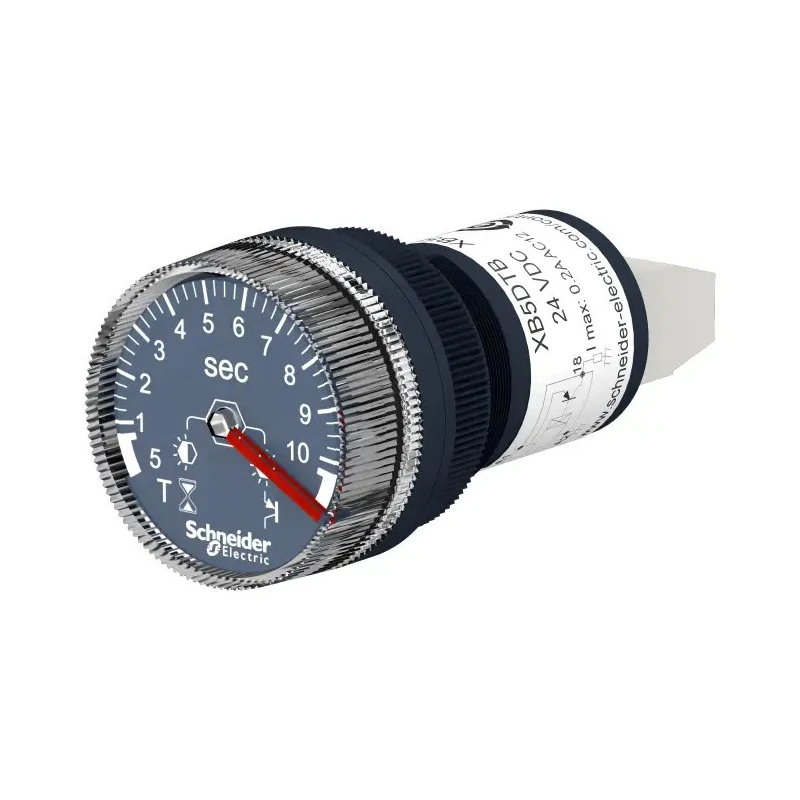

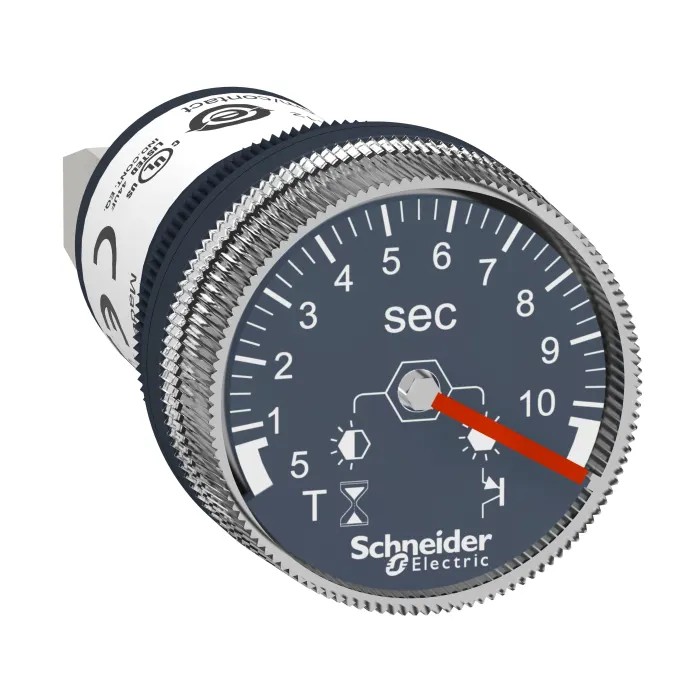

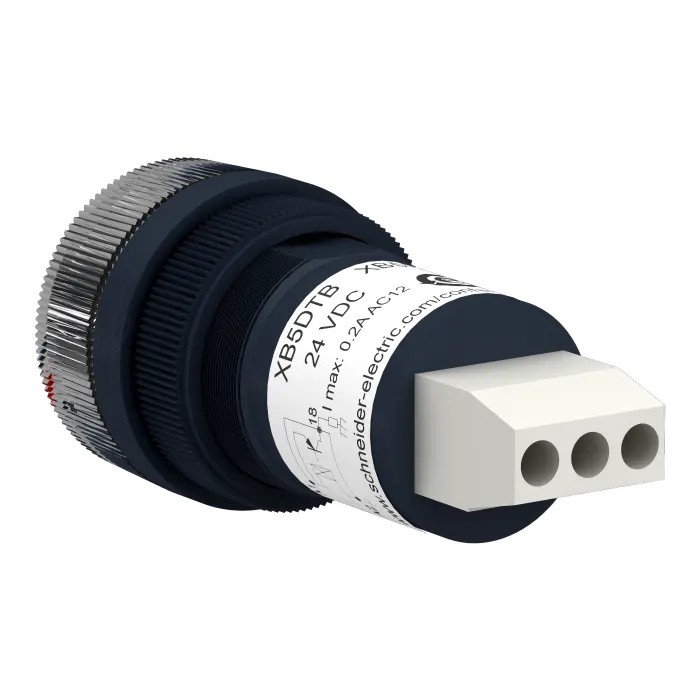

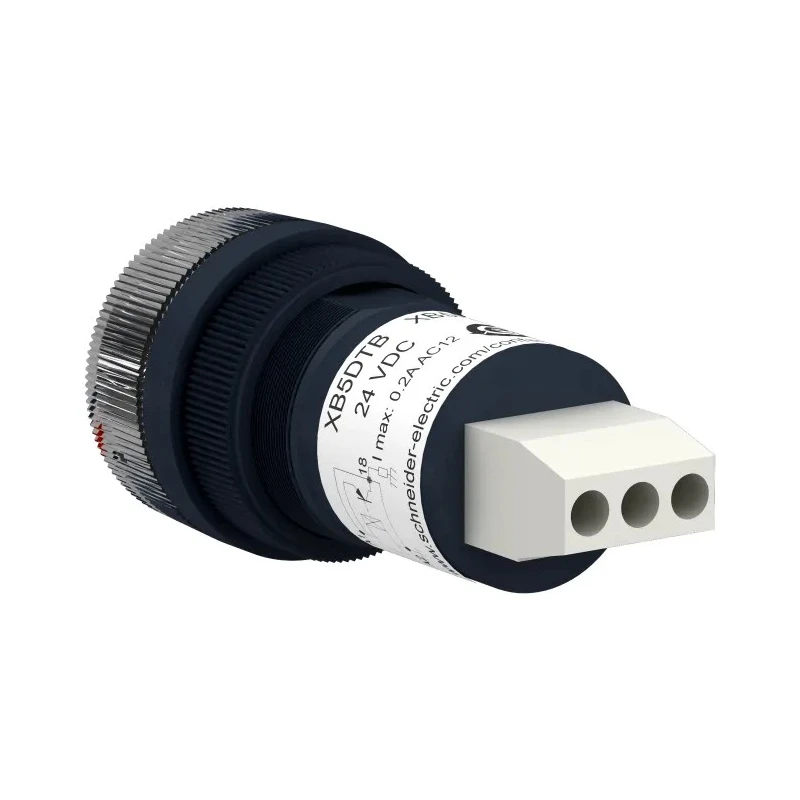

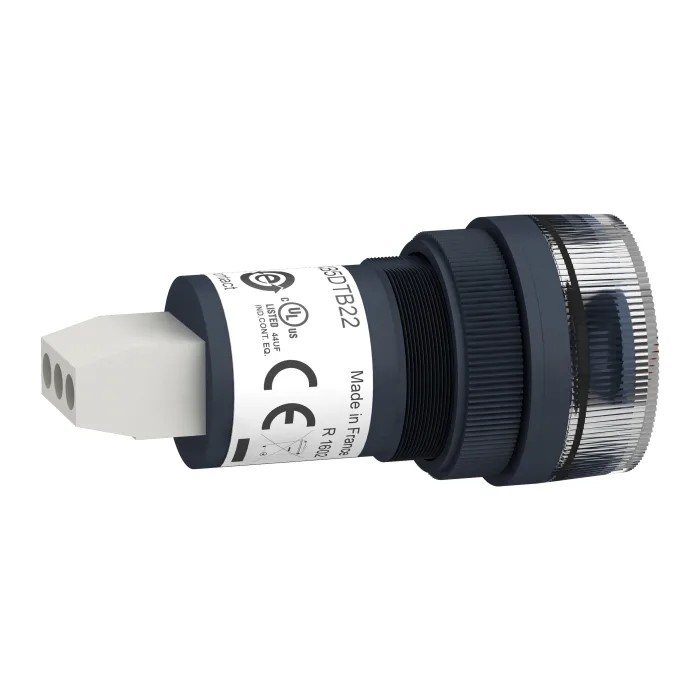

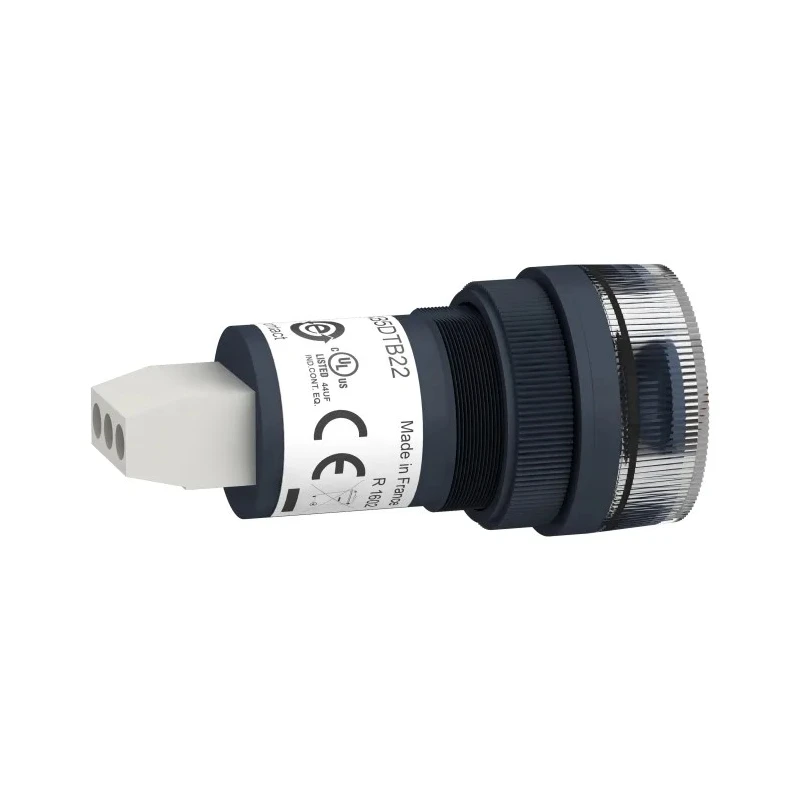

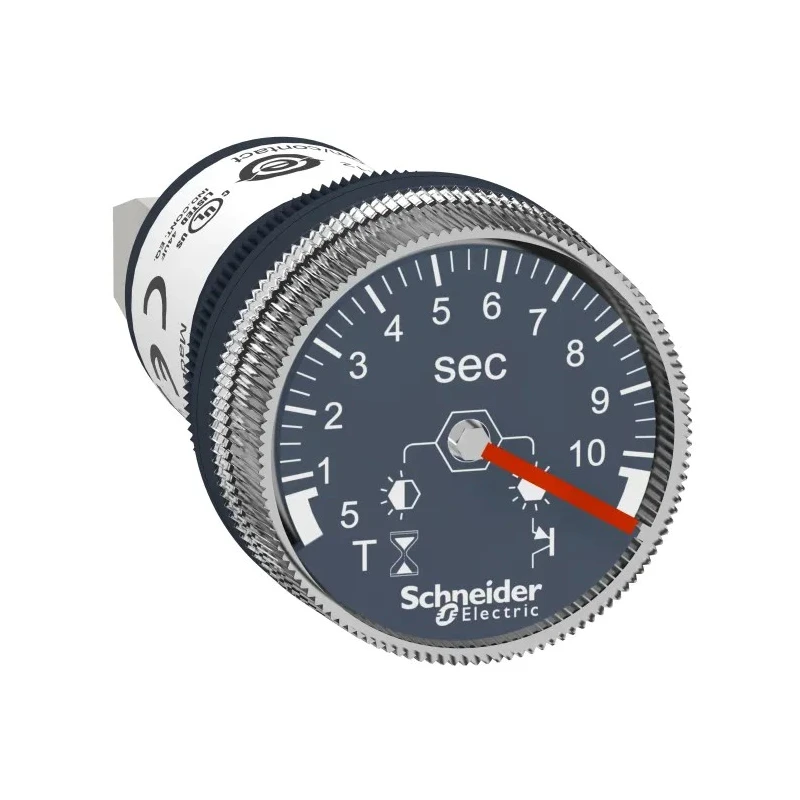

Schneider Electric Harmony XB5 Series Panel Timer Relay 24V DC/AC 0.5 - 10 s IP65 Panel Mount XB5DTB22
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Height | 62mm |
| Function | Offset Double Ring End |
| Length | 62mm |
| Model | XB5DTB22 |
| IP Rating | IP65, IP20 |
| Width | 90mm |
| Mount Type | Panel |
| Series | Harmony XB5 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Time Range | 0.5 to 10 s |
| Terminal type | Screw |
| Standards/Approvals | UL Listed, UL 508, EN/IEC 61812-1, CE |
| Better World Claim | Repairable by the End User |
| Number of Timer Functions | 1 |
| Supply DC Voltage | 24 V dc |
| Supply AC Voltage | 24V ac |
| Crouzet Panel Mount Timer Relay, 24V dc, 0.5 → 10s, 1-Function, Solid StateBrand | Crouzet |
Key Features
- Operates on 24V DC and 24V AC supply for flexible installation.
- Adjustable timing from 0.5 to 10 seconds, suitable for rapid control tasks.
- Panel mount design enables secure integration into industrial automation panels.
- IP65/IP20 rated enclosure ensures resistance to dust and water ingress.
- Open collector solid-state output enhances switching speed and reliability.
- Wide operating temperature range from -20°C to +60°C for challenging environments.
- Standard 22mm mounting hole simplifies replacement and new installation.
- Screw terminals provide robust and easy electrical connections.
Product Description
The Schneider Electric Harmony XB5 Series Panel Timer Relay XB5DTB22 is a precision timer relay engineered for industrial and automation applications requiring reliable, fast switching and clear timing control. Designed for universal mounting, its panel-mount form factor with a standard 22mm hole simplifies integration with new or existing equipment.
This relay supports both 24V DC and 24V AC supplies, offering versatile compatibility in mixed control environments. The adjustable timing range of 0.5 to 10 seconds allows for fine-tuned operation across various process instruments, model vehicles, and sensor control tasks. Its solid-state open collector output delivers rapid switching performance, minimal wear, and lower power consumption compared to electromechanical types.
The IP65/IP20 enclosure rating provides robust defense against dust and water ingress, making it suitable for installations in industrial, laboratory, or demanding commercial settings. Its wide operating temperature spectrum from -20°C to +60°C ensures consistent performance in harsh climates.
Screw terminals enable secure wiring and maintenance, while the integrated short-circuit protection guarantees greater operational safety. The relay's lightweight construction minimizes strain on panel structures and enhances ergonomic handling during installation and servicing.
Applications include industrial process control, radio-controlled models, pressure and flow-rate sensors, and general automation scenarios requiring fast, reliable timing actions. The Harmony XB5 timer relay stands out for its efficiency, durability, and straightforward serviceability for end-users.
Operates with 24V DC and 24V AC supply voltages for flexible deployment across multiple automation platforms. Adjustable timer range from 0.5 to 10 seconds meets a variety of process requirements. IP65/IP20 rating ensures durability against environmental hazards.
Panel mount compatibility with screw terminals for streamlined installation. Output short-circuit protection enhances electrical safety and reliability. Solid-state relay design ensures rapid response and high endurance.
Broad operating temperature range suits diverse industrial and commercial environments. Fast switching time reduces delays in control loops and improves throughput.
Ideal for process instrumentation, automated test benches, and industrial control cabinets, Schneider Electric's Harmony XB5 Series timer relays enable precise time-based switching in modern automation systems. Discover the full range of Schneider Electric industrial products on EnvMart's Timer Relay category for broader automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The timer relay has an adjustable timing range from 0.5 to 10 seconds, allowing for precise control in various applications.
It operates on both 24V DC and 24V AC supply voltages, providing flexibility for different automation setups.
The enclosure has an IP65/IP20 rating, ensuring resistance to dust and water ingress, suitable for industrial environments.
The dimensions are 62mm in height, 62mm in length, and 90mm in width.
This model is designed for panel mounting, simplifying integration into existing systems.
It features a solid-state open collector output, which enhances switching speed and reliability compared to electromechanical types.
The operating temperature range is from -20°C to +60°C, making it suitable for various environmental conditions.
It uses screw terminals for secure and reliable electrical connections.
It is compliant with UL Listed, UL 508, EN/IEC 61812-1, and CE standards, ensuring safety and reliability in its applications.
The specific weight of this model is not provided, but its lightweight construction minimizes strain on panel structures during installation.
It is suitable for various applications including industrial process control, automated test benches, and sensor control tasks.
This timer relay is manufactured in India.
