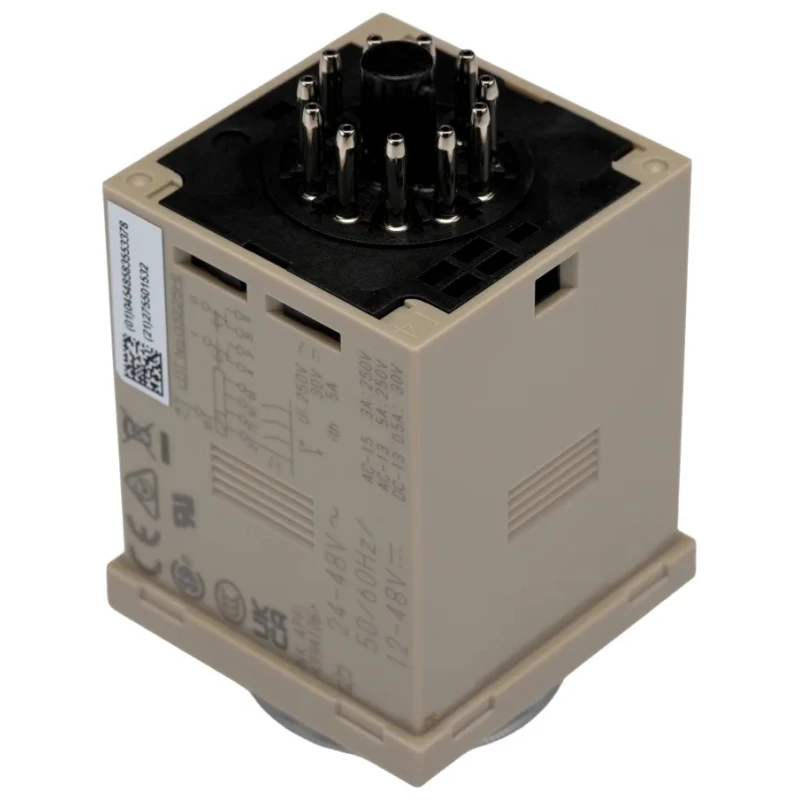

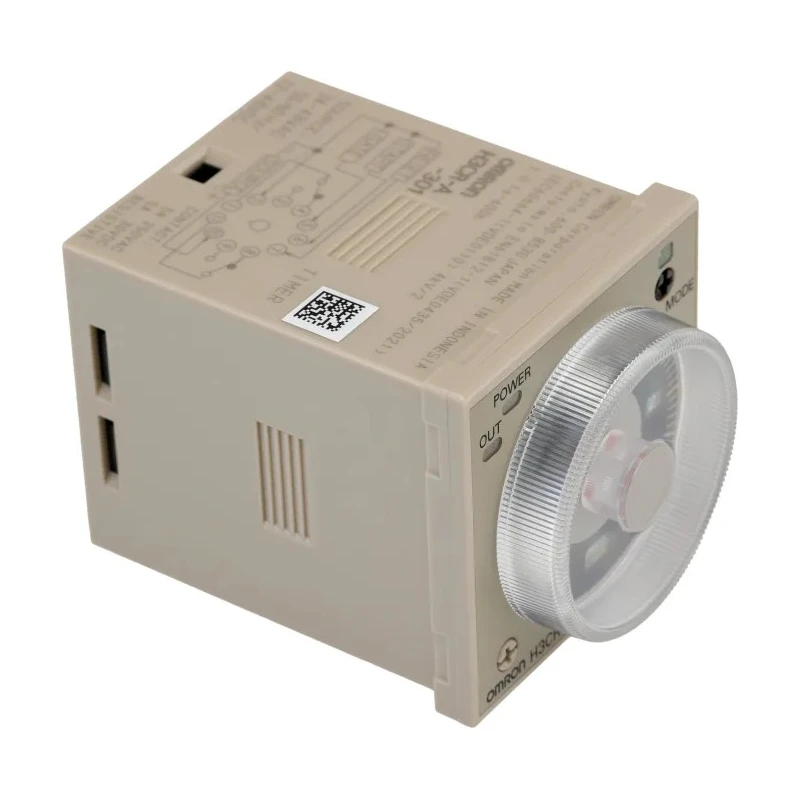

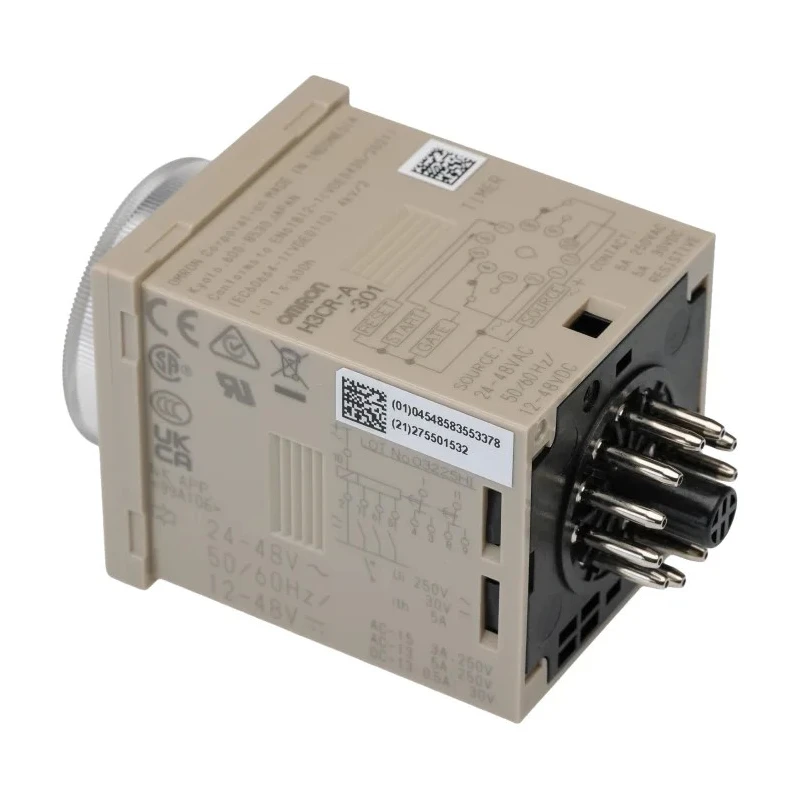

Omron DIN Rail Multifunction Timer Relay DPDT, 2-Contact, 12–48V DC, 24/48V AC, 0.1s–600h, 5A H3CR

Free Delivery in India | Lowest Global Shipping Charges

Omron DIN Rail Multifunction Timer Relay DPDT, 2-Contact, 12 - 48V DC, 24/48V AC, 0.1s - 600h, 5A H3CR

Name: Omron DIN Rail Multifunction Timer Relay DPDT, 2-Contact, 12 - 48V DC, 24/48V AC, 0.1s - 600h, 5A H3CR
Brand: Omron
SKU: 81798
Price: 172.09 USD
Availability: InStock



Category Timer Relay Brand Omron Condition New

Specifications

Country of Origin	Indonesia
Brand	Omron
Height	81.6mm
Function	Multifunction
Length	48mm
Model	H3CR
IP Rating	IP40
Mode	ON Delay
Width	48mm
Mount Type	DIN Rail
Series	H3CR
Maximum Operating Temperature	55°C
Contact Configuration	DPDT
Minimum Operating Temperature	-10°C
Time Range	0.1 s to 600 h
Terminal type	Crimp
Standards/Approvals	CSA, EN61812-1, LR, CE, NK, IEC60664-1, UL, CCC
Number of Contacts	2
Number of Timer Functions	Multifunction
Switching Voltage	250V
Contact Current	5A
Supply DC Voltage	100 to 125 V dc
Timing Adjustment	Knob
Supply AC Voltage	24, 48V ac

Key Features

Time delay adjustment from 0.1 seconds to 600 hours.
DPDT contact configuration with two switching contacts.
Maximum switching current of 5A for robust operation.
Works reliably across -10°C to +55°C ambient temperatures.
Plug-in crimp terminals support fast and secure installation.
IP40 protection rating for basic dust and ingress resistance.
ON delay mode and knob-based control for user convenience.
Certified to CSA, EN61812-1, UL, CE, CCC, NK, IEC60664-1, LR standards.

Product Description

The Omron H3CR-A-301 AC24-48/DC12-48 is a reliable DIN rail timer relay engineered for meticulous control in automation panels, lighting circuits, HVAC systems, machine operations, and industrial timing applications. Combining compact design with multifunction timing capabilities, it delivers flexibility and convenience for systems requiring scheduled operations or delay circuit interventions.

Its wide voltage compatibility - accepting 12 to 48V DC, and 24/48V AC - allows seamless integration across diverse control systems. The relay’s adjustable time delay spans from instantaneous 0.1 seconds to exceptionally long 600 hours, enabling both rapid and extended timing requirements. The DPDT double contact configuration provides robust switching for controlling multiple circuits and complex process sequences.

The timer relay operates reliably within ambient temperatures from -10°C to +55°C, making it suitable for operation in demanding environments such as industrial automation lines, commercial lighting, and HVAC timer circuits. Installation is straightforward, thanks to the plug-in crimp terminal connectors and standardized DIN rail mounting. The compact body, measuring 48mm wide, 48mm deep, and 81.6mm high, conserves panel space while fitting easily into crowded enclosure layouts.

Time intervals are set with an intuitive knob adjustment mechanism, and the relay supports ON Delay mode essential for sequential starts, delay circuits, and event-driven automation. Its IP40 rating ensures basic ingress protection while international certifications - CSA, EN61812-1, UL, CE, CCC, NK, IEC60664-1, LR - attest to its global reliability and compliance.

Omron’s H3CR Series timer relays, including this exact model, are frequently used in sequential logic control, safety delay functions, lighting operation automation, and motor protection timing. Typical applications include machinery panel sequences, HVAC unit cycling, industrial conveyor delays, and lighting timer systems.
