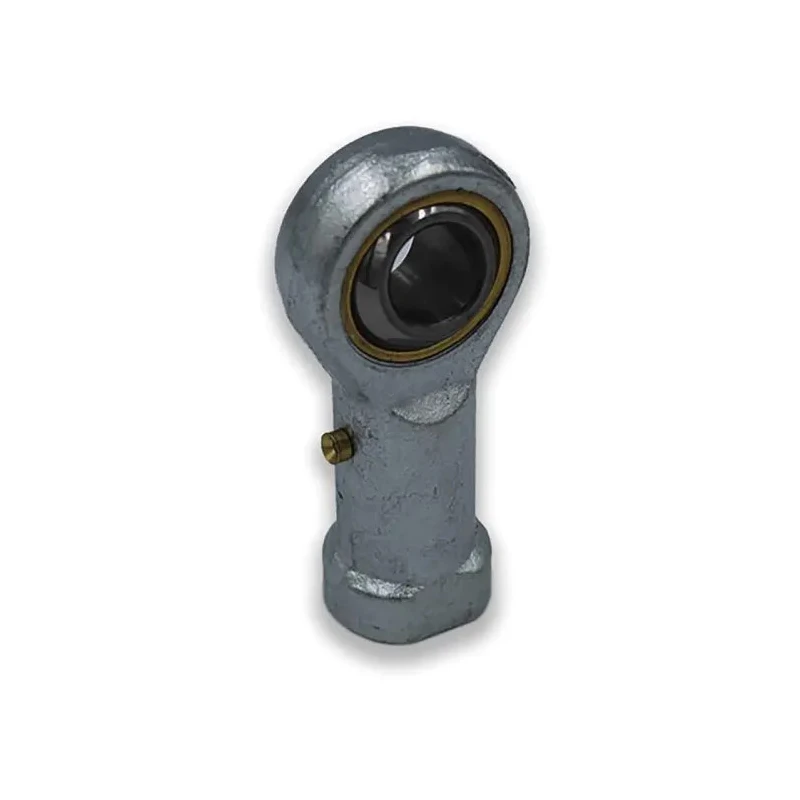

LDK Carbon Steel Female Rod End Bearing M20 x 1.5 Thread, 20mm Bore, Left Hand Thread PHS 20L

LDK PHS 20L is a high-quality female rod end bearing constructed from carbon steel featuring a connection size of M20 x 1.5 with left hand thread and a 20mm bore diameter. It is designed for precise rotary bearing applications in demanding mechanical and fluid power systems.

The ball component is made from AISI 52100 bearing steel that has been heat treated to a hardness rating of HRC58-64, precision ground, and polished to provide exceptional durability and smooth operation.

The body exhibits carbon steel construction with clear zinc plating that offers corrosion resistance and long service life. The race is brass, complementing the steel/brass sliding contact surfaces for reliable performance under dynamic loads.

With a dynamic load rating of 23kN and a static load rating of 46.5kN, this rod end is capable of supporting substantial forces in industrial applications including construction machinery, manufacturing equipment, and general mechanical assemblies.

The overall diameter is 46mm, and the width spans 100mm, making it suitable for robust installations needing sturdy rod ends with left hand thread direction.

Manufactured in China, the product does not list any specific standards or certifications but is engineered to meet typical industrial requirements in bearing and rotary joint applications.

Made from carbon steel with clear zinc plating for corrosion resistance. Features a female M20 x 1.5 connection with left hand thread. Bore diameter is precisely 20mm for shaft compatibility. Ball made from heat-treated, precision-ground, and polished AISI 52100 bearing steel.

Dynamic load rating of 23kN and static load rating of 46.5kN. Outside diameter of 46mm and overall width of 100mm. Brass race and steel/brass sliding contact surfaces ensure smooth bearing action. Designed for demanding industrial mechanical and fluid power applications.

Country of origin is China. Explore EnvMart's extensive range of Rod End Bearings and mechanical components to find compatible products for your industrial needs.
