SMC Automatic Condensate Drain 1/2 Inch, Float Switch, 0.05 - 1 MPa, 5 - 60°C, EAD202-F02

The SMC EAD202-F02 Automatic Condensate Drain is engineered for pneumatic air preparation and fluid power applications. This advanced drain valve is designed to evacuate unwanted condensate automatically from compressed air systems, thereby protecting downstream equipment and ensuring operational reliability. Featuring an automatic bleed valve with a float switch, the EAD202-F02 model enables hands-free operation, adjusting to fluctuating condensate volumes encountered in industrial processes.

Specifically suited for installation at the lowest point of a compressed air line, this model supports a 1/2 inch inlet port and a 1/4 inch outlet port, making it compatible with prevailing air system standards. The drain operates efficiently over a wide pressure range - minimum 0.05 MPa to maximum 1 MPa - accommodating variable compressor outputs and maintaining stability under different load conditions. Temperature tolerance stretches from 5°C up to 60°C, allowing deployment in both chilled and heated environments, supporting a range of industrial and laboratory setups.

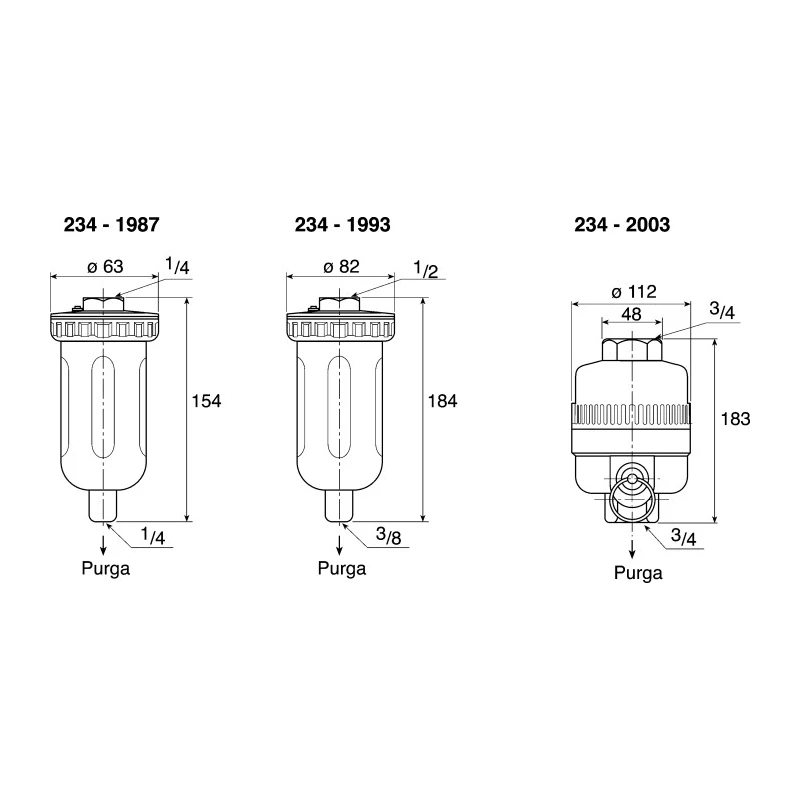

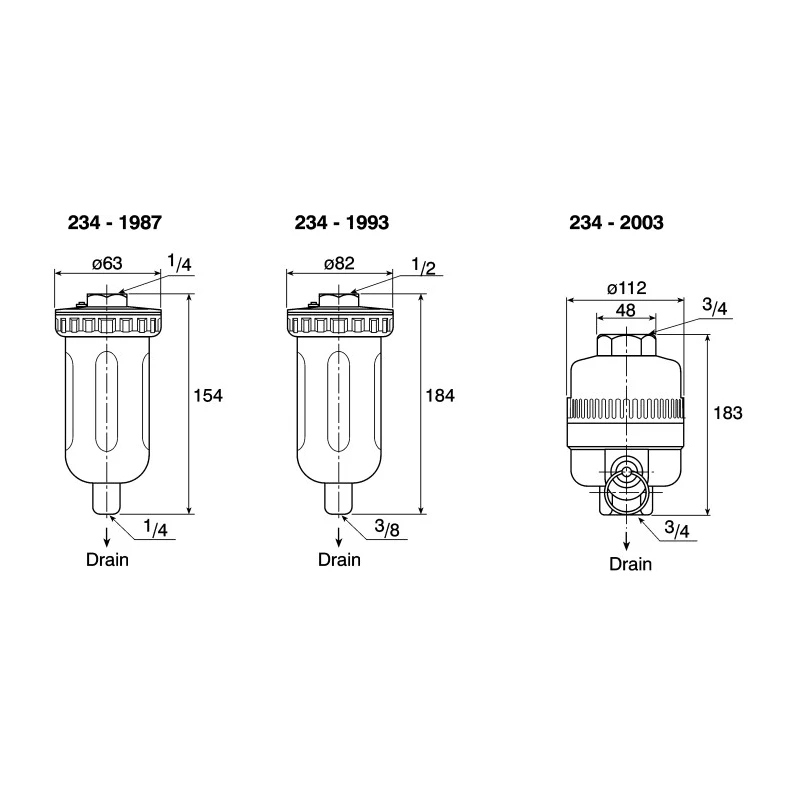

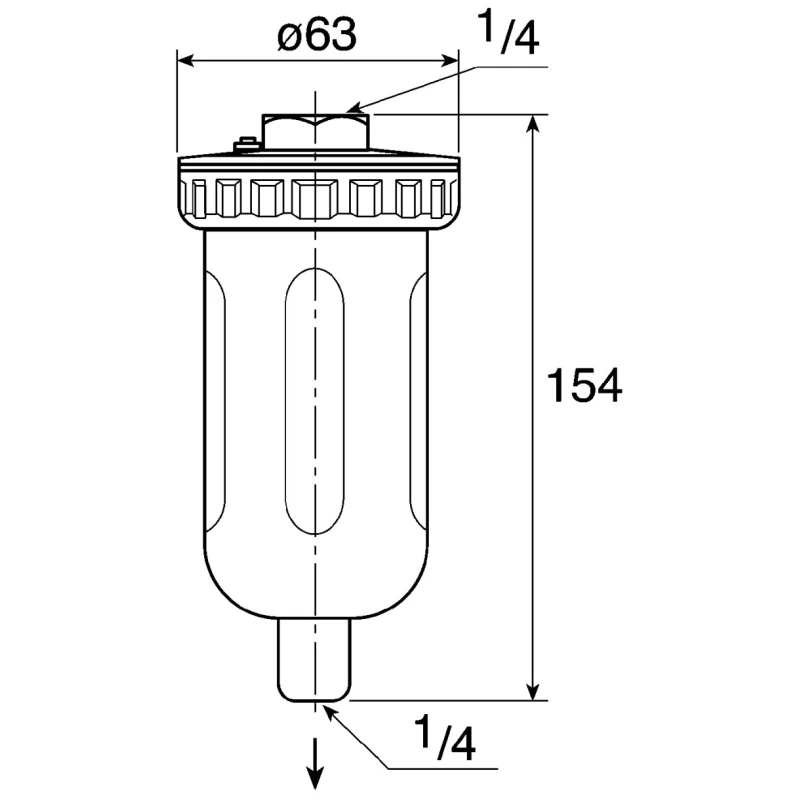

Measuring just 154 mm in height, the compact form factor eases integration in space-constrained machinery configurations. The automatic operation is facilitated by a responsive float switch mechanism, which triggers draining only when condensate accumulates, preventing unnecessary air loss and maximizing energy efficiency.

The robust construction and French engineering origins ensure a reliable, long-term solution for condensate removal. This ensures that pneumatic circuits, manufacturing equipment, HVAC systems, and laboratory pneumatic setups maintain optimum performance and minimize corrosion or water contamination. Industrial applications include manufacturing plants, water treatment facilities, large-scale pneumatic tools, and HVAC air control installations.

For easy maintenance and system reliability, the EAD202-F02 is designed with accessibility in mind. Technicians can readily access the drain for cleaning or replacement, and its automatic function reduces manual intervention. Take advantage of the best practices in pneumatic air preparation by selecting this SMC automatic drain, offering proven engineering and operational excellence.
