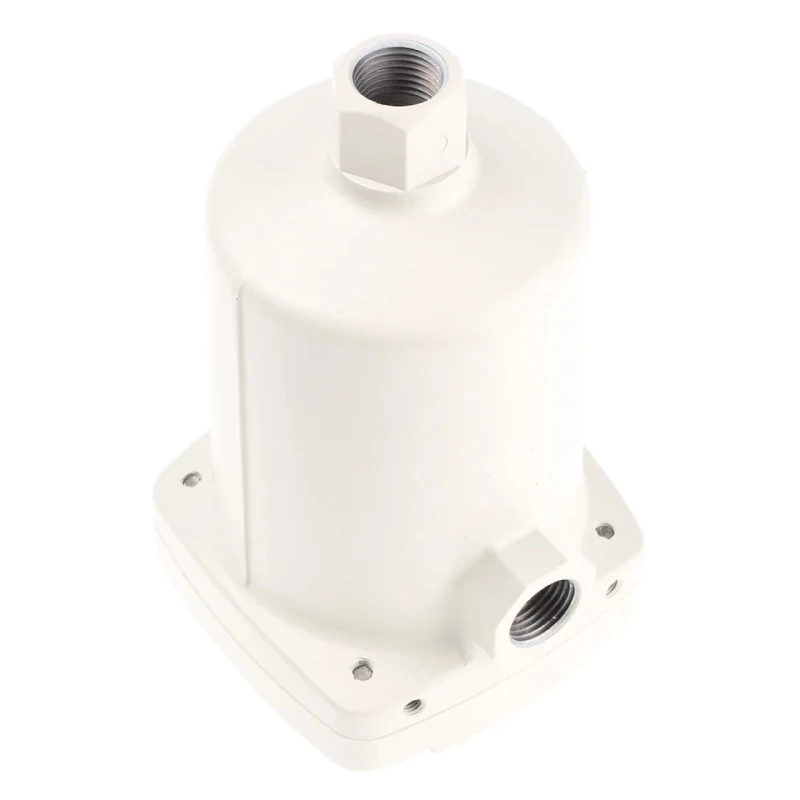

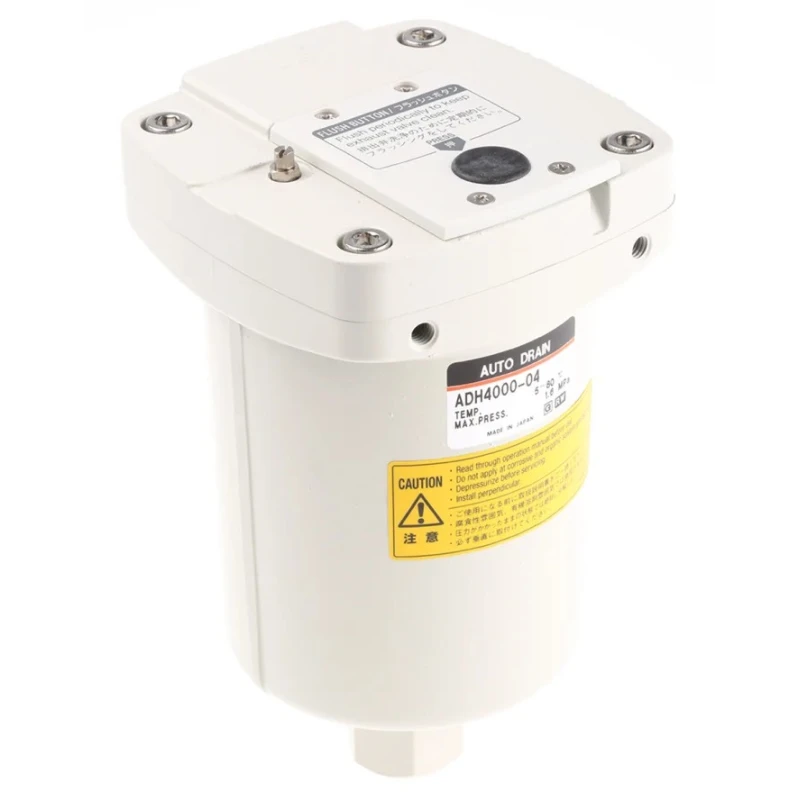

SMC Automatic 1/2 in Female Condensate Drain 400 cm³/min, ADH4000-04

Free Delivery in India | Lowest Global Shipping Charges

SMC Automatic 1/2 in Female Condensate Drain 400 cm³/min, ADH4000-04



Category Condensate Drain Brand SMC Condition New

Specifications

Country of Origin	India
Brand	SMC
Maximum Operating Pressure	1.6 Mpa
Height	189mm
Model	ADH4000-04
Depth	108mm
Width	100mm
Maximum Operating Temperature	60°C
Minimum Operating Temperature	5°C
Drain Type	Automatic
Bowl Capacity	400cm³/min
Inlet Thread Standard	Rc(PT)
Minimum Operating Pressure	0.05MPa
Inlet Port Thread Size	1/2 in Female
Outlet Port Thread Size	0.5in
SMC Automatic Condensate Drain 400 cm³/min, AD402-04Brand	SMC

Key Features

This condensate drain features an automatic drain type for reliable fluid discharge.
It has a 1/2 in female inlet thread and 0.5 in outlet port thread for easy piping connections.
Operates at a minimum pressure of 0.05 MPa and a maximum operating pressure of 1.6 MPa.
Designed for temperature operation from 5°C minimum to 60°C maximum.
Constructed with Rc(PT) thread standard for inlet and outlet ports.

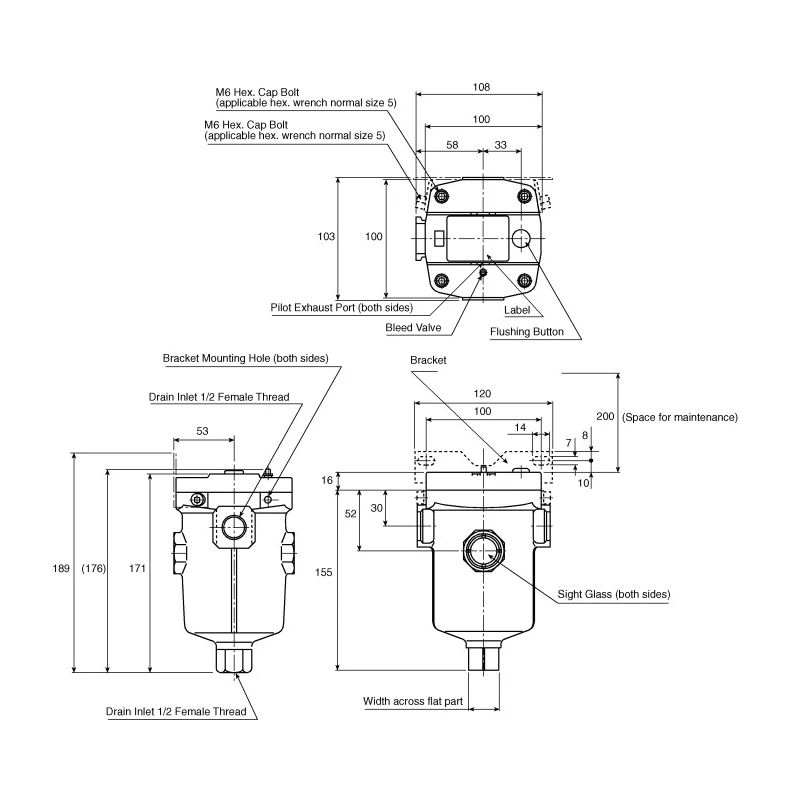

Compact dimensions measure 189 mm height, 100 mm width, and 108 mm depth.
Ideal for pneumatic air preparation applications in industrial, manufacturing, and fluid power systems.
Features a float type auto drain with normally open valve, ensuring no back pressure and easy maintenance.

Product Description

SMC ADH4000-04 is an automatic condensate drain designed for pneumatic air preparation systems, delivering a bowl capacity of 400 cm³/min. It has a 1/2 inch female inlet female thread and a 0.5 inch outlet port thread conforming to Rc(PT) standards. The drain operates reliably within a pressure range from 0.05 MPa minimum to 1.6 MPa maximum and a temperature range from 5°C to 60°C.

The product features a heavy-duty ADH series design with a float type auto drain mechanism including a normally open valve to prevent back pressure. Compact in size, it measures 189 mm in height, 100 mm in width, and 108 mm in depth, suitable for space-constrained industrial pneumatic setups.

This condensate drain ensures long life reliability, easy operation, and maintenance, especially suited for industrial automation, fluid power, and pneumatic air preparation applications. Its robust construction supports continuous and reliable condensate removal to protect compressed air systems.

This drain type is automatic, effectively discharging condensate without manual intervention. Designed with Rc(PT) thread standards, the inlet and outlet ports facilitate secure piping connections. Supports operation at pressures ranging from 0.05 MPa to 1.6 MPa, maintaining performance stability.

Operates within a temperature range of 5°C to 60°C, suitable for diverse industrial environments. Compact dimensions enable integration in tight installation spaces within pneumatic systems. Float type mechanism with normally open valve prevents back pressure issues.

Heavy duty build ensures durability for demanding industrial conditions. This product is essential for industries requiring efficient pneumatic air preparation, including manufacturing, fluid power systems, and industrial automation sectors.
