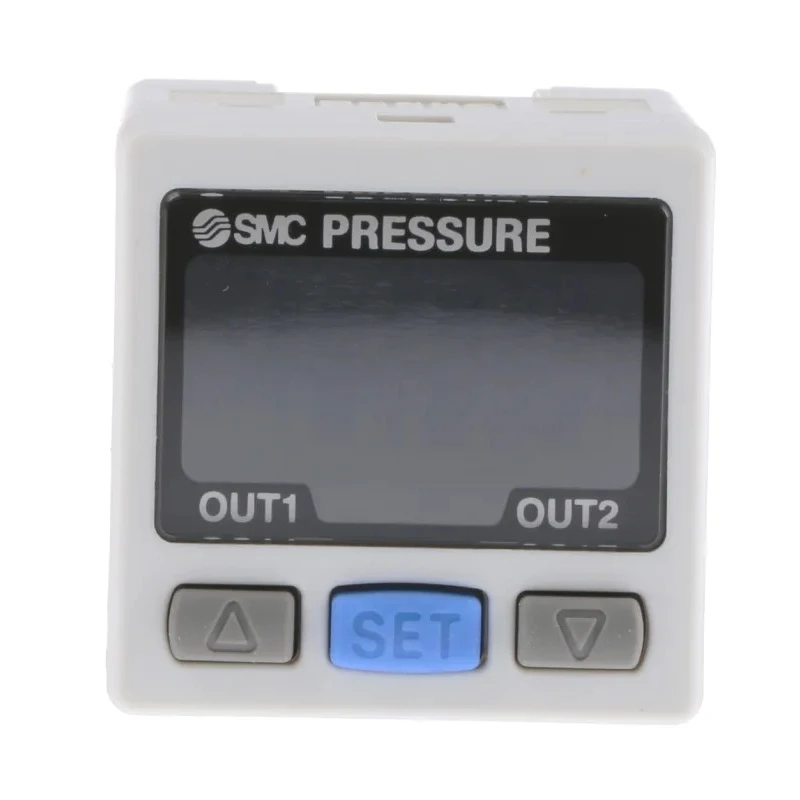

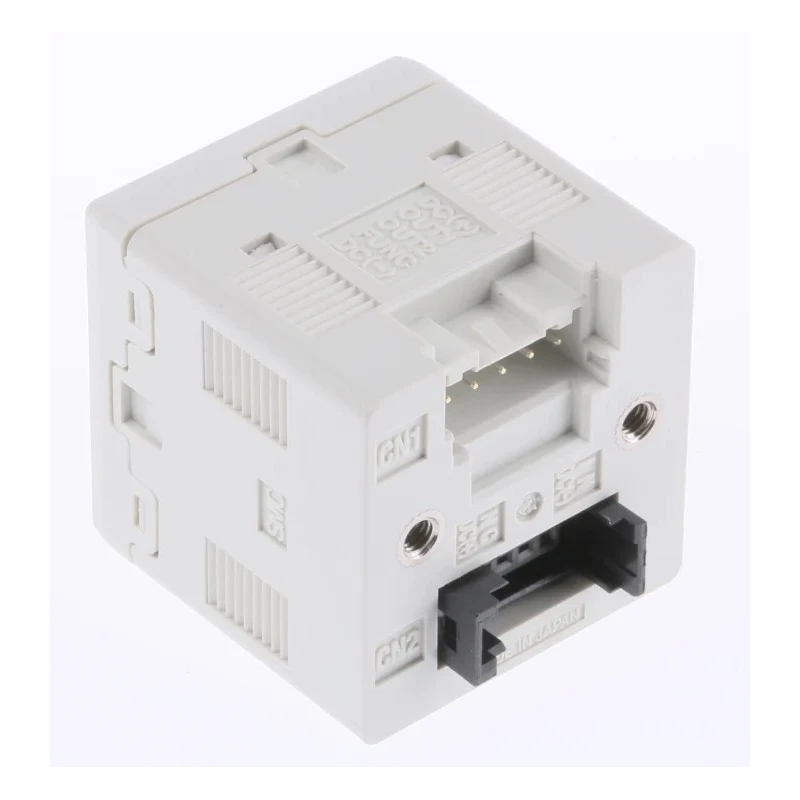

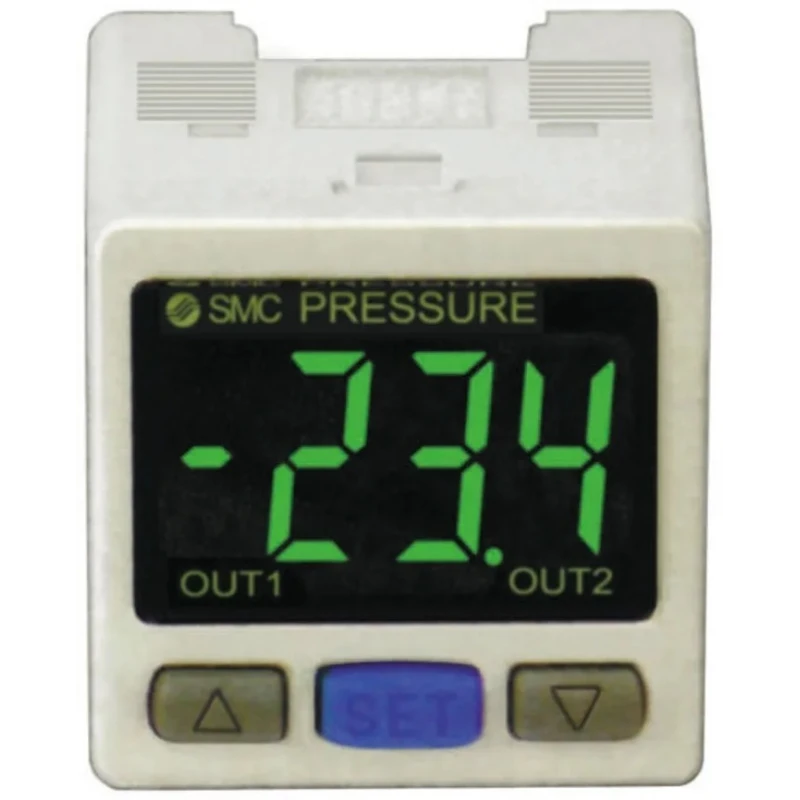

SMC Pressure Sensor Controller PSE304, PNP x 2 Outputs, Digital Display, IP40, 50mA, 12V/24V DC
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 12, 24V dc |
| Display Type | Digital |
| Brand | SMC |
| Current | 50mA |
| Height | 30mm |
| Length | 30mm |
| Model | PSE304 |
| IP Rating | IP40 |
| Width | 31mm |
| Series | PSE300 |
| Maximum Operating Temperature | 50°C |
| Switch output | PNP |
| Minimum Operating Temperature | 0°C |
| Analogue Output | 4 to 20 mA |
| Standards/Approvals | UL, CSA, CE |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 700-7550Brand: SMCManufacturers Part No.: PSE304 |
| Minimum Set Pressure | -101kPa |
| Maximum Set Pressure | 2kPa |
| Number of Switching Outputs | 2 |
| Number of Sensor Inputs | 1 |
Key Features
- Equipped with two PNP switching outputs for reliable control.
- Features a clear, large 3-digit digital LED display.
- Operates on 12V or 24V DC input voltage.
- Rated IP40 for dust and water resistance in controlled environments.
- Supports analogue output from 4 to 20 mA for integration.
- Measurement accuracy of 0.5% FS ±2 digits for precise readings.
- Works in temperature range from 0°C to 50°C for versatile applications.
- Allows vacuum and positive pressure measurement and control.
Product Description
SMC PSE304 Pressure Sensor Controller is designed for accurate measurement and control of pressure in industrial pneumatic applications. This controller features a digital 3-digit LED display that provides easy-to-read pressure values, making it ideal for remote pressure monitoring.
The device incorporates two reliable PNP transistor outputs which allow efficient switching operations in automation systems. It supports an analogue output range of 4 to 20 mA for smooth integration with data acquisition or control systems. The pressure controller supports both vacuum and positive pressure measurements, making it versatile for various industrial uses.
Constructed for durability, the PSE304 has an IP40 ingress protection rating, suitable for environments where dust protection is required without exposure to water jets. The compact size (30 mm length, 31 mm width, and 30 mm height) allows easy panel mounting in control cabinets or instrumentation panels.
Operating voltage options include 12 V DC and 24 V DC to suit different system requirements. Measurement accuracy is rated at 0.5% FS with a ±2 digit tolerance, ensuring precise process control. The device operates reliably within a temperature range of 0°C to 50°C, suitable for typical industrial conditions.
Equipped with two PNP switching outputs for reliable control. Features a clear, large 3-digit digital LED display. Operates on 12V or 24V DC input voltage. Rated IP40 for dust protection. Supports analogue output from 4 to 20 mA for control integration.
Measurement accuracy of 0.5% FS ±2 digits. Compact dimensions: 30 mm x 31 mm x 30 mm. Suitable for operation in 0°C to 50°C temperature range. Vacuum and positive pressure measurement/control capability. Ideal for pneumatic automation and process control systems.
This Pressure Sensor Controller is manufactured in Japan, guaranteeing high-quality standards. It is an essential component for industrial automation, laboratory instrumentation, pneumatic systems, and HVAC applications where precise pressure measurement and control are required.
Explore our selection of pressure sensing and control devices for advanced industrial solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The measurement accuracy of this model is rated at 0.5% FS ±2 digits, ensuring precise readings in various applications.
It operates on 12V or 24V DC input voltage, allowing compatibility with different system requirements.
The unit is rated IP40, providing protection against dust in controlled environments, though it is not suitable for exposure to water jets.
This model is equipped with two PNP switching outputs, which facilitate reliable control in automation systems.
The dimensions of this unit are 30 mm in length, 31 mm in width, and 30 mm in height, making it suitable for panel mounting.
It operates reliably within a temperature range of 0°C to 50°C, suitable for typical industrial conditions.
Yes, it supports an analogue output range of 4 to 20 mA for integration with data acquisition or control systems.
This pressure sensor controller supports both vacuum and positive pressure measurements, making it versatile for various applications.
The controller has a current rating of 50mA, which is essential for its operational requirements.
It complies with UL, CSA, and CE standards, ensuring it meets various safety and quality regulations.
This model features one sensor input, allowing for direct pressure measurement.
The PSE304 is manufactured in Japan, ensuring adherence to high-quality standards.
