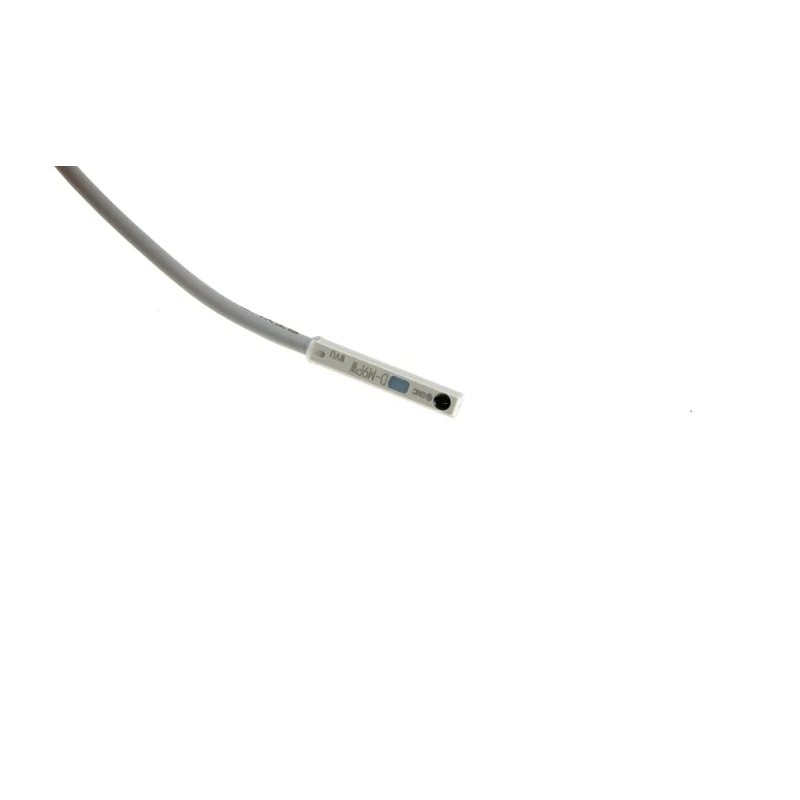

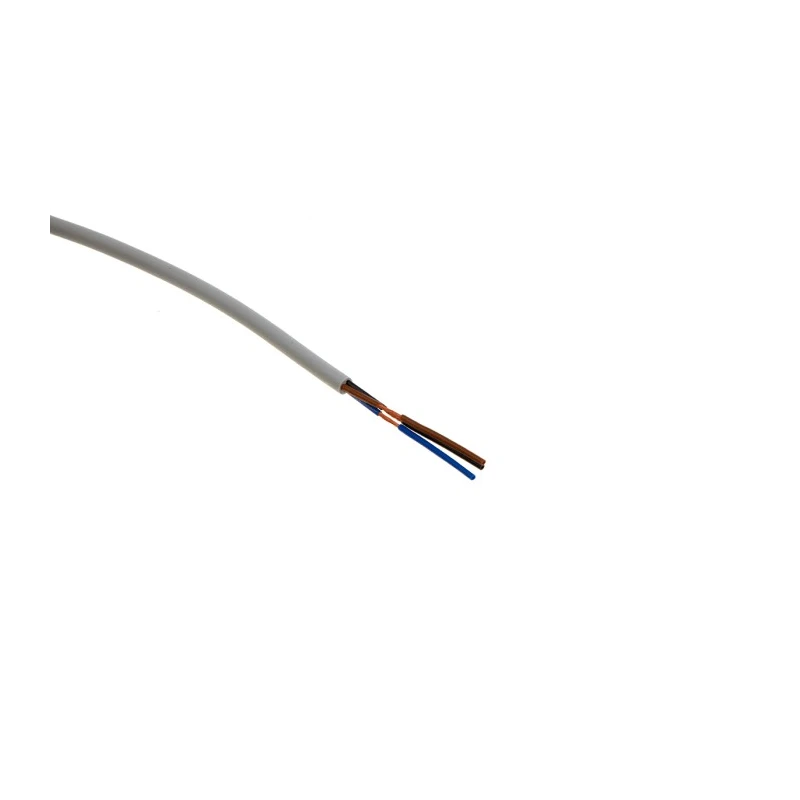

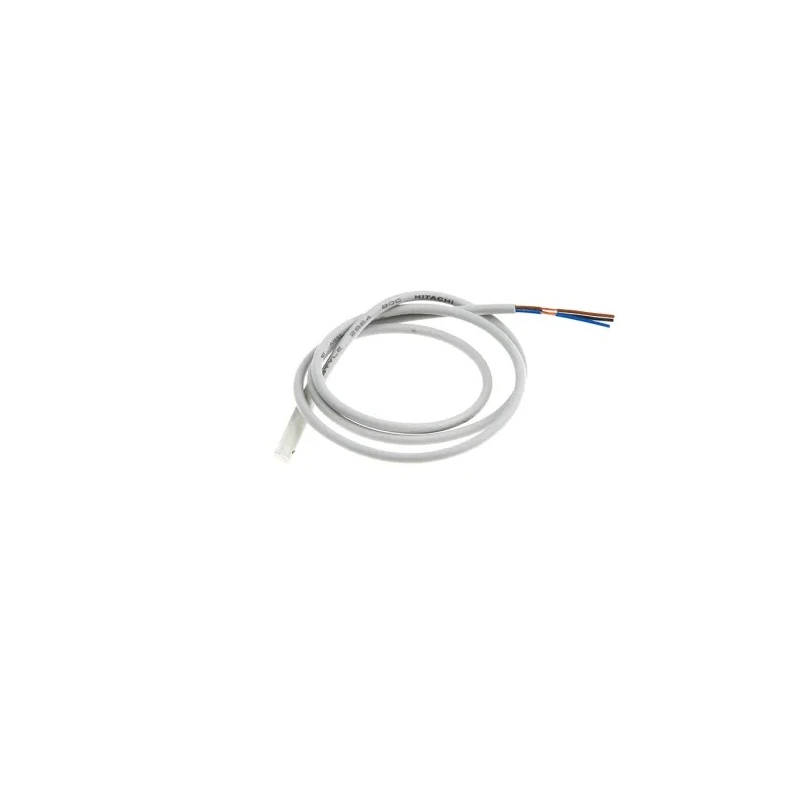

SMC 3-Wire Direct PNP Solid State Switch Pneumatic Switch 28V dc LED Indicator D-M9PW
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 28V dc |
| Brand | SMC |
| Height | 18mm |
| Model | D-M9PW |
| Depth | 46mm |
| IP Rating | IP67 |
| Width | 15.5mm |
| Operation Type | PNP |
| Mount Type | Direct |
| Series | D-M9 |
| Maximum Operating Temperature | 60°C |
| Sub Type | Solid State Switch |
| Minimum Operating Temperature | -10°C |
| Switching Current | 40mA |
| Standards/Approvals | RoHS, IEC 529 |
| Electrical Connection Type | 3-Wire |
| Applicable Load | IC Circuit/Relay/PLC |
Key Features
- Operates at 28V DC with a switching current of 40mA.
- Features an IP67 rating for protection against dust and water ingress.
- Compatible with various rotary actuators including MSQ, CRJ, CDRQ2 series.
- Includes red and green LED indicators for clear operational status.
- Low voltage drop of ≤0.8V at 10 mA enhances system efficiency.
- Durable operation between -10 °C and +60 °C for diverse industrial environments.
- Designed for high reliability using solid state technology.
- Easy integration with control systems using PNP operation type.
Product Description
SMC D-M9PW is a high-performance 3-wire direct PNP solid state pneumatic switch designed for industrial automation and pneumatic control systems. Operating at 28V DC voltage and a switching current capacity of 40mA, this switch facilitates reliable signal control with minimal energy loss due to its low voltage drop of ≤0.8V at 10 mA.
This solid state switch boasts an IP67 rating, ensuring robust protection against dust and water ingress, making it suitable for demanding industrial and manufacturing environments. It is engineered to reliably operate across temperatures ranging from -10 °C to +60 °C, allowing usage in varied climatic and high-temperature conditions.
The D-M9PW model features integrated red and green LED indicators to provide clear visual feedback on operating and optimum positions, enhancing operational monitoring and adjustments. Its compatibility with multiple rotary actuator series such as MSQ, CRJ, CDRQ2, and others adds to its versatility.
Utilizing solid state technology, the switch provides increased reliability and longevity over mechanical alternatives. The PNP operation type simplifies connection and integration with PLCs, IC circuits, and relays, supporting efficient electronic actuator control systems.
Ideal for applications in industrial automation, pneumatic machinery, water treatment systems, and manufacturing processes, this pneumatic switch contributes to precise and durable pneumatic control solutions.
Operates at stable 28V DC with 40mA switching current capacity. Robust IP67 environmental protection rating. Compatible with multiple rotary actuator series. High reliability with solid state technology. Clear dual LED indicators for status monitoring.
Wide operating temperature range from -10 °C to +60 °C. Low voltage drop ensuring energy-efficient performance. Easy integration with electronic control systems via PNP operation. Explore the complete range of pneumatic sensors and switches from SMC to enhance your industrial automation and control system performance on EnvMart.
Explore more products in our Pneumatic Sensors & Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at 28V DC.
It has a switching current capacity of 40mA.
The switch features an IP67 rating, providing protection against dust and water ingress.
It can reliably operate between -10 °C and +60 °C.
It is compatible with various rotary actuator series, including MSQ, CRJ, and CDRQ2.
It utilizes a 3-wire electrical connection type.
The dimensions are 18mm in height, 15.5mm in width, and 46mm in depth.
The D-M9PW supports PNP operation type, facilitating easy integration with control systems.
The switch has a low voltage drop of ≤0.8V at 10mA, enhancing system efficiency by minimizing energy loss.
It complies with RoHS and IEC 529 standards.
It can control loads such as IC circuits, relays, and PLCs.
The country of origin for this model is Japan.
