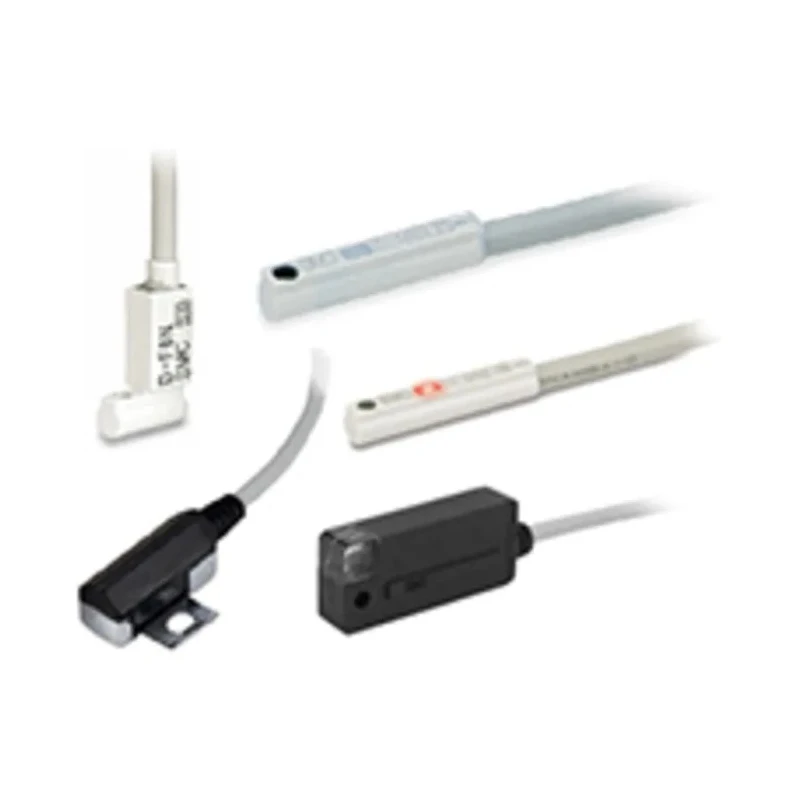

SMC 3-Wire Rail PNP Solid State Pneumatic Cylinder and Actuator Switch 28V dc LED Indicator D-F7PSAPC

SMC D-F7PSAPC 3-Wire Rail PNP Solid State Pneumatic Cylinder and Actuator Switch is engineered for precise and reliable detection of piston positions in pneumatic cylinders and actuators. It operates at 28V dc with built-in LED indication providing clear visual feedback for operational status. This solid state switch uses a PNP transistor output and is designed for rail mounting, facilitating ease of installation in complex pneumatic systems.

The switch is compatible with a range of pneumatic components, including sizes 32 to 63 MHT2 Series Air Gripper, 40 MRQ Series Rotary Actuator (size 32), and size 30 CDRA1 Series Rotary Actuator. Its rugged construction supports operation in industrial environments with an IP67 rating, ensuring resistance to dust and water ingress. It functions reliably within a temperature span of -10°C to 60°C, broadening its application across different operating conditions.

Physical dimensions of 18mm height, 15.5mm width, and 46mm depth allow integration into tight spaces while maintaining robust performance. The switch complies with IEC 529 standards, indicative of its quality and safety assurance in demanding industrial setups. Its applicable load supports IC circuits, relays, and PLC inputs, enabling seamless interface with industrial automation controls.

This product is ideal for use in industrial automation, pneumatic machinery, manufacturing processes, and other environments where precise pneumatic position sensing is critical. Reliable and easy to integrate, the D-F7PSAPC models enhance system efficiency and operational safety.

Package includes the SMC D-F7PSAPC solid state switch with LED indicator compatible with specified pneumatic cylinder and actuator models. The product is manufactured in Japan, reflecting high standards of engineering and quality.

Explore SMC pneumatic sensor solutions at EnvMart to find compatible and complementary automation components for your industrial applications. Designed for rail mounting with a compact 3-wire connection. Features a PNP operation type with solid state switching for precision control.

Includes LED indication for easy status monitoring. Suitable for use with sizes 32 to 63 MHT2 Series Air Gripper and various rotary actuators. Operates within a temperature range of -10°C to 60°C and meets IP67 protection standard.

Constructed to IEC 529 standards ensuring industrial reliability. Compact dimensions with height 18mm, width 15.5mm, and depth 46mm optimize space efficiency. Applicable load compatible with IC circuits, relays, and PLCs for versatile applications.
