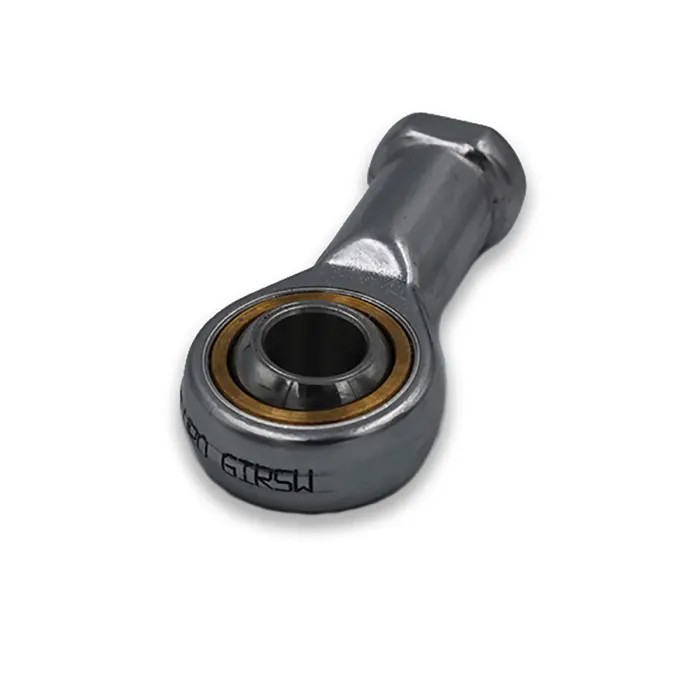

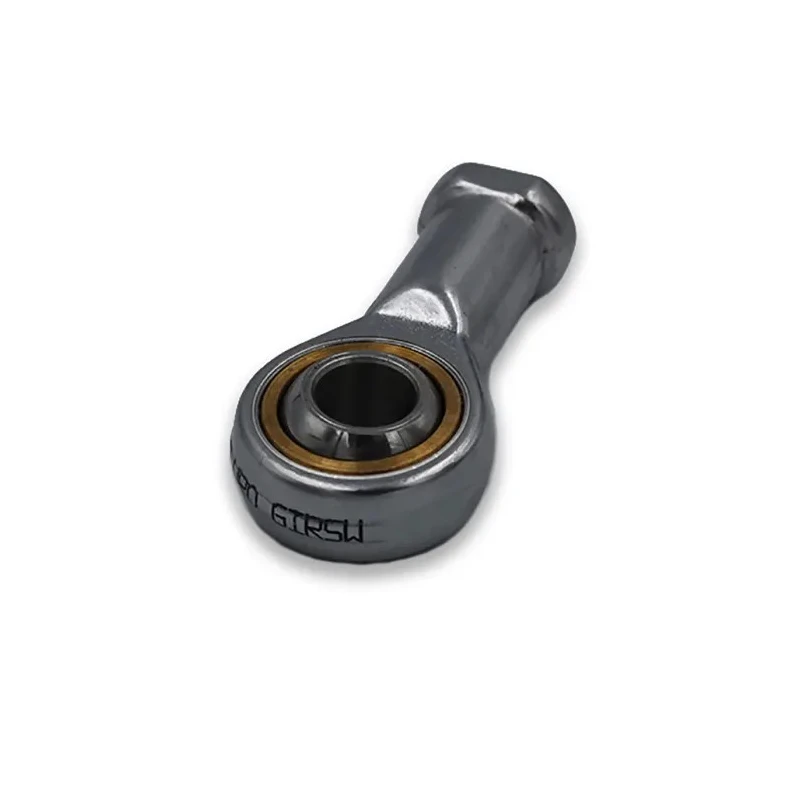

Fluro Stainless Steel Rod End M5 x 0.8 Female, 5mm Bore, Left Hand Thread GILRSW5R

The Fluro GILRSW5R is a high-quality stainless steel rod end featuring an M5 x 0.8 female metric thread and a 5mm bore diameter. It is engineered for use in industrial and mechanical environments that demand reliable performance under both dynamic pressure and tension loads.

This rod end incorporates a corrosion-resistant stainless steel construction, making it highly suitable for operation in harsh or corrosive conditions such as fluid power systems and industrial automation machinery. The model is equipped with a left-hand thread, allowing for specialized mechanical linkage arrangements where reverse orientation is required.

The Fluro GILRSW5R supports substantial load capacities, with a dynamic load rating up to 11.8kN and a static load rating up to 7.5kN. This ensures secure, consistent connection and movement in high-stress mechanical assemblies. The PTFE liner integrated in the bearing delivers smooth articulation throughout the rod end’s range of motion, reducing wear and enhancing longevity in applications with frequent movement.

Its operational temperature range is especially wide, from -50°C to 250°C, making it applicable for both sub-zero and high-temperature settings. At 36mm overall width, this rod end delivers compact mechanical integration while maintaining robust tolerances and strength.

The GILRSW5R is ideal for industrial automation, precision machinery, hydraulic and pneumatic systems, as well as construction equipment where reliable articulation and resistance to corrosion are required. Its left hand thread and metric compatibility allow seamless integration into international systems and upgrades within existing mechanical linkages and assemblies.

Commonly found in high-specification industries, this rod end is also used in equipment such as actuators, control linkages, and motion transfer interfaces. Its stainless steel body and PTFE liner provide consistent low-maintenance operation even under continuous load.

Explore more options and compatible rod end bearings from Fluro and other leading brands in the Rod End Bearing category to match your unique industrial, mechanical, and automation requirements.
